pressure 800LB ANSI standard forged globe valve

Large Image : pressure 800LB ANSI standard forged globe valve

Product Details:

Place of Origin:	Xingtai, China
Brand Name:	PVPT

Payment & Shipping Terms:

Minimum Order Quantity:	10 pcs
Price:	EXW FOB CFR CIF
Packaging Details:	wooden case, pallet or as per customer request
Delivery Time:	30 days after receiving the down payment
Payment Terms:	L/C, T/T, Western Union

Contact Now

Detailed Product Description

Pressure:	800LB

pressure 800LB ANSI standard forged globe valve

Specifications

1.Production Size:1/4"~2"

2.Pressure:150LB/300LB/600LB/800LB/900LB/1500LB

Forged Globe Valve standard:

1.Design Standard:ASME/ANSI B16.34,API602

2.Face to Face:ANSI B16.10

3.Flange Standard:ANSI B16.5

4.Testing Standard:API 598

Forged Globe Valve Material of parts:

1.Body: A105,A182 F11/F22,A182 F304/304L,A182 F316/F316L

2.Bonnet: A105,A182 F11/F22,A182 F304/304L,A182 F316/F316L

3.Stem:2Cr13/SS304/SS316/Carbon Steel

4.Disc: A182 F6A,A182 F304/F304L,A182 F316/316L

5.Gasket:PTFE/Graphite

6.Seat:A 276/420,A182 F304,A182 F304/304L,A182 F316/316L

7.Packing:Graphite

8.Handle: Malleable Iron

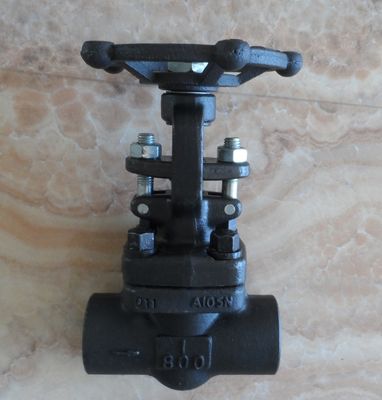

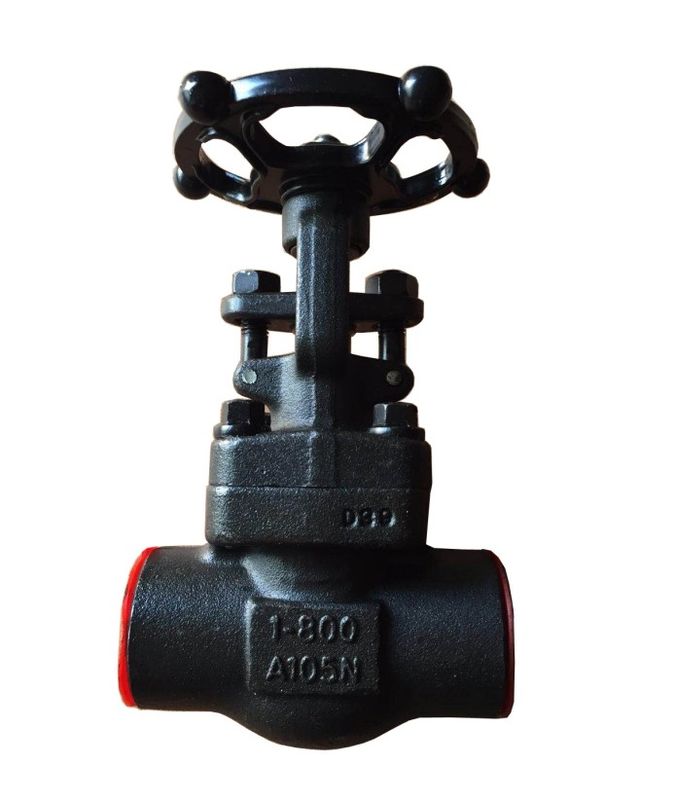

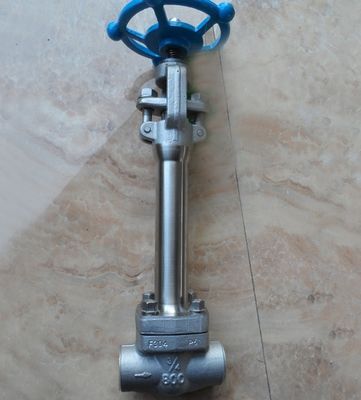

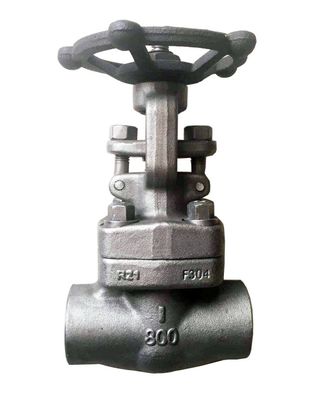

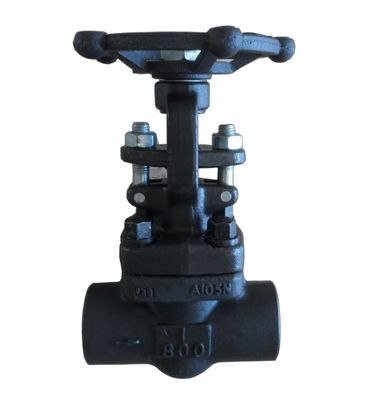

Product show

pressure 800LB ANSI standard forged globe valve 0

Pls note:

Our factory manufacture various types of valves, if any inquiry for valves, pls don’t hesitate to contact Sophia via Email:sophiavalve(at)hbpvpt.com
