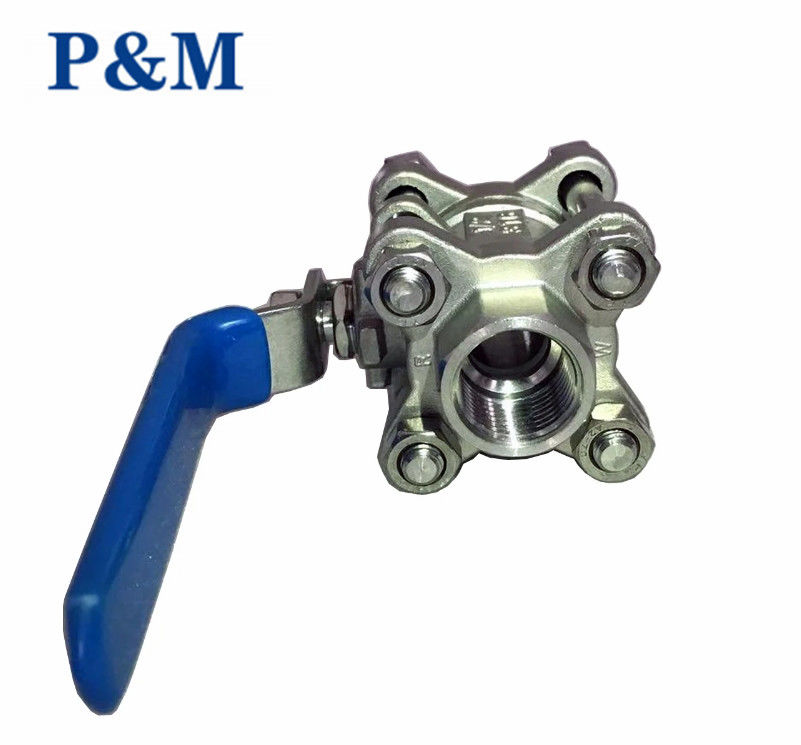

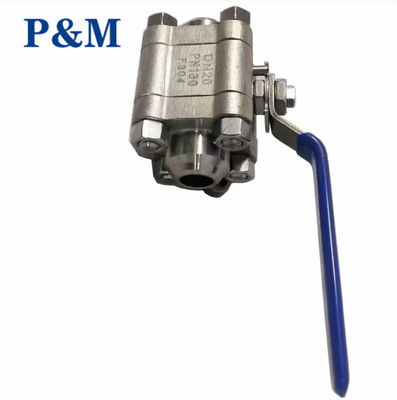

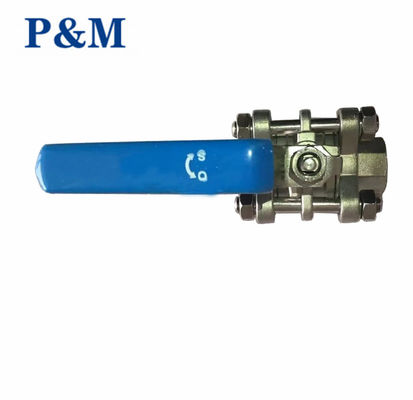

3-pc full port ANSI stainless steel ball valve

Large Image : 3-pc full port ANSI stainless steel ball valve

Product Details:

Place of Origin:	China
Brand Name:	PVPT

Payment & Shipping Terms:

Minimum Order Quantity:	10 pcs
Price:	EXW FOB CFR CIF

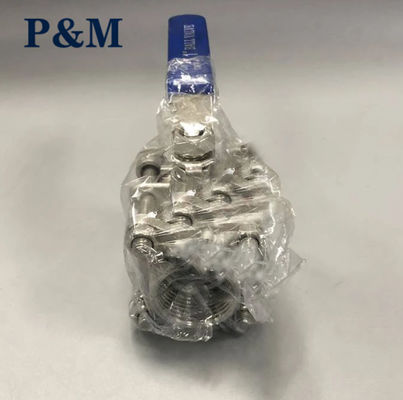

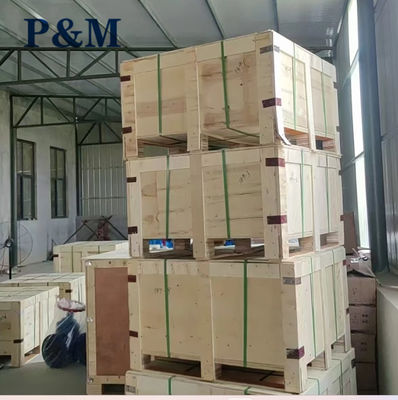

Packaging Details:	wooden case, pallet or as per customer request
Delivery Time:	30 days after receiving the down payment
Payment Terms:	L/C, T/T, Western Union

Contact Now

Detailed Product Description

3-pc full port ANSI stainless steel ball valve

Product show

Specifications

1.Production Size: 1/4"~4".DN15~DN100.

2.Pressure: 1000PSI/PN63.

3.Design Standard: ANSI B16.34

4.Face to Face: ASME B16.10

5.Testing Standard: API 598

6.Body: CF3, CF3M, CF8, CF8M, WCB.

7.Stem: 2Cr13/SS304/SS316.

8.Ball: CF3, CF3M, CF8, CF8M.

9.Packing: PTFE.

10.Seat: PTFE, RPTFE.

11.Washer: SUS304.

12.Handle: SUS304.
