| Place of Origin: | China |
| Brand Name: | PVPT |
| Model Number: | H42X |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | EXW FOB CFR CIF |
| Packaging Details: | wooden cases, pallets or as per customer request |
| Delivery Time: | 30 days after receiving down payment |
| Payment Terms: | L/C, T/T, Western Union |
| Body Material: | GGG50 |
|---|
ANSI H42X GGG50 resilient seal foot valve from Hebei
Due to the difference of connection type, there are threaded foot valves and flanged foot valves.
resilient seal foot valve Standard:
1.Production Size:2”-16” DN50-DN400mm
2.Pressure range:PN0.25,PN6,PN10,PN16,150LB
3.Design Standard:ANSI
4.Flange Standard: ANSI 16.1,EN1092
5.Testing Standard:ISO 5208
resilient seal foot valve main material of parts:
1.Body:Ductile Iron
2.Base: Ductile Iron
3.Stem:2Cr13
4.Spring:SS304
5.Disc:Ductile Iron+EPDM
6.Screen:SS304

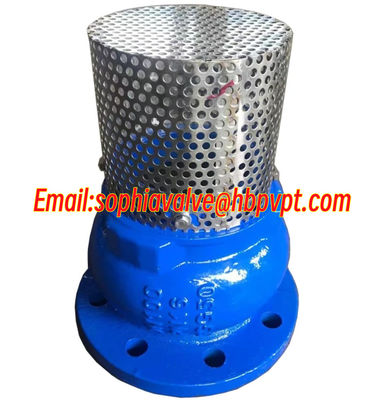

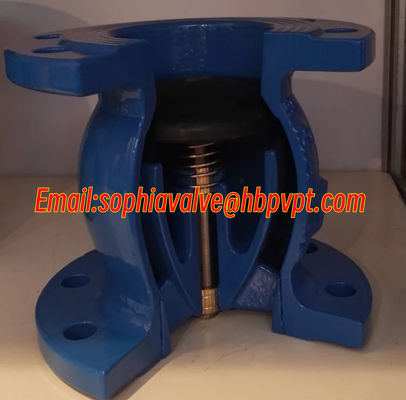

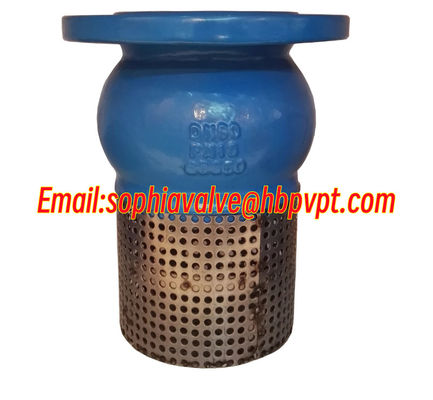

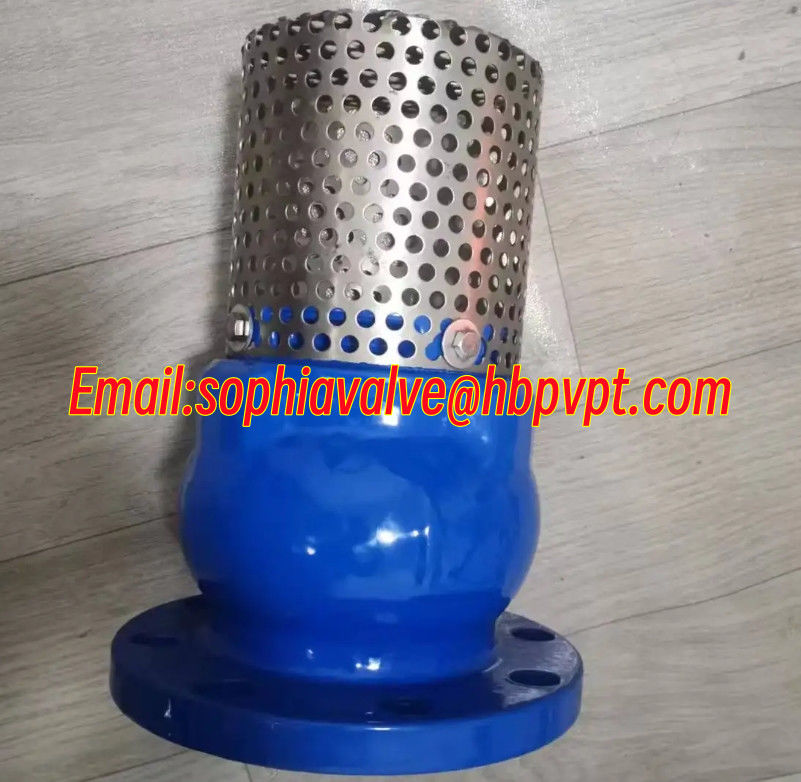

Product show
