| Place of Origin: | China |
| Brand Name: | PVPT |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | EXW FOB CFR CIF |
| Packaging Details: | wooden cases, pallets or as per customer request |
| Delivery Time: | 30 days after receiving down payment |
| Payment Terms: | L/C, T/T, Western Union |
| Body Material: | GGG50 |
|---|

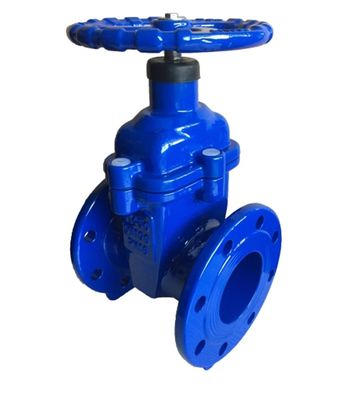

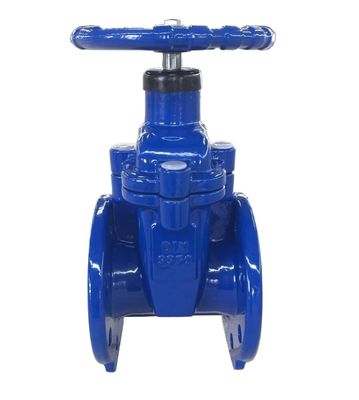

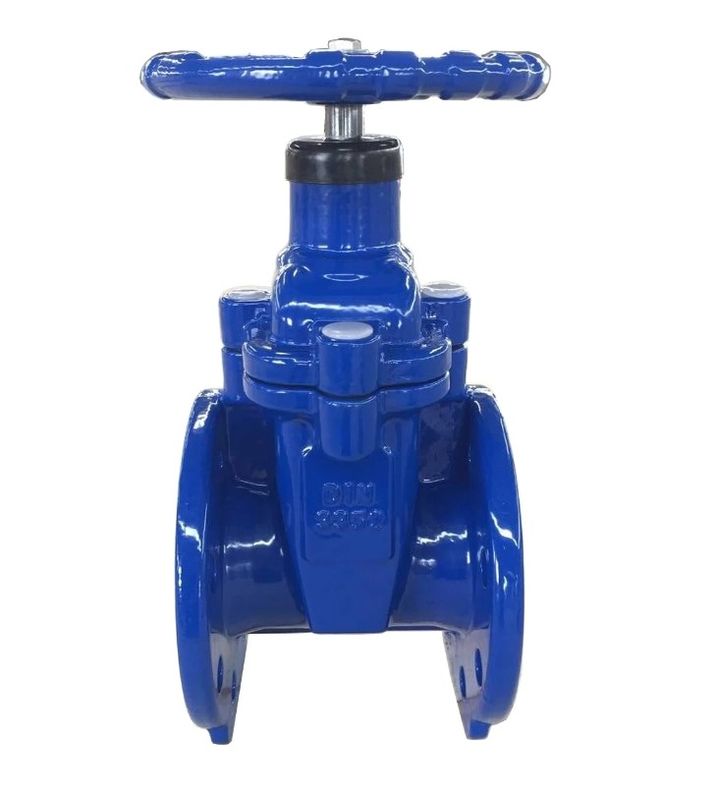

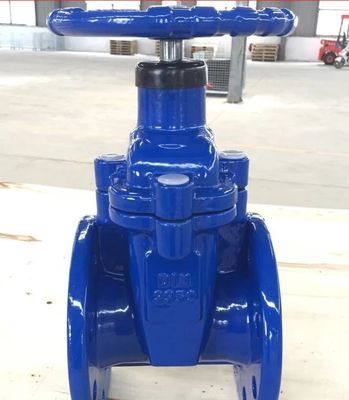

cast iron GGG50 F4 Non-rising stem resilient seal gate valve
The apperance and design of these gate valves are perfece. The service life can reach two years.
Body material of gate valve is cast iron GGG50, F4 is the length of face to face.
Non-rising stem resilient seal gate valve range:
1.Size:DN50-DN1600mm
2.Pressure range:PN10,PN16,PN25
Non-rising stem resilient seal gate valve Standard:
1.Design Standard:DIN3352
2.Face to Face:DIN3202 F4
3.Flange Standard:EN 1092
4.Testing Standard:EN12226
Non-rising stem resilient seal gate valve Main Material of parts:
1.Body:GGG45/GGG50
2.Bonnet:GGG45/GGG50
3.Stem:2Cr13/SS304/SS316/Carbon Steel
4.Stem Nut:brass
5.Disc:GGG45/GGG50
6.Seat:EPDM/NBR/PTFE
7.Handwheel:GGG45/GGG50

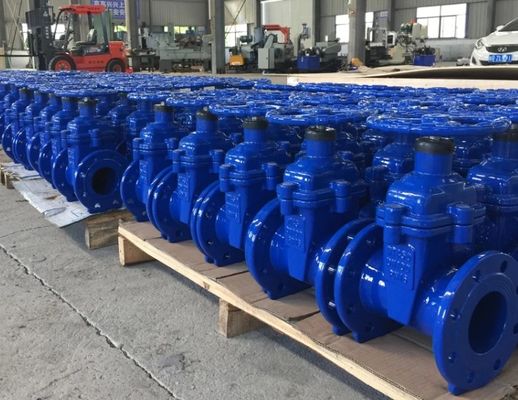

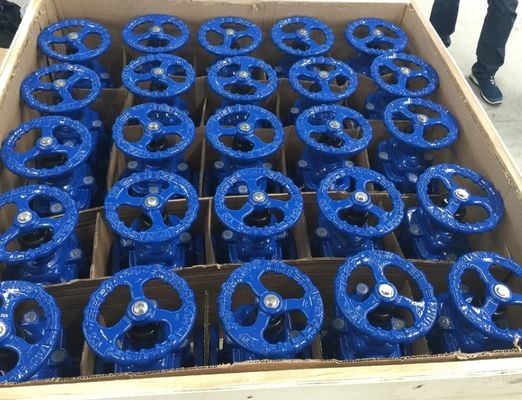

Product show
