| Place of Origin: | China |
| Brand Name: | PVPT |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Packaging Details: | wooden cases, pallets or as per customer request |
| Delivery Time: | 30 days after receiving down payment |
| Payment Terms: | L/C, T/T, Western Union |
| Body Material: | GGG50 | Pressure: | PN10 |
|---|

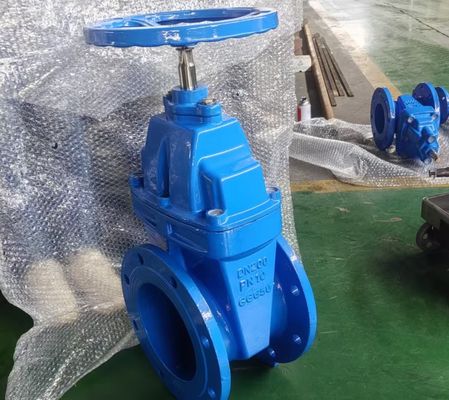

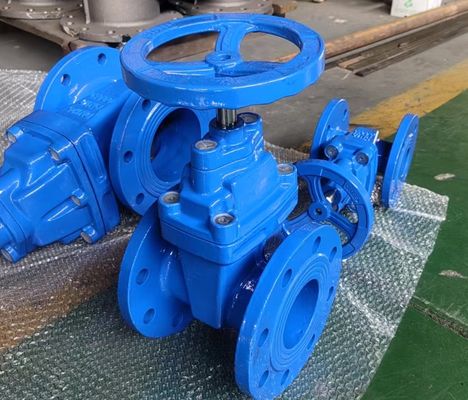

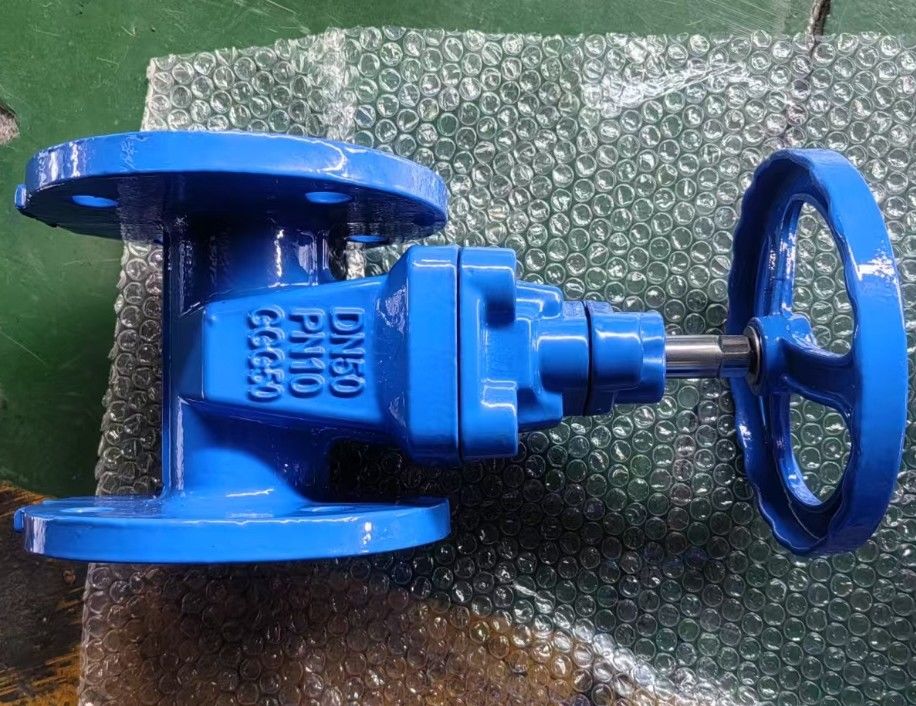

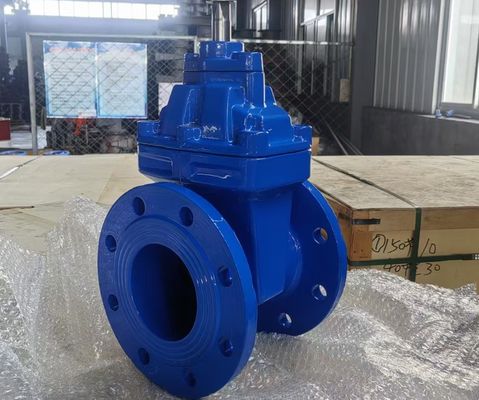

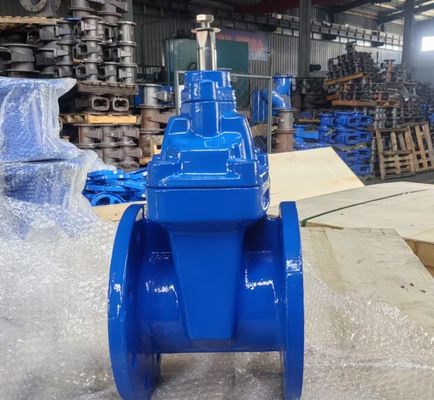

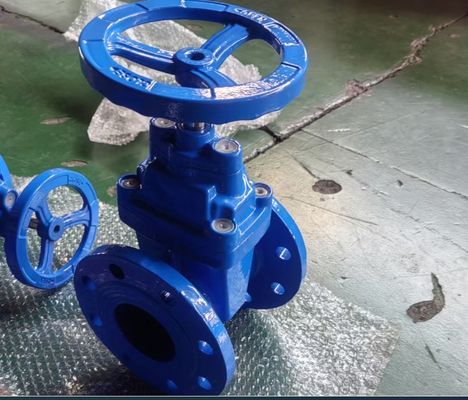

DIN GGG50 Non-rising stem PN10 gate valve
Pawofuou can manufacture various types of valves, such as gate valve, globe valve, butterfly valve, ball valve, foot valve, check valve. If you want to more about our products, pls feel free to contact Sophia.
The prices for valves are reasonable.
Specifications
1.Size:DN50-DN1600mm
2.Pressure range:PN10,PN16,PN25
Non-rising stem Gate Valve Standard:
1.Design Standard:DIN3352
2.Face to Face:DIN3202 F4
3.Flange Standard:EN 1092
4.Testing Standard:EN12226
Non-rising stem Gate Valve Main Material of parts:
1.Body:GGG45/GGG50
2.Bonnet:GGG45/GGG50
3.Stem:2Cr13/SS304/SS316/Carbon Steel
4.Stem Nut:brass
5.Disc:GGG45/GGG50
6.Seat:EPDM/NBR/PTFE
7.Handwheel:GGG45/GGG50
Product show
