| Place of Origin: | CHINA |
| Brand Name: | PVPT |
| Model Number: | 2”-40” DN50-DN1000 |
| Minimum Order Quantity: | 10 pcs |
|---|---|
| Price: | EXW FOB CFR CIF |
| Packaging Details: | wooden case, pallet or as per customer request |
| Delivery Time: | 30 days after receiving the down payment |
| Payment Terms: | L/C, T/T |
ANSI 125LB ASTM A126B cast iron gate valve
Specifications:
1.Size :2”-40” DN50-DN1000mm
2.Pressure :125LB,150LB
3.Desigh standard:MSS SP-70
4.Face to face:ANSI B16.10
5.flange standard:ANSI B16.1
6.Inspection and test:MSS SP-70,API 598
Materials of main construction:
1.Body:ASTM A126B
2.Bonnet:ASTM A126B
3.Stem:2Cr13/SS304/SS316/Carbon Steel
4.Stem nut:brass
5.Seat:Bronze B62/Brass
6.Disc:ASTM A126B
7.Seat:Bronze B62/Brass
8.Handwheel:ASTM A536 65-45-12

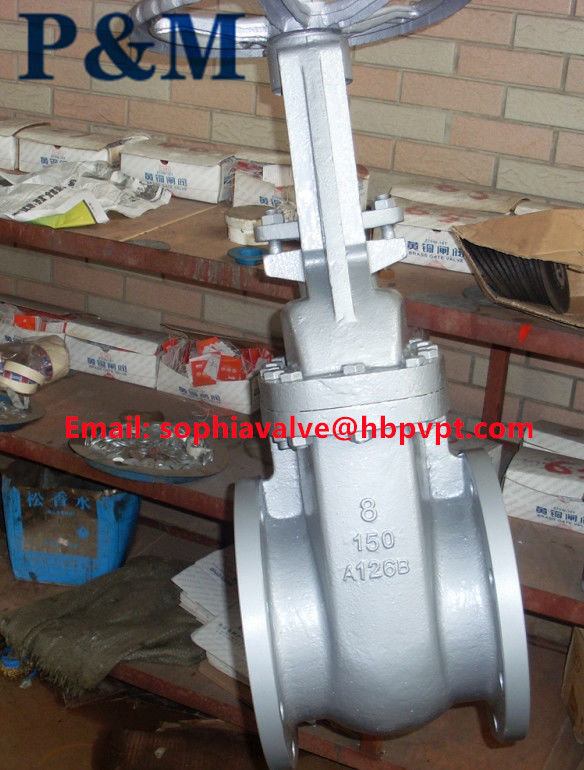

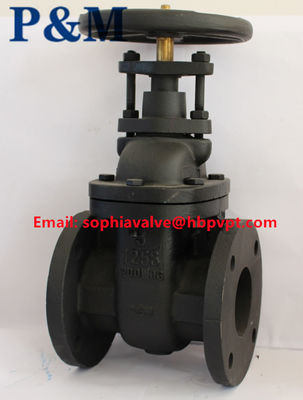

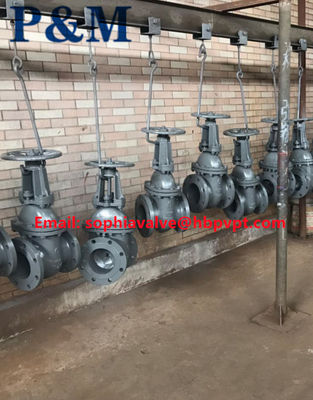

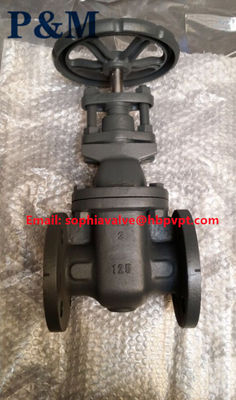

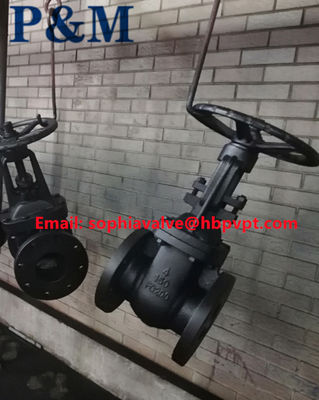

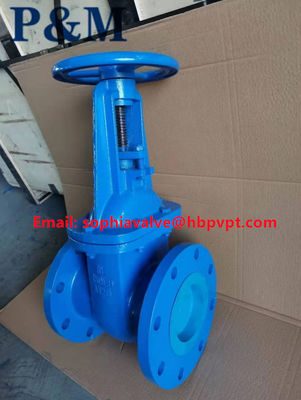

Pictures of cast iron gate valve
