| Place of Origin: | CHINA |
| Brand Name: | PVPT |
| Minimum Order Quantity: | 10 pcs |
|---|---|
| Price: | EXW FOB CFR CIF |
| Packaging Details: | wooden case, pallet or as per customer request |
| Delivery Time: | 30 days after receiving the down payment |
| Payment Terms: | L/C, T/T |
| Desigh Standard: | JIS |
|---|

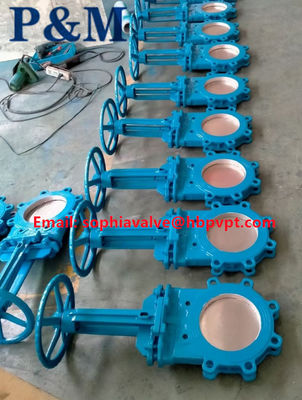

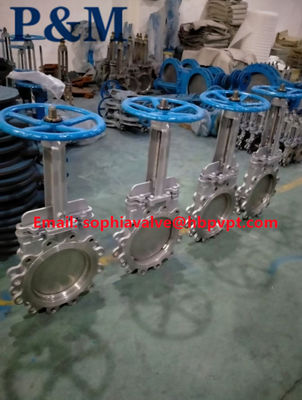

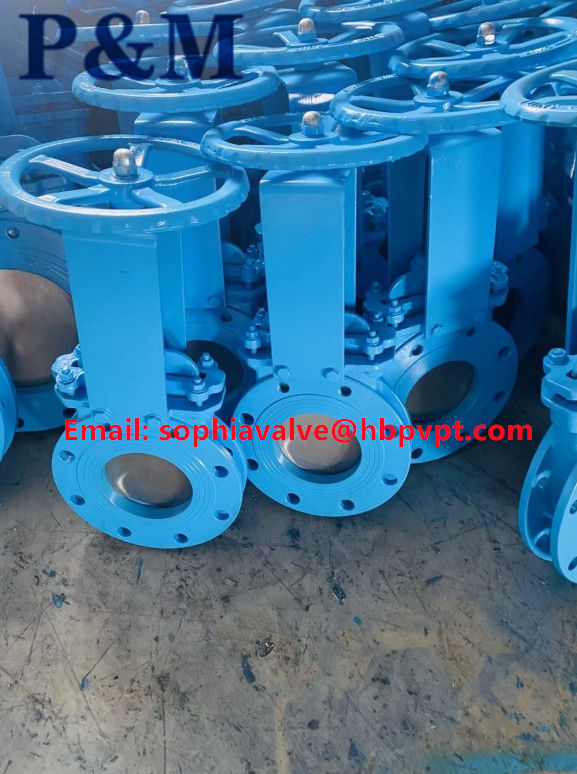

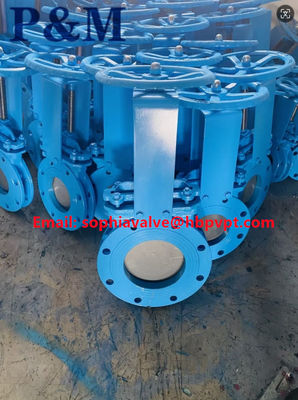

JIS standard cast steel knife gate valve
Specification
1.Size:2”-24” DN50-DN600mm
2.Pressure range:10k
3.Design Standard:JIS
4.Face to Face:JIS
5.Flange Standard:JIS B2212
6.Testing Standard:KS B 2304
Main material of parts:
1.Body: SCS13A/SCS14A
2.Stem:2Cr13/SUS304/SUS316
3.Stem Nut:brass
4.Seal Ring:NBR/EPDM/PTFE
5.Disc:SUS304/SUS316
6.Packing:PTFE
7.Hand wheel:FC 250/FCD450
If you want to know more about knife gate valves, pls feel free to contact Sophie.
