| Brand Name: | PVPT |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | EXW FOB CFR CIF |
| Packaging Details: | wooden case, pallet or as per customer request |
| Delivery Time: | 30 days after receiving the down payment |
| Payment Terms: | L/C, T/T, Western Union |
| Material: | CF8 |
|---|
stainless steel CF8 metal seal knife gate valve
Specifications
1.Production Size:2”-24” DN50-DN600mm
2.Pressure range:10k
Standard:
1.Design Standard:JIS
2.Face to Face:JIS
3.Flange Standard:JIS B2212
4.Testing Standard:KS B 2304
Main material of parts:
1.Body: SCS13A/SCS14A CF8
2.Stem:2Cr13/SUS304/SUS316
3.Stem Nut:brass
4.Seal Ring:NBR/EPDM/PTFE
5.Disc:SUS304/SUS316
6.Packing:PTFE
7.Hand wheel:FC 250/FCD450

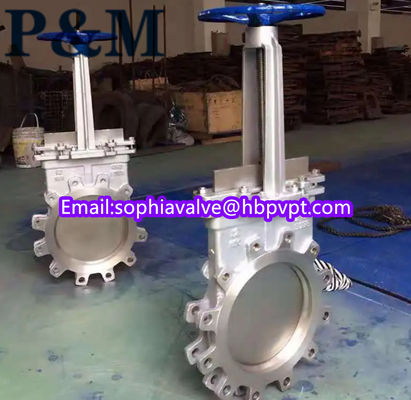

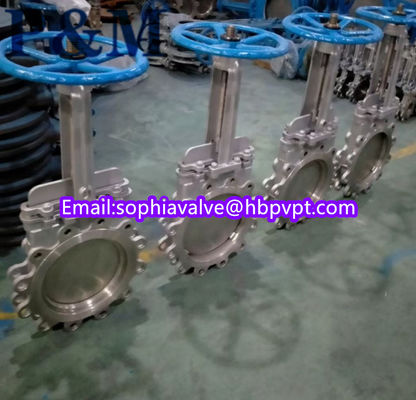

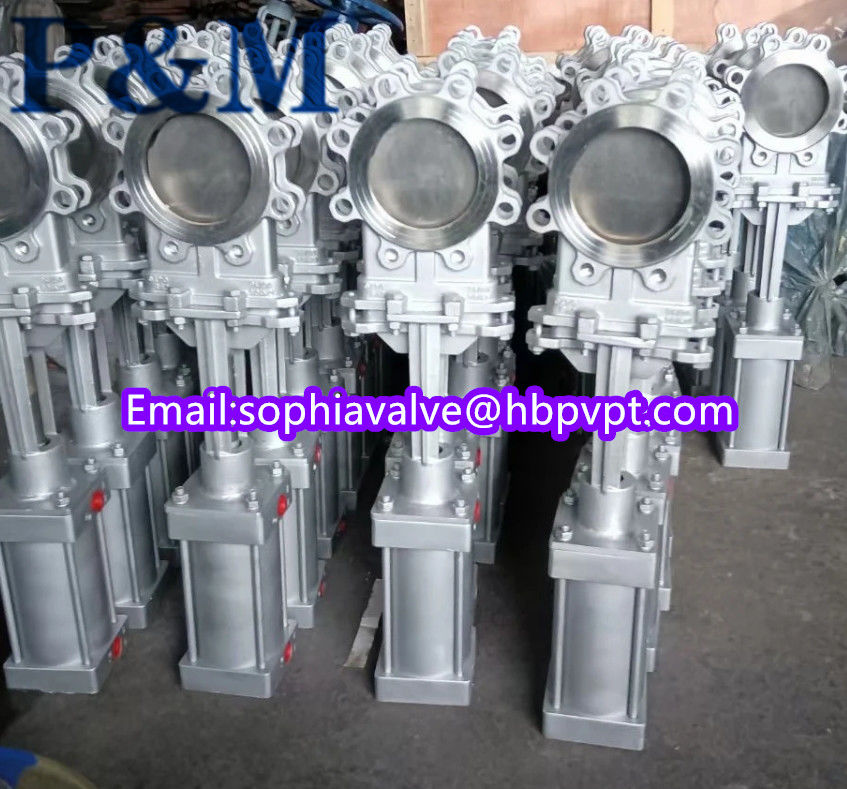

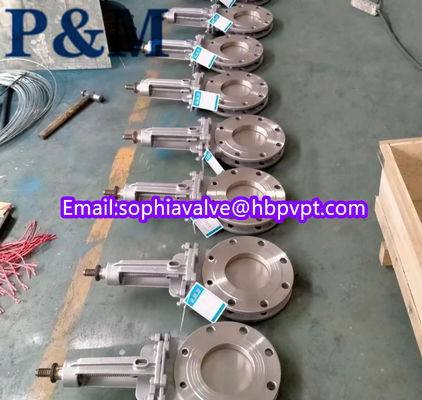

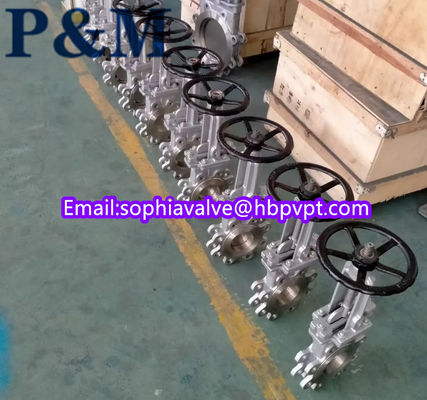

Product show
