| Place of Origin: | China |
| Brand Name: | PVPT |
| Minimum Order Quantity: | 10 pcs |
|---|---|
| Price: | EXW FOB CFR CIF |
| Packaging Details: | wooden case, pallet or as per customer request |
| Delivery Time: | 30 days after receiving the down payment |
| Payment Terms: | L/C, T/T |

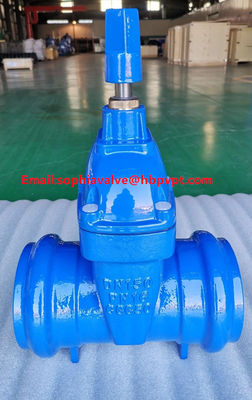

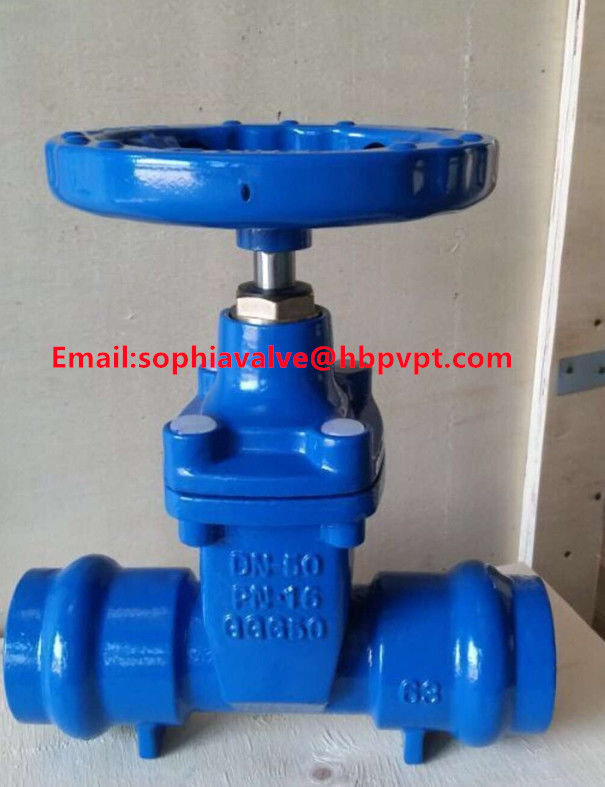

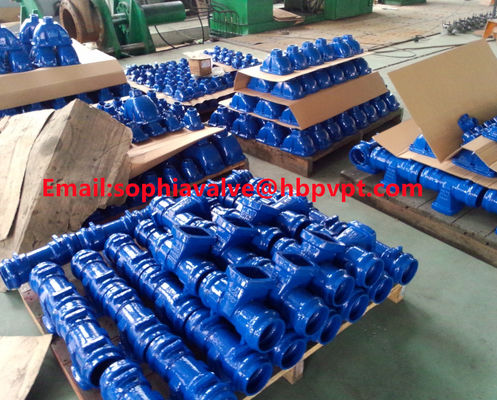

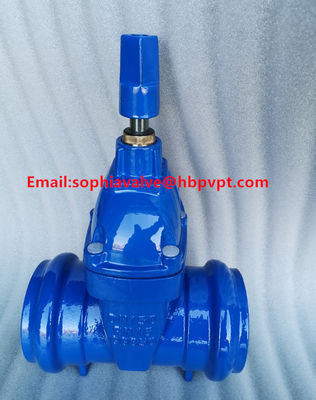

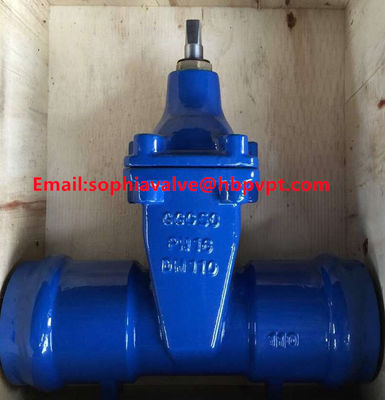

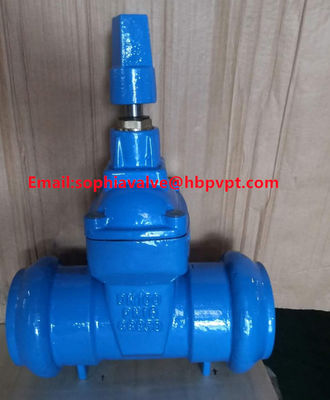

DIN PN16 GGG50 socket cast iron gate valve
Specifications
1.Size:2"~12"
2.Pressure:PN16
Standard:
1.Design Standard:DIN3352
2.Face to Face:DIN3202 F5
3.Flange Standard:EN1092
4.Testing Standard:EN12226
Material of parts:
1.Body:GGG50
2.Bonnet:GGG50
3.Stem:2Cr13/SS304/SS316/Carbon Steel
4.Stem Ring:PTFE
5.Disc:GGG50
6.Seat:EPDM/NBR
7.Gasket:EPDM
8.Handwheel:GGG40/GGG50
Product pictures
