| Place of Origin: | China |
| Brand Name: | PVPT |
| Minimum Order Quantity: | 10 pcs |
|---|---|
| Price: | EXW FOB CFR CIF |
| Packaging Details: | wooden case, pallet or as per customer request |
| Delivery Time: | 30 days after receiving the down payment |
| Payment Terms: | L/C, T/T |
| Size: | 24 Inch | Material: | WCB |
|---|---|---|---|
| Pressure: | 300LB |

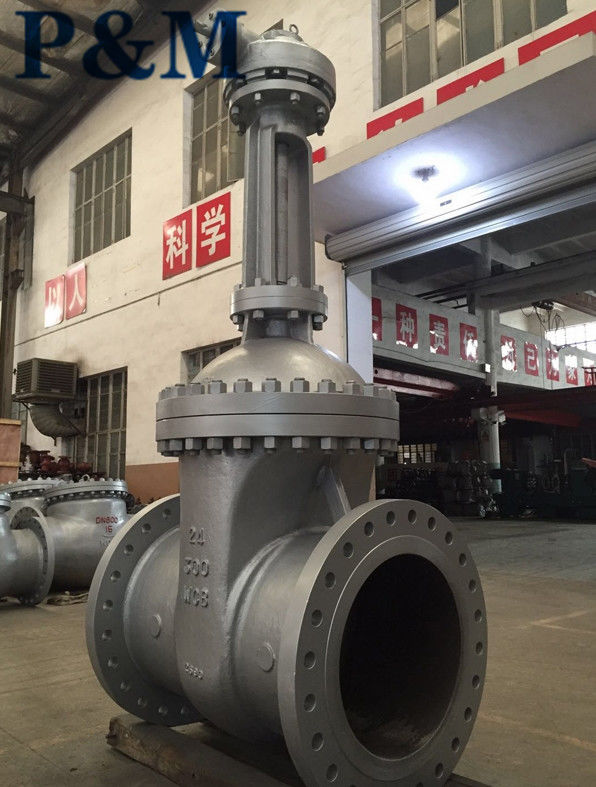

24 inch 300LB WCB cast steel gate valve
Specifications
1.Production Size:24 inch
2.Pressure:150LB,300LB
3.Design Standard:API600,API6D
4.Face to Face:ASME B16.34
5.Flange Standard:ASME B16.10
6.Testing Standard:ASME B16.25
Materials of main parts:
1.Body:ASTM A216 WCB,A351 CF8,A351 CF8M
2.Bonnet: ASTM A216 WCB,A351 CF8,A351 CF8M
3.Stem:2Cr13,SS304,SS316,Carbon Steel
4.Stem Nut:brass,Ductile iron
5.Disc:ASTM A216 WCB
6.Seat:13Cr13,Stellite
7.Handwheel:GGG45/GGG50

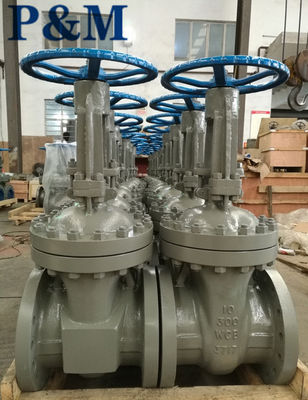

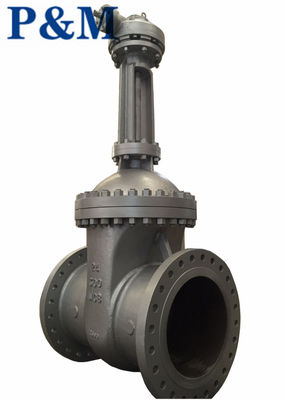

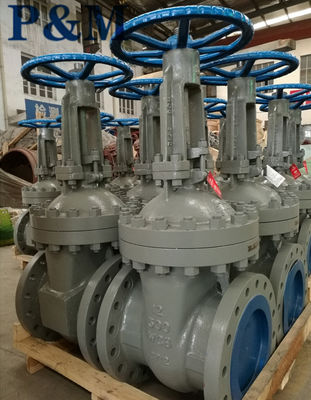

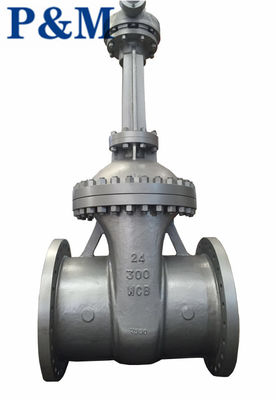

Product show
