| Place of Origin: | China |
| Brand Name: | PVPT |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | EXW FOB CFR CIF |
| Packaging Details: | wooden case, pallet or as per customer request |
| Delivery Time: | 30 days after receiving the down payment |
| Payment Terms: | L/C, T/T |
| Desigh Standard: | BS5153 |
|---|
BS5153 cast iron swing check valve
BS5153 is the standard for cast iron check valves for general purposes.
If you have requirement for valves under other manufacture standard, pls email Sophia at sophiavalve(at)hbpvpt.com.
Specifications
1.Size:2”-24” DN50-DN600mm
2.Pressure range:PN6,PN10,PN16
3.Design Standard:BS5153
4.Face to Face:BS5153
5.Flange Standard:EN 1092-2
6.Testing Standard:ISO 5208
Main material of parts:
1.Body:EN-GJL-250/GGG50
2.Bonnet:EN-GJL-250/GGG50
3.Stem:2Cr13/SS304/SS316/Carbon Steel
4.Stem Nut:SS201/brass
5.Disc:EN-GJL-250/GGG50
6.Seat:Bronze,Brass
7.Bonnet Gasket:Graphite
8.Hanger:EN-GJS-5007
9.Hanger pin:Stainless Steel

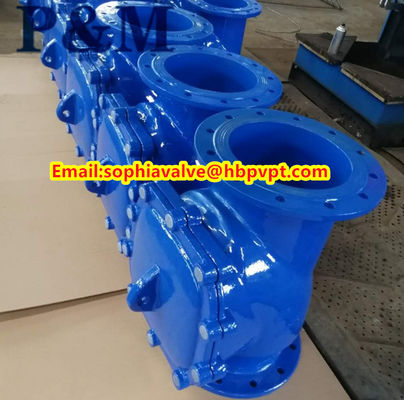

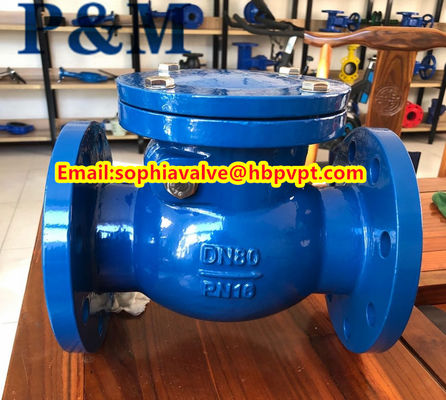

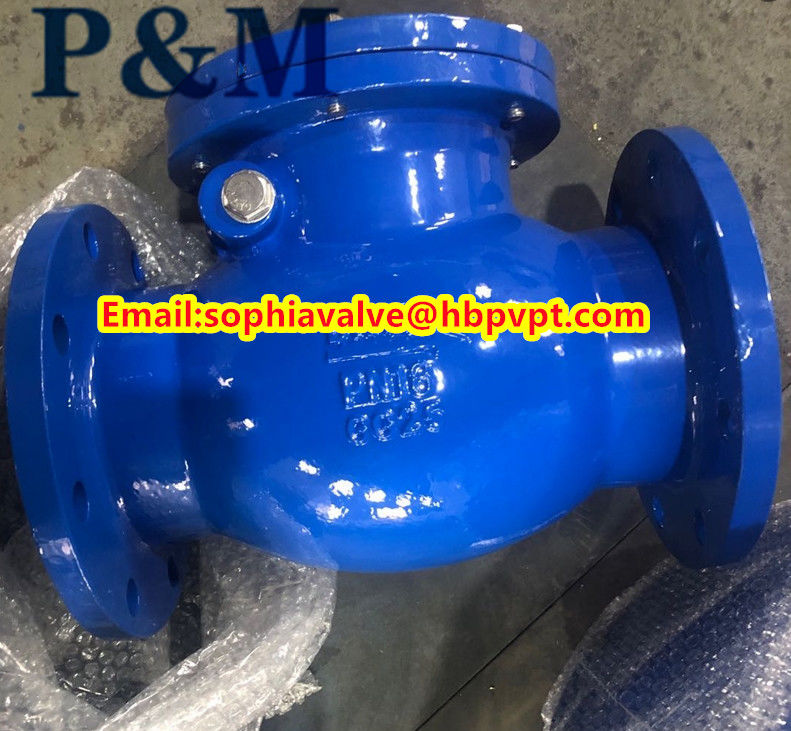

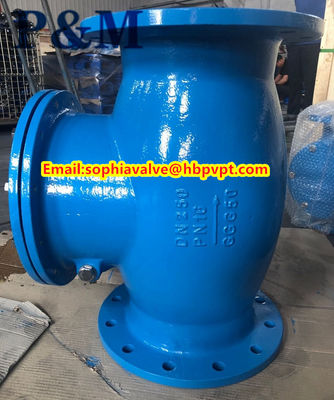

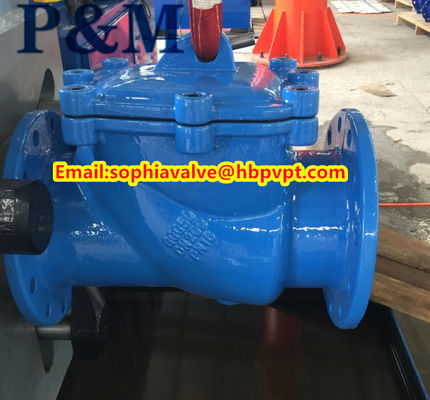

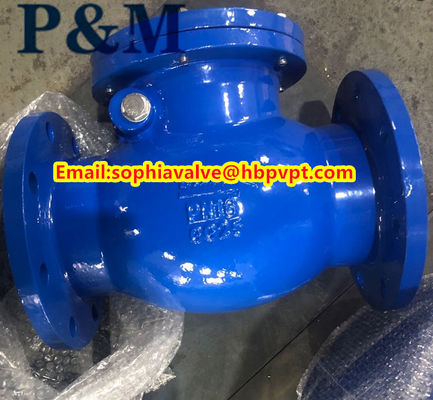

Product show
