| Place of Origin: | China |
| Brand Name: | PVPT |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | EXW FOB CFR CIF |
| Packaging Details: | wooden cases, pallets or as per customer request |
| Delivery Time: | 30 days after receiving down payment |
| Payment Terms: | L/C, T/T, Western Union |
| Body Material: | GGG50 |
|---|
GGG50 cast iron resilient seal check valve
These check valves are manufactured according to DIN standard.
If you're interested in our products, pls email Sophia.
Specifications
GGG50 cast iron resilient seal check valve range:
1.Production Size:2”-24” DN50-DN600mm
2.Pressure range:PN10,PN16
GGG50 cast iron resilient seal check valve Standard:
1.Design Standard:DIN
2.Face to Face:DIN3202 F6
3.Flange Standard:EN 1092-2
4.Testing Standard:ISO 5208
GGG50 cast iron resilient seal check valve main material of parts:
1.Body:GGG50
2.Bonnet:GGG50
3.Stem:2Cr13/SS304/SS316/Carbon Steel
4.Stem Nut:brass
5.Disc:EN-GJL-250
6.Seat:Bronze,Brass
7.Hanger:EN-GJS-5007
8.Hanger pin:Stainless Steel
9.Cover Gasket:Graphite

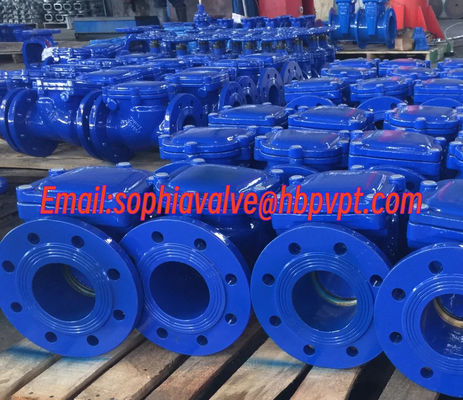

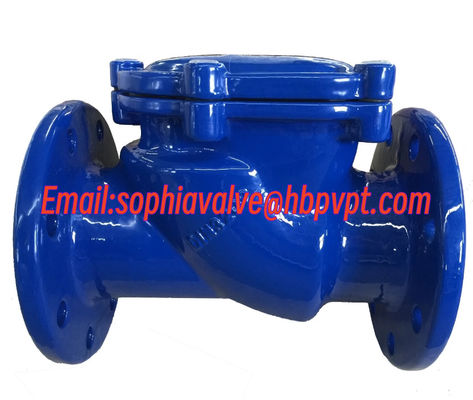

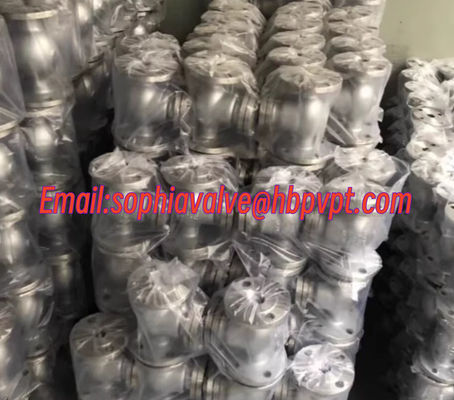

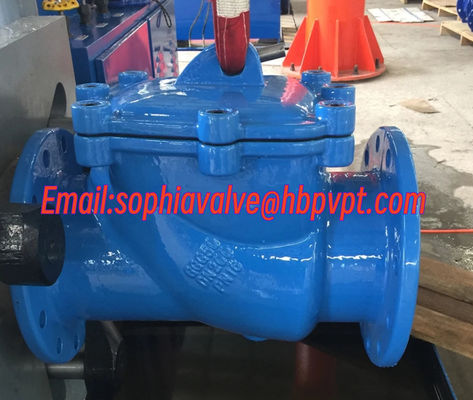

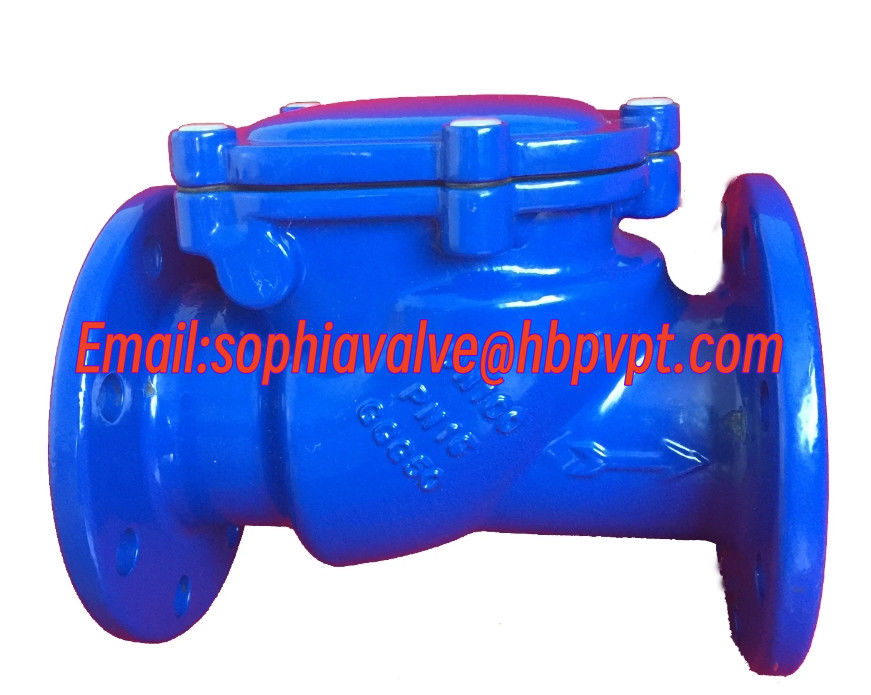

Product show
Contact Person: Ms. Sophia Liu
Tel: +86 15931062270
