| Place of Origin: | China |
| Brand Name: | PVPT |
| Minimum Order Quantity: | 10 pcs |
|---|---|
| Price: | EXW FOB CFR CIF |
| Packaging Details: | wooden case, pallet or as per customer request |
| Delivery Time: | 30 days after receiving the down payment |
| Payment Terms: | L/C, T/T |
| Pressure: | 150LB |
|---|
ANSI 150lb cast steel forged gate valve
Specifications
1.Production Size:1/4"~2"
2.Pressure:150LB
Standard:
1.Design Standard:ASME/ANSI B16.34,API602
2.Face to Face:ANSI B16.10
3.Flange Standard:ANSI B16.5
4.Testing Standard:API 598
Material of parts:
1.Body: A105,A182 F11/F22,A182 F304/304L,A182 F316/F316L
2.Bonnet: A105,A182 F11/F22,A182 F304/304L,A182 F316/F316L
3.Stem:2Cr13/SS304/SS316/Carbon Steel
4.Disc: A182 F6A,A182 F304/F304L,A182 F316/316L
5.Gasket:PTFE/Graphite
6.Seat:A 276/420,A182 F304,A182 F304/304L,A182 F316/316L
7.Packing:Graphite

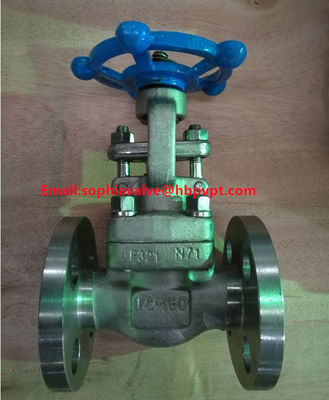

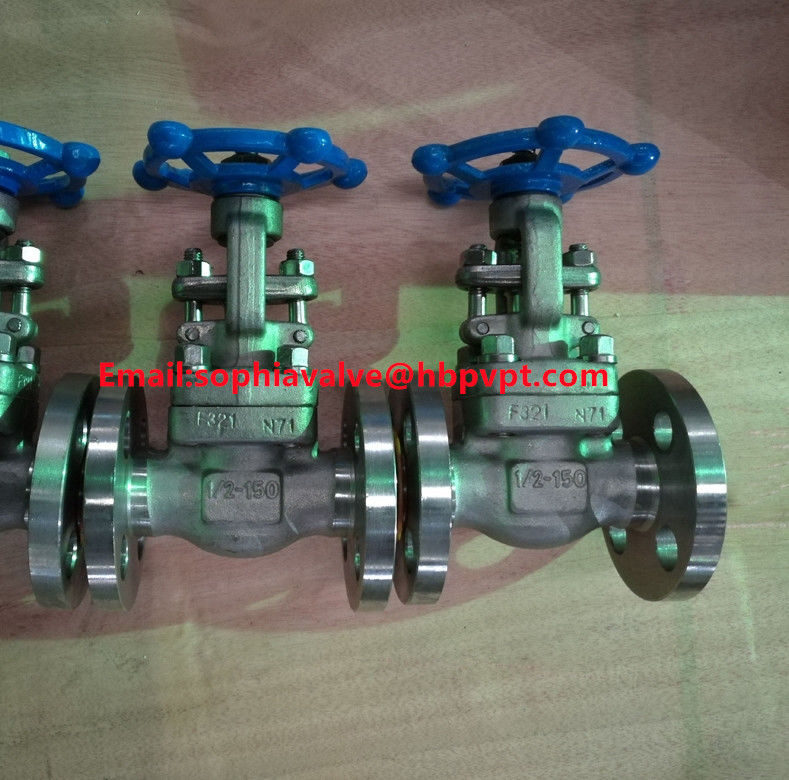

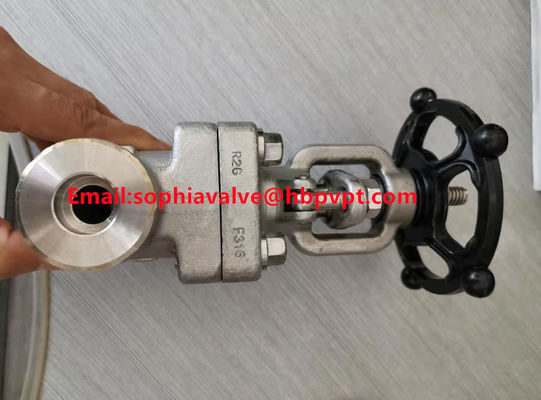

Product pictures
Contact Person: Ms. Sophia Liu
Tel: +86 15931062270
