| Place of Origin: | China |
| Brand Name: | PVPT |
| Minimum Order Quantity: | 10 pcs |
|---|---|
| Price: | EXW FOB CFR CIF |
| Packaging Details: | wooden case, pallet or as per customer request |
| Delivery Time: | 30 days after receiving the down payment |
| Payment Terms: | L/C, T/T |
| Pressure: | 150LB | Material: | CF8M |
|---|
150lb CF8M stainless steel cast steel gate valve
Specifications
1.Production Size:1 1/2"~20".DN40~DN500
2.Pressure:150LB
3.Design Standard:ASME B16.34,API600,API6D
4.Face to Face:ASME B16.10
5.Flange Standard:ASME B16.5,ASME B16.47
6.Testing Standard:API 598
Main material of parts:
1.Body:CF3,CF3M,CF8,CF8M
2.Bonnet:CF3,CF3M,CF8,CF8M
3.Stem:2Cr13/SS304/SS316/Carbon Steel
4.Stem Nut:brass,bronze
5.Disc:CF3,CF3M,CF8,CF8M
6.Packing:Graphite,PTFE
7.Seat:CF3,CF3M,CF8,CF8M
8.Handwheel:ASTM A536 65-45-12

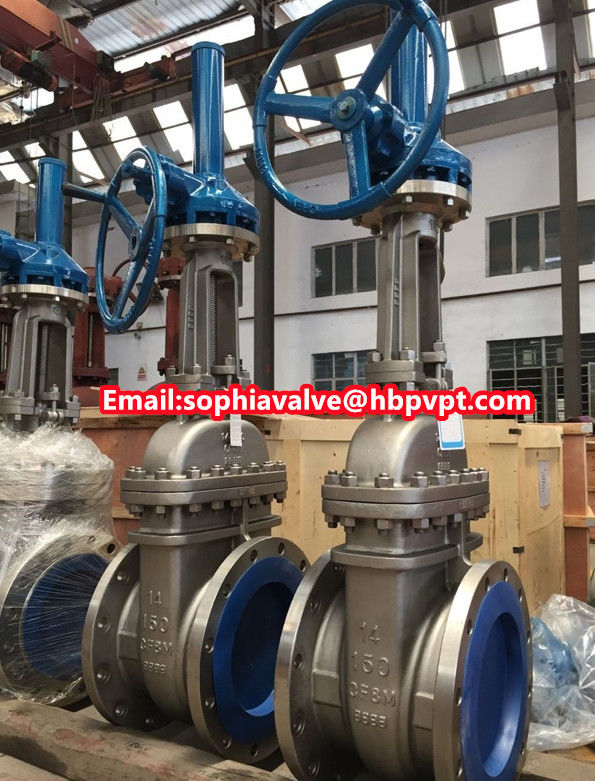

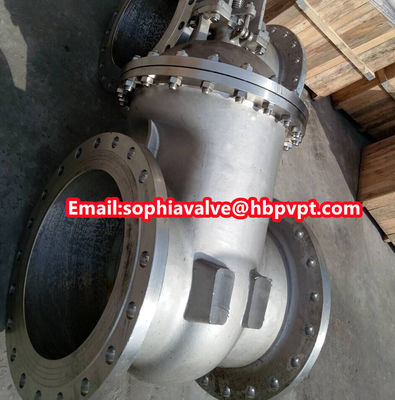

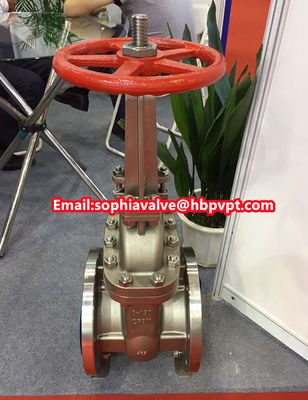

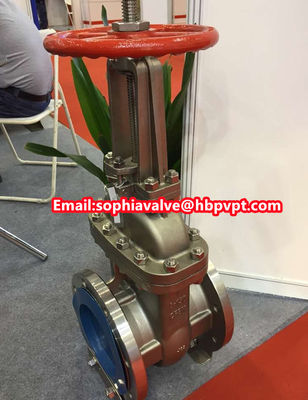

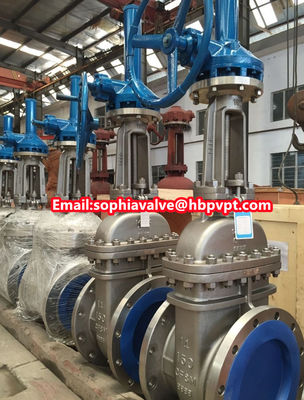

Product show
Contact Person: Ms. Sophia Liu
Tel: +86 15931062270
