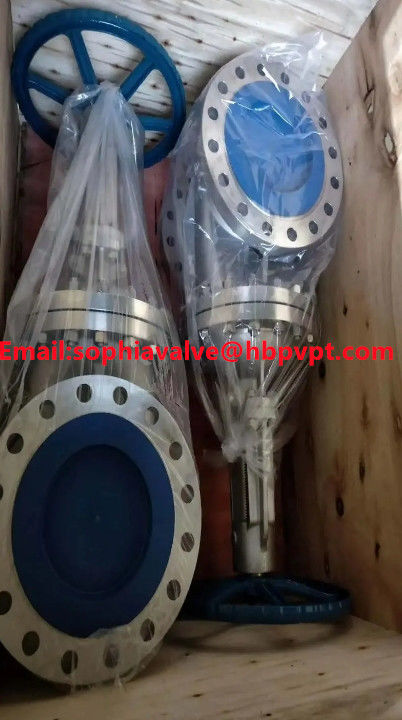

| Packaging Details: | wooden case, pallet or as per customer request |
| Delivery Time: | 30 days after receiving the down payment |
| Payment Terms: | L/C, T/T |
Stainless steel gate valve CF8 API standard
Our factory is located in Hebei Province, China.
Welcome to visit at any time you like.
Specification
1.Production Size: 1 1/2"~20". DN40~DN500.
2.Pressure Range: 150LB, 300LB, 600LB, 900LB.
3.Design Standard: API600, API6D.
4.Face to Face: ASME B16.34.
5.Flange Standard: ASME B16.10.
6.Testing Standard: ASME B16.25.
Materials of each part
1.Body: CF3, CF3M, CF8, CF8M.
2.Bonnet: CF3, CF3M, CF8, CF8M.
3.Stem: 2Cr13/SS304/SS316/carbon steel.
4.Stem Nut: brass.
5.Disc: CF3, CF3M, CF8, CF8M.
6.Packing: PTFE.
7.Seat: CF3, CF3M, CF8, CF8M.
8.Handwheel: ASTM A536 65-45-12.

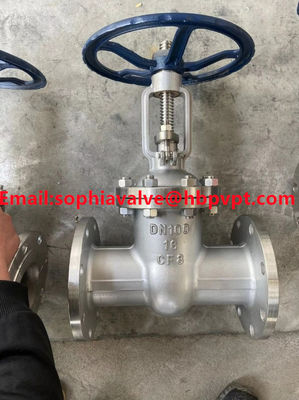

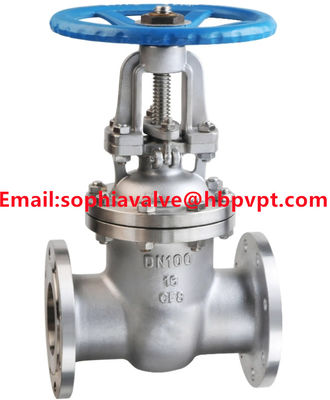

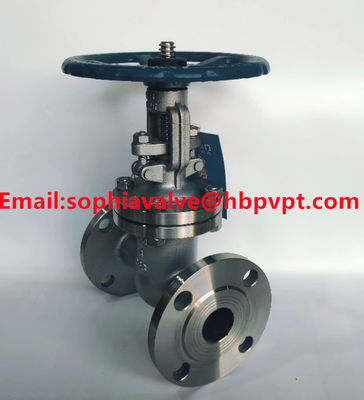

Product show
