| Place of Origin: | China |
| Brand Name: | PVPT |
| Minimum Order Quantity: | 10 pcs |
|---|---|
| Price: | EXW FOB CFR CIF |
| Packaging Details: | wooden case, pallet or as per customer request |
| Delivery Time: | 30 days after receiving the down payment |
| Payment Terms: | L/C, T/T |
CF8 stainless steel cast steel swing check valve manufacturer
Specifications
1.Production Size: 1"~30".DN25~DN750.
2.Pressure: 150LB, 300LB, 600LB, 900LB, 1500LB.
3.Design Standard: ANSI B16.34.
4.Face to Face: ASME B16.10.
5.Flange Standard: ASME B16.5.
6.Testing Standard: API 598.
Materials of parts
1.Body: CF3, CF3M, CF8, CF8M.
2.Bonnet: CF3, CF3M, CF8, CF8M.
3.Stem: 2Cr13, SS304, SS316, carbon steel.
4.Stem Nut: brass, Ductile iron.
5.Disc: CF3, CF3M, CF8, CF8M.
6.Seat: CF3, CF3M, CF8, CF8M.
7.Nut: CF3, CF3M, CF8, CF8M.
8.Arm Hinge: CF3, CF3M, CF8, CF8M.
9.Hing Pin: CF3, CF3M, CF8, CF8M.

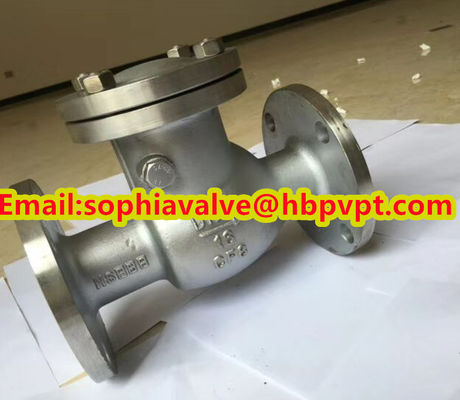

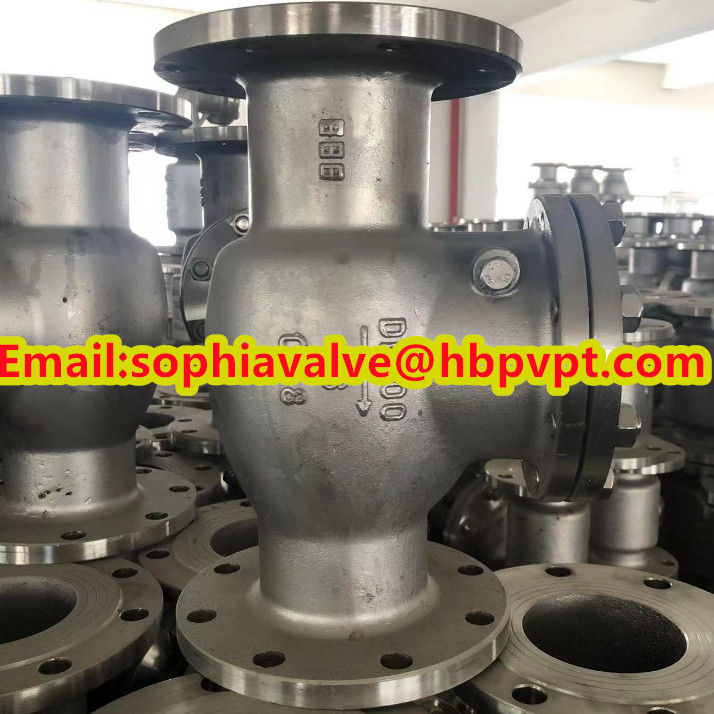

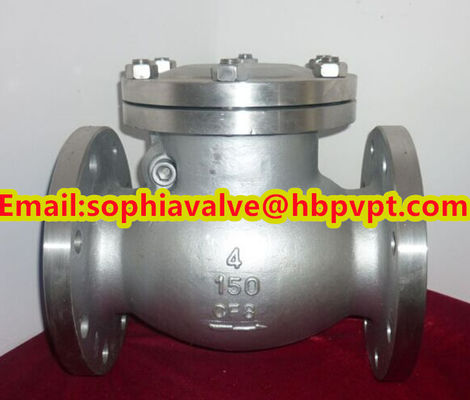

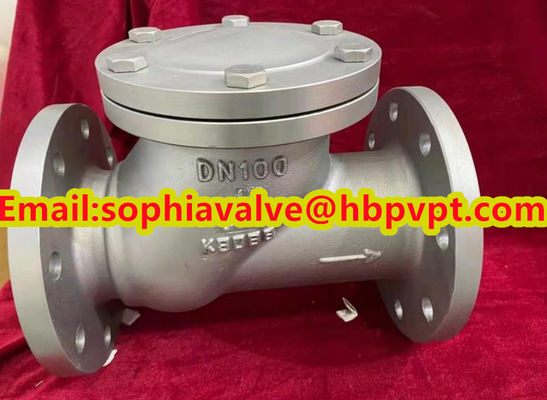

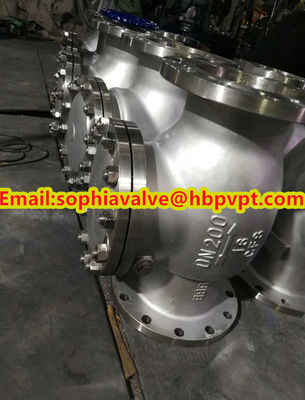

Product show
Contact Person: Ms. Sophia Liu
Tel: +86 15931062270
