low pressure PN10 DIN resilient seal F5 gate valve
Specifications
1.Production Size:DN50-DN600
2.Pressure range:PN10,PN16,PN25
Standard:
1.Design Standard:DIN3352
2.Face to Face:DIN3202 F5
3.Flange Standard:EN 1092
4.Testing Standard:EN12226
Main Material of parts:
1.Body:GGG45/GGG50
2.Bonnet:GGG45/GGG50
3.Stem:2Cr13/SS304/SS316/Carbon Steel
4.Stem Nut:brass
5.Disc:GGG45/GGG50
6.Seat:EPDM/NBR/PTFE
7.Handwheel:GGG45/GGG50

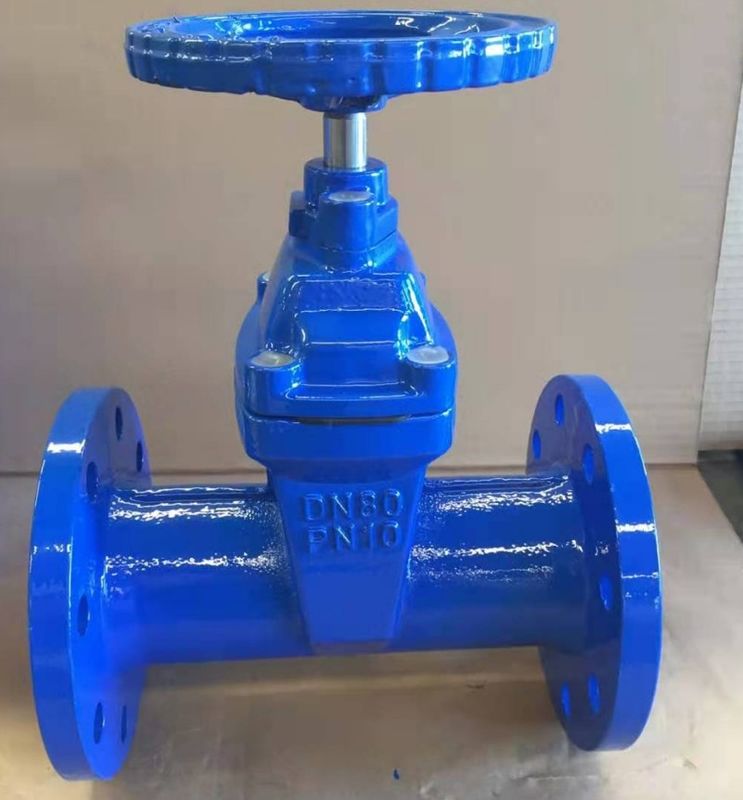

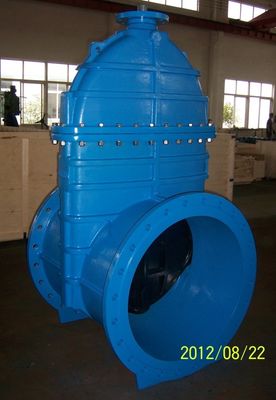

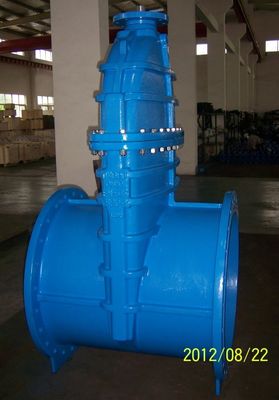

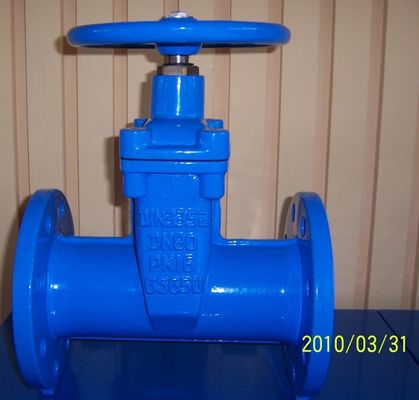

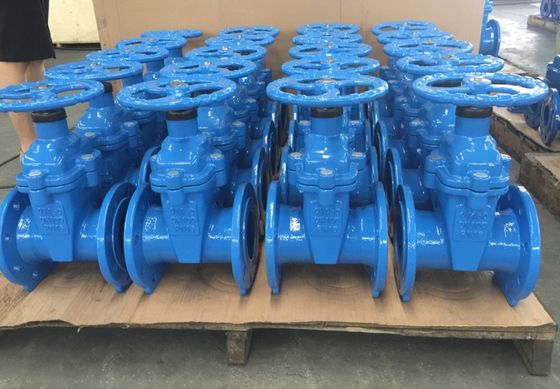

Product show
