| Place of Origin: | China |
| Brand Name: | PVPT |
| Minimum Order Quantity: | 10 pcs |
|---|---|
| Price: | EXW FOB CFR CIF |
| Packaging Details: | wooden case, pallet or as per customer request |
| Delivery Time: | 30 days after receiving the down payment |
| Payment Terms: | L/C, T/T, Western Union |
| Standard: | DIN ANSI |
|---|
DIN ANSI ball type flange end check valve
Product specifications
1.Production Size:1 1/2”-20” DN40-DN500mm
2.Pressure range:PN10,PN16,125LB,150LB
3.Face to Face:DIN 3202 F6
4.Flange Standard: EN1092-2/BS4504 PN16,ASME B16.1
5.Testing Standard:EN12266
Main material of parts:
1.Body:Ductile Iron
2.Bonnet: Ductile Iron
3.Ball:ABS/GGG50/NBR+EPDM
4.Sealing Ring:NBR/EPDM

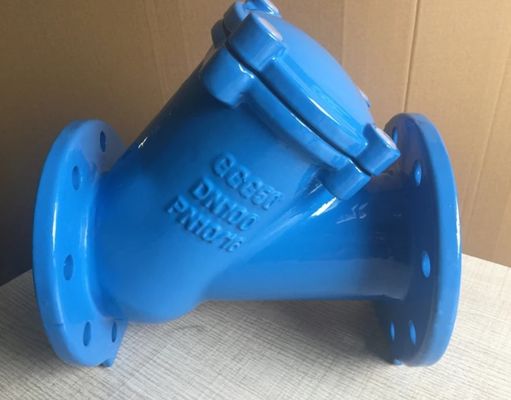

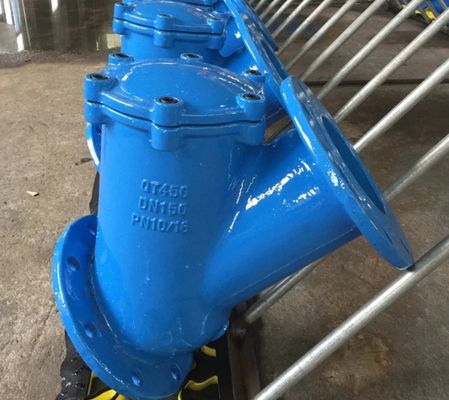

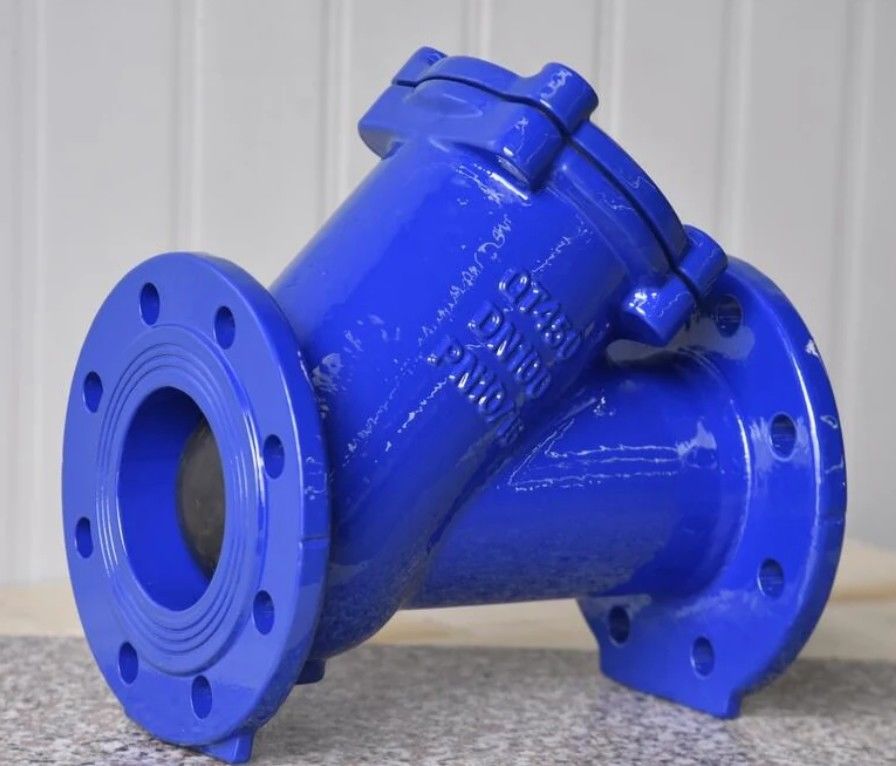

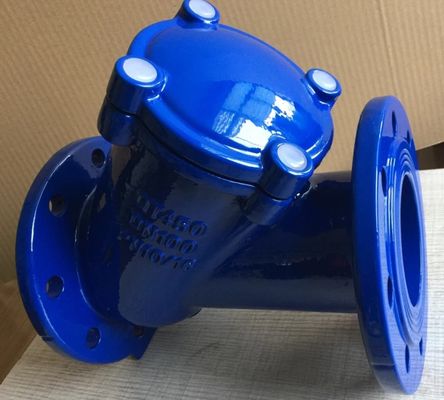

Pictures of ball type check valve
Contact Person: Ms. Sophia Liu
Tel: +86 15931062270
