| Place of Origin: | China |
| Brand Name: | PVPT |
| Minimum Order Quantity: | 10 pcs |
|---|---|
| Price: | EXW FOB CFR CIF |
| Packaging Details: | wooden case, pallet or as per customer request |
| Delivery Time: | 30 days after receiving the down payment |
| Payment Terms: | L/C, T/T, Western Union |
| Size: | DN100 | Pressure: | PN16 |
|---|---|---|---|
| Material: | GGG50 |

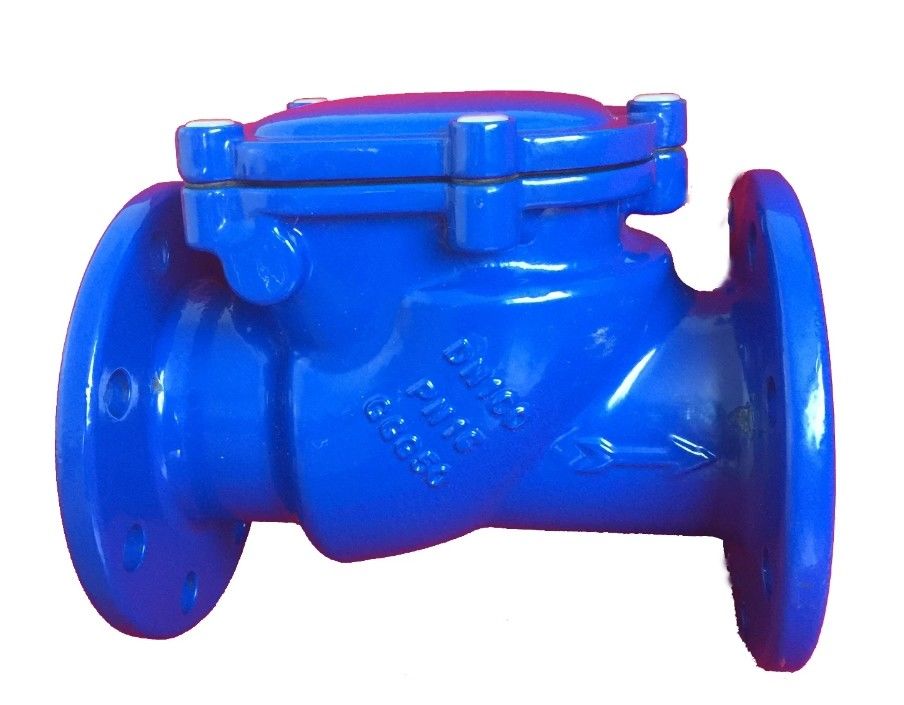

DN100 PN16 GGG50 ductile iron check valve
Specifications
1.Production Size:2”-24” DN50-DN600mm
2.Pressure range:PN10,PN16
Standard:
1.Design Standard:DIN
2.Face to Face:DIN3202 F6
3.Flange Standard:EN 1092-2
4.Testing Standard:ISO 5208
Main material of parts:
1.Body:EN-GJL-250
2.Bonnet:EN-GJL-250
3.Stem:2Cr13/SS304/SS316/Carbon Steel
4.Stem Nut:brass
5.Disc:EN-GJL-250
6.Seat:Bronze,Brass
7.Hanger:EN-GJS-5007
8.Hanger pin:Stainless Steel
9.Cover Gasket:Graphite

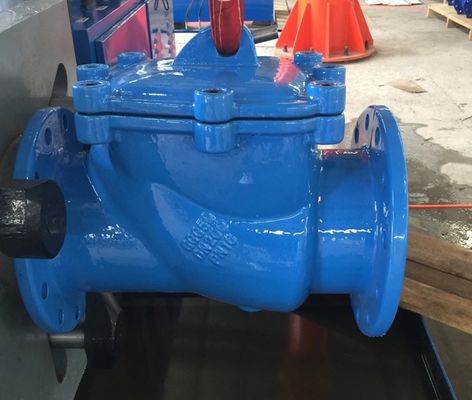

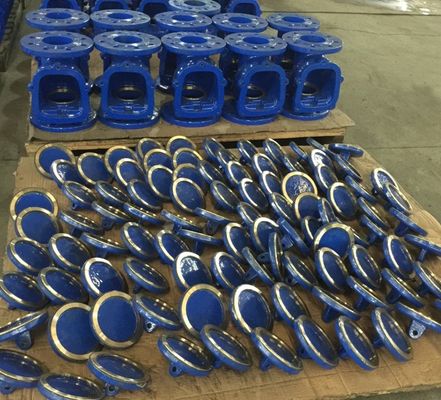

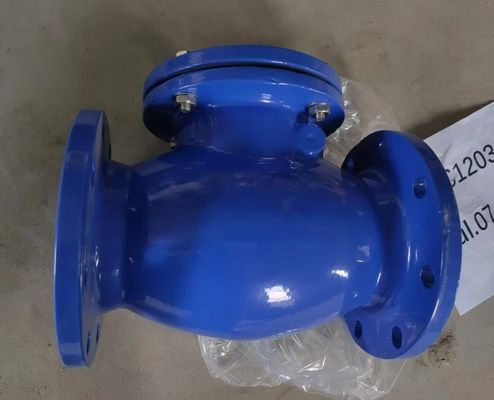

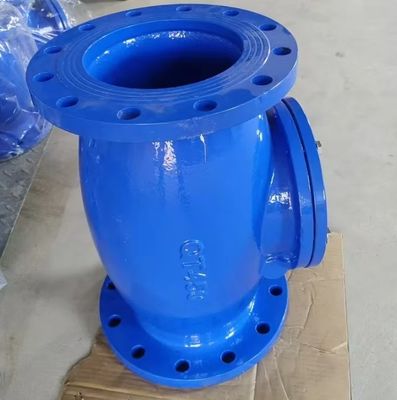

Product show
