| Place of Origin: | China |
| Brand Name: | PVPT |
| Minimum Order Quantity: | 10 pcs |
|---|---|
| Price: | EXW FOB CFR CIF |
| Packaging Details: | wooden case, pallet or as per customer request |
| Delivery Time: | 30 days after receiving the down payment |
| Payment Terms: | L/C, T/T, Western Union |
| Manufacture Standard: | ANSI | Material: | Ductile Iron |
|---|
ductile iron flanged ANSI foot valve
Specifications
1.Production Size:2”-16” DN50-DN400
2.Pressure range:150LB
3.Design Standard:ANSI
4.Flange Standard: ANSI 16.1,EN1092
5.Testing Standard:ISO 5208
Main material of parts:
1.Body:Ductile Iron
2.Base: Ductile Iron
3.Stem:2Cr13
4.Spring:SS304
5.Disc:Ductile Iron+EPDM
6.Screen:SS304

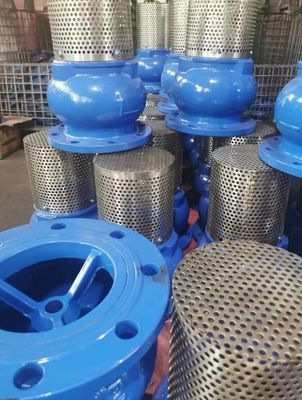

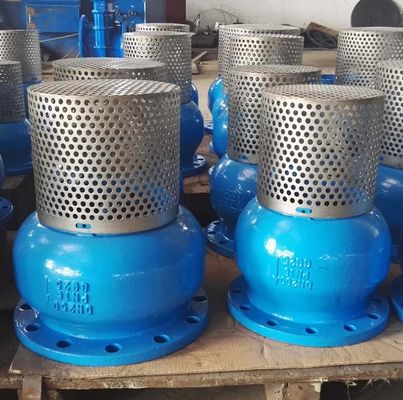

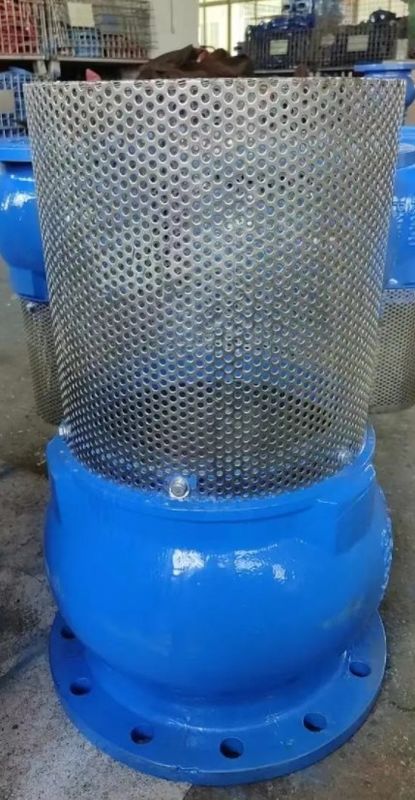

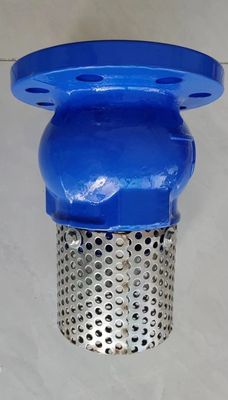

Product show
