| Place of Origin: | China |
| Brand Name: | PVPT |
| Minimum Order Quantity: | 10 pcs |
|---|---|
| Price: | EXW FOB CFR CIF |
| Packaging Details: | wooden case, pallet or as per customer request |
| Delivery Time: | 30 days after receiving the down payment |
| Payment Terms: | L/C, T/T, Western Union |
| Face To Face: | DIN 3202 F4 | Body Material: | GGG40 |
|---|---|---|---|
| Pressure: | PN16 |
GGG40 PN16 F4 metal seat gate valve brand PVPT
Specifications
1.Production Size:1 1/2”-24” DN40-DN600mm
2.Pressure range:PN16
Standard:
1.Design Standard:DIN 3352
2.Face to Face:DIN 3202 F4
3.Flange Standard:EN 1092-2PN10,PN16
4.Testing Standard:ISO 5208
Main material of parts:
1.Body:GGG40
2.Bonnet: EN-GJL-250,GG25,GGG50
3.Stem:2Cr13/SS304/SS316/Carbon Steel
4.Disc:EN-GJL-250
5.Seat:Bronze B62/Brass
6.Bonnet Gasket:Graphite
7.Packing:Graphite
8.Handwheel:ASTM A536 65-45-12
If any inquiry for gate valves, pls feel free to contact Sophia via Email:sophiavalve(at)hbpvpt.com

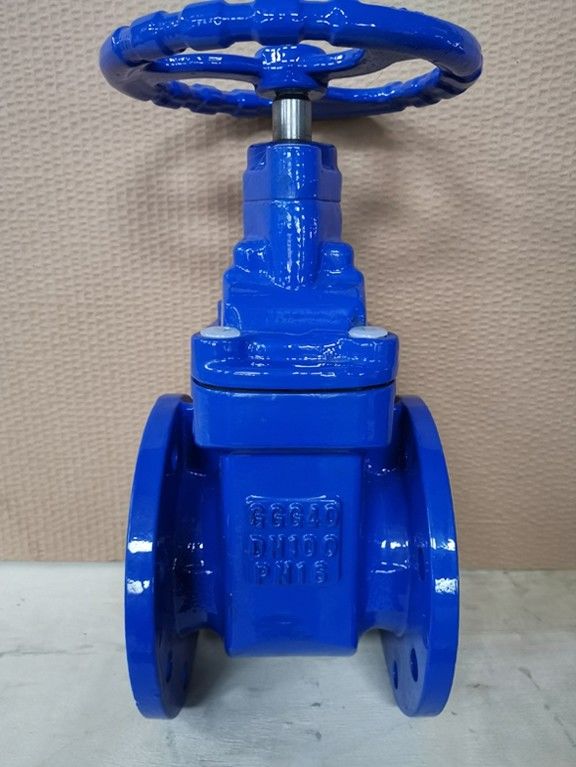

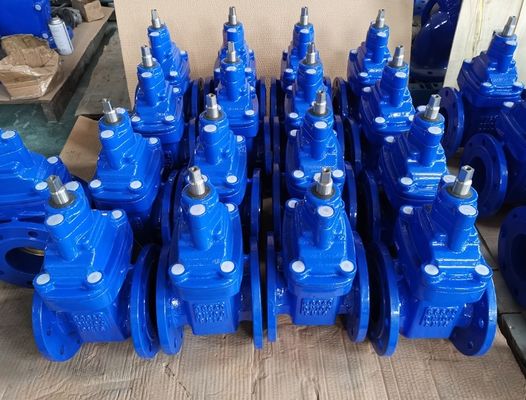

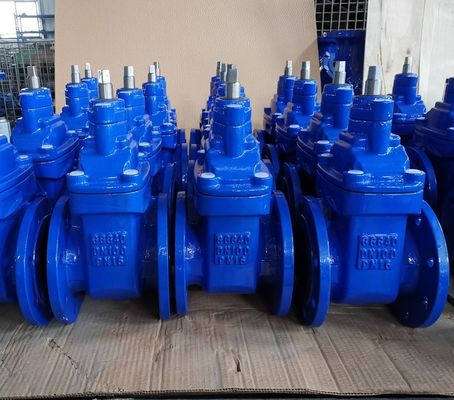

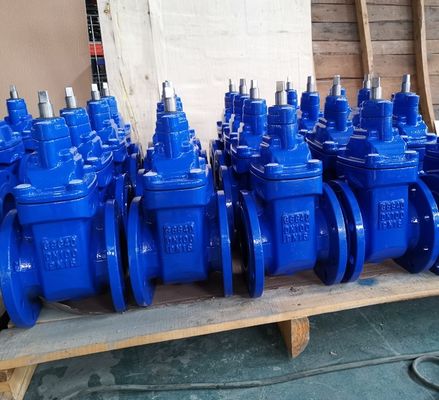

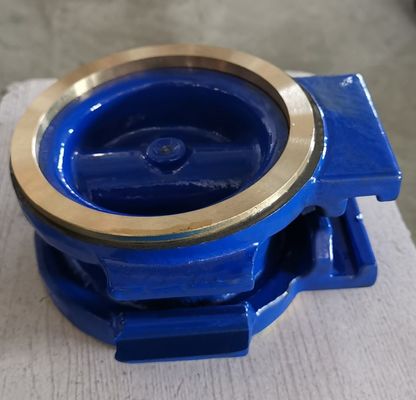

Product show
Contact Person: Ms. Sophia Liu
Tel: +86 15931062270
