| Place of Origin: | China |
| Brand Name: | PVPT |
| Minimum Order Quantity: | 10 pcs |
|---|---|
| Price: | EXW FOB CFR CIF |
| Packaging Details: | wooden case, pallet or as per customer request |
| Delivery Time: | 30 days after receiving the down payment |
| Payment Terms: | L/C, T/T, Western Union |
DIN3202 F6 PN16 flanged check valve ball type check valve
Specifications
Range:
1.Production Size:1 1/2”-20” DN40-DN500mm
2.Pressure :PN16
Standard:
1.Face to Face:DIN 3202 F6
2.Flange Standard: EN1092-2/BS4504 PN16,ASME B16.5
3.Testing Standard:EN12266
Main material of parts:
1.Body:Ductile Iron
2.Bonnet: Ductile Iron
3.Ball:ABS/GGG50/NBR+EPDM
4.Sealing Ring:NBR/EPDM
Any related inquiry for ball type check valve, pls don't hesitate to contact Sophia via email:sophiavalve(at)hbpvpt.com

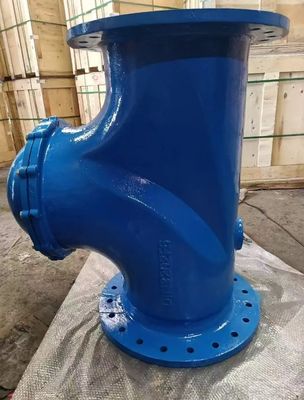

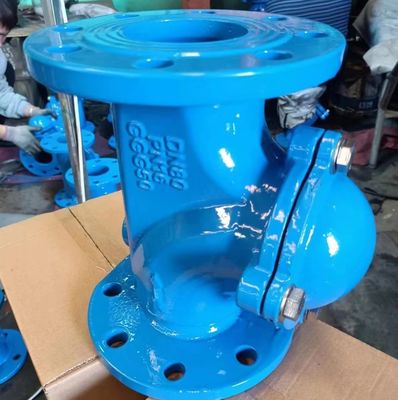

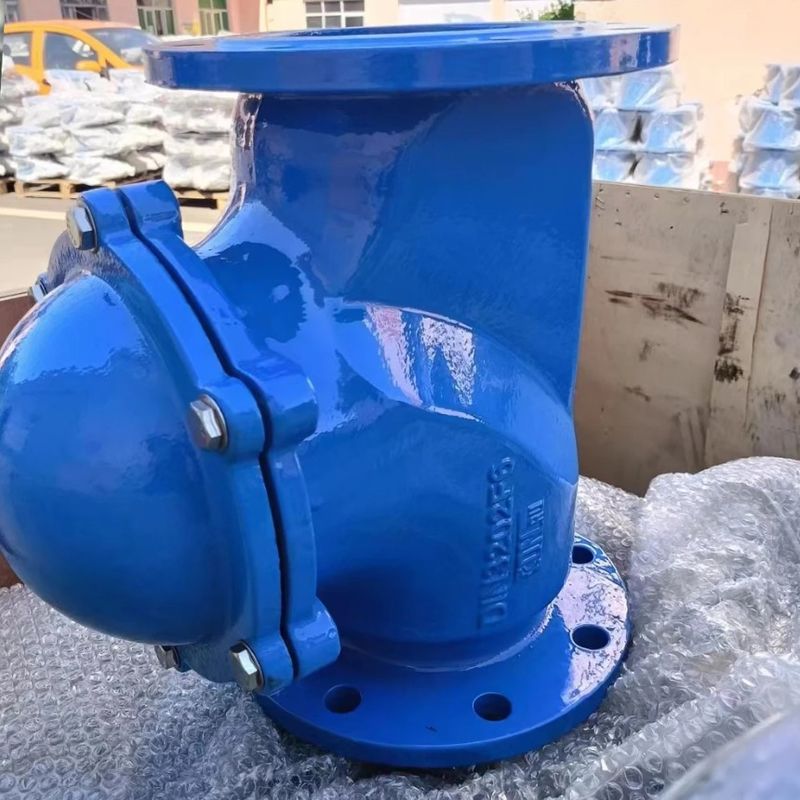

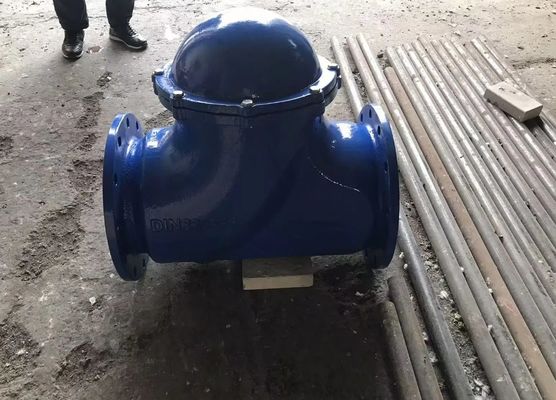

Product show
Contact Person: Ms. Sophia Liu
Tel: +86 15931062270
