| Place of Origin: | Xingtai, China |
| Brand Name: | PVPT |
| Minimum Order Quantity: | 10 pcs |
|---|---|
| Price: | EXW FOB CFR CIF |
| Packaging Details: | wooden case, pallet or as per customer request |
| Delivery Time: | 30 days after receiving the down payment |
| Payment Terms: | L/C, T/T, Western Union |
| Pressure: | PN10 | Body Material: | GG25 |
|---|---|---|---|
| Manufacture Standard: | BS3464 |

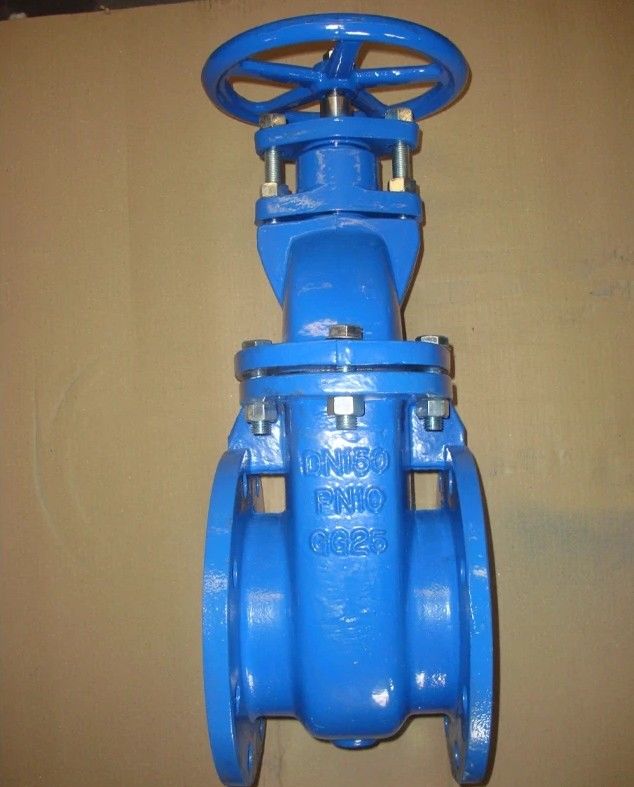

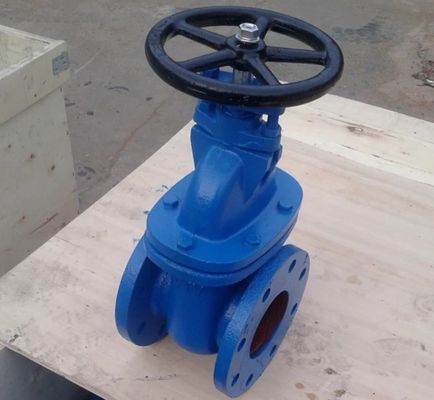

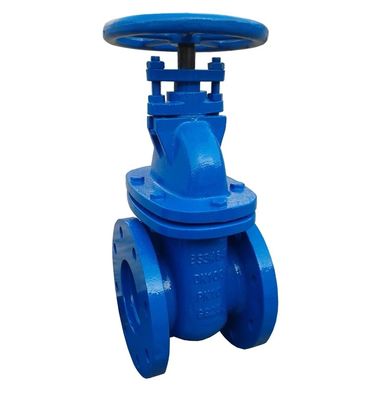

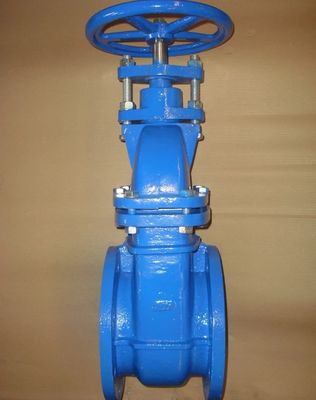

BS3464 PN10 GG25 cast iron Non-rising gate valve
Specifications
1.Production Size:2”-12” DN50-DN300mm
2.Pressure range:PN10,PN16
3.Design Standard:BS3464
4.Face to Face:BS5150
5.Flange Standard:EN 1092-2
6.Testing Standard:ISO 5208
cast iron Non-rising gate valve main material of parts:
1.Body:GG25
2.Bonnet:GG25
3.Stem:2Cr13/SS304/SS316/Carbon Steel
4.Stem Nut:brass
5.Wedge Ring:Bronze B62/Brass
6.Disc:AEN-GJL-250
7.Seat:Bronze B62/Brass
8.Bonnet Gasket:Graphite
9.Packing:Graphite
10.Hand wheel:EN-GJS-500-7

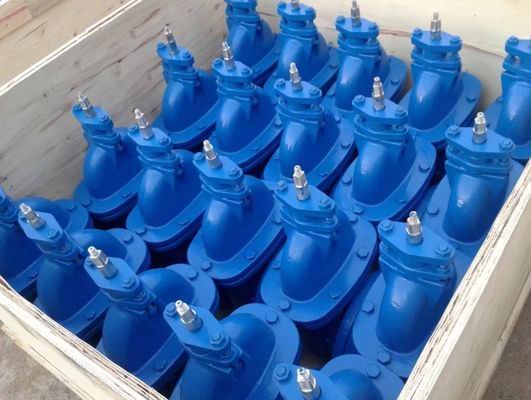

Product show
