| Place of Origin: | Xingtai, China |
| Brand Name: | PVPT |
| Minimum Order Quantity: | 10 pcs |
|---|---|
| Price: | EXW FOB CFR CIF |
| Packaging Details: | wooden case, pallet or as per customer request |
| Delivery Time: | 30 days after receiving the down payment |
| Payment Terms: | L/C, T/T, Western Union |
| Manufacture Standard: | DIN3352 | Pressure: | PN16 |
|---|

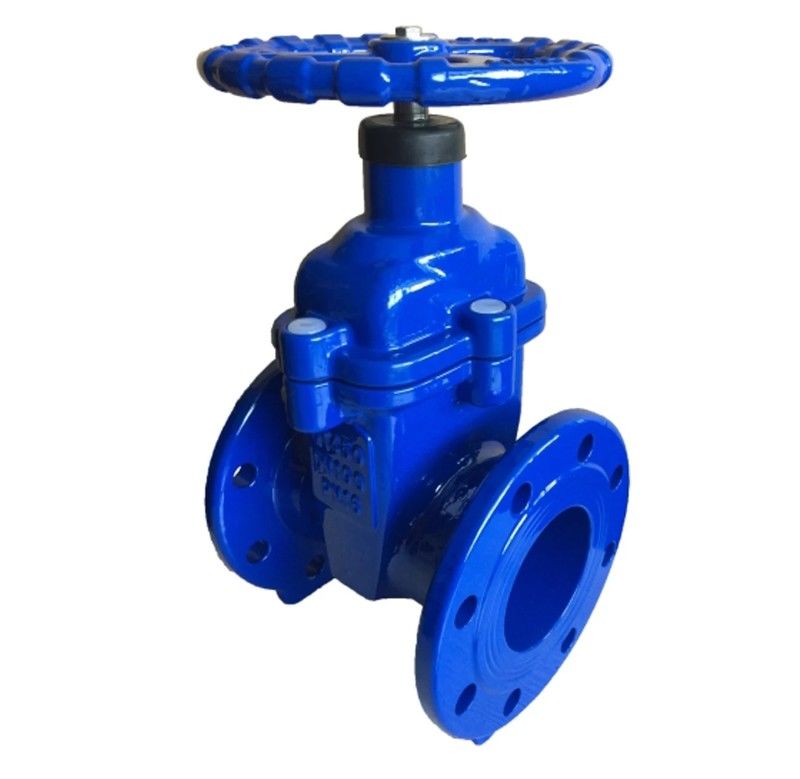

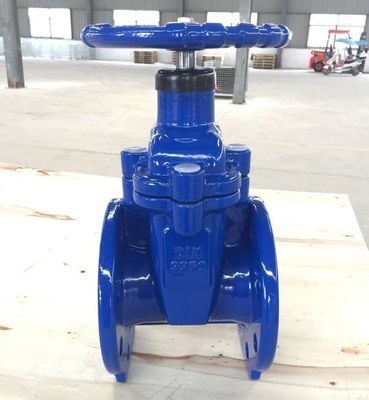

DIN3352 resilient seal cast iron PN16 gate valve
Specifications
1.Size:DN50-DN1600mm
2.Pressure range:PN16
Cast iron PN16 gate valve Standard:
1.Design Standard:DIN3352
2.Face to Face:DIN3202 F4
3.Flange Standard:EN 1092
4.Testing Standard:EN12226
Cast iron PN16 gate valve Main Material of parts:
1.Body:GGG45/GGG50
2.Bonnet:GGG45/GGG50
3.Stem:2Cr13/SS304/SS316/Carbon Steel
4.Stem Nut:brass
5.Disc:GGG45/GGG50
6.Seat:EPDM/NBR/PTFE
7.Handwheel:GGG45/GGG50

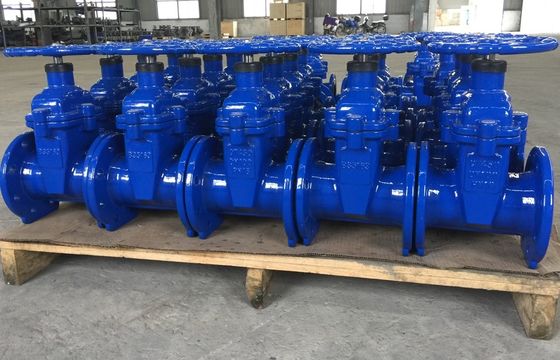

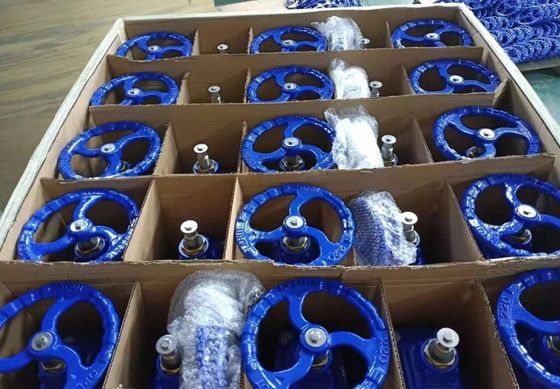

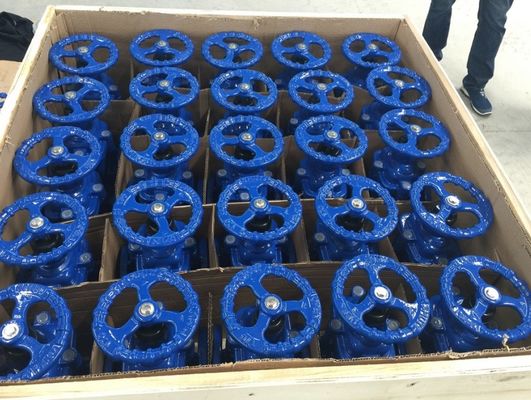

Product show
Contact Person: Ms. Sophia Liu
Tel: +86 15931062270
