| Place of Origin: | Xingtai, China |
| Brand Name: | PVPT |
| Minimum Order Quantity: | 10 pcs |
|---|---|
| Price: | EXW FOB CFR CIF |
| Packaging Details: | wooden case, pallet or as per customer request |
| Delivery Time: | 30 days after receiving the down payment |
| Payment Terms: | L/C, T/T, Western Union |
| Body Material: | A126B | Pressure: | 150LB |
|---|
A126B 150LB cast iron ANSI flanged gate valve
Specifications
1.Size :2”-40” DN50-DN1000mm
2.Pressure :125LB,150LB
3.Design standard:MSS SP-70
4.Face to face:ANSI B16.10
5.Flange standard:ANSI B16.5
6.Testing standard:MSS SP-70,API 598
Main materials of parts:
1.Body:ASTM A126B
2.Bonnet:ASTM A126B
3.Stem:2Cr13/SS304/SS316/Carbon Steel
4.Stem nut:brass
5.Seat:Bronze B62/Brass
6.Disc:ASTM A126B
7.Gasket:Graphite
8.Packing:Graphite
9.Handwheel:ASTM A536 65-45-12

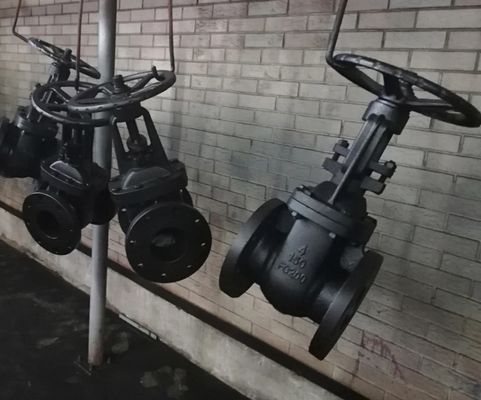

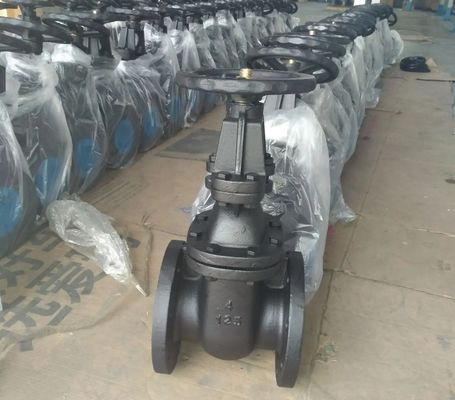

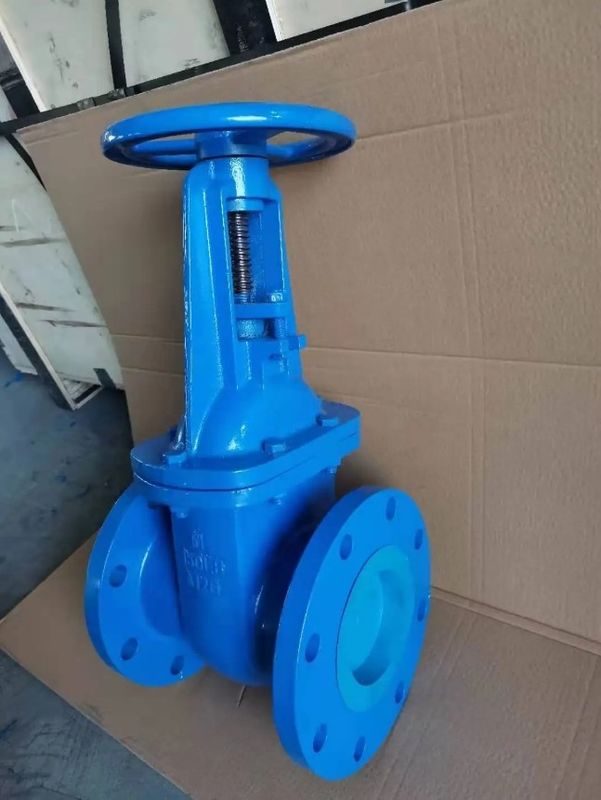

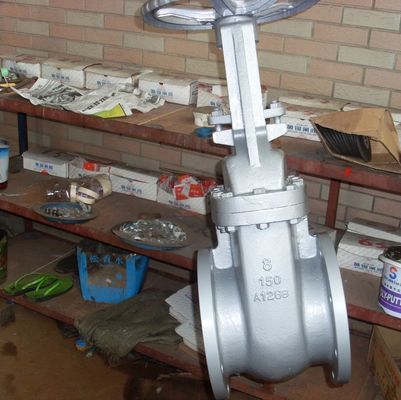

Product show
