| Place of Origin: | China |
| Brand Name: | PVPT |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | EXW FOB CFR CIF |
| Packaging Details: | wooden case, pallet or as per customer request |
| Delivery Time: | 30 days after receiving the down payment |
| Payment Terms: | L/C, T/T, Western Union |
| Size: | DN100 | Pressure: | PN16 |
|---|---|---|---|
| Body Material: | GGG40 |
cast iron gate valve GGG40 DN100 PN16
Specifications
1.Production Size:DN100
2.Pressure:PN16
Standard:
1.Design Standard:DIN 3352
2.Face to Face:DIN 3202 F4
3.Flange Standard:EN 1092-2PN10,PN16
4.Testing Standard:ISO 5208
Main material of parts:
1.Body:GGG40
2.Bonnet: GGG40
3.Stem:2Cr13/SS304/SS316/Carbon Steel
4.Disc:EN-GJL-250
5.Seat:Bronze B62/Brass
6.Bonnet Gasket:Graphite
7.Packing:Graphite
8.Handwheel:ASTM A536 65-45-12

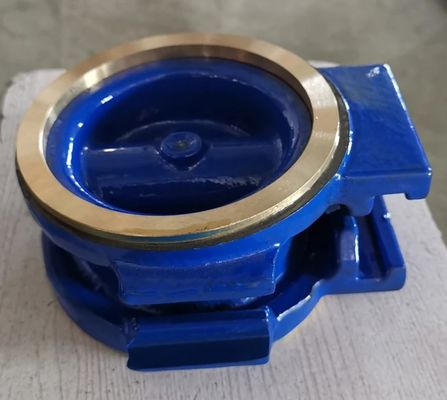

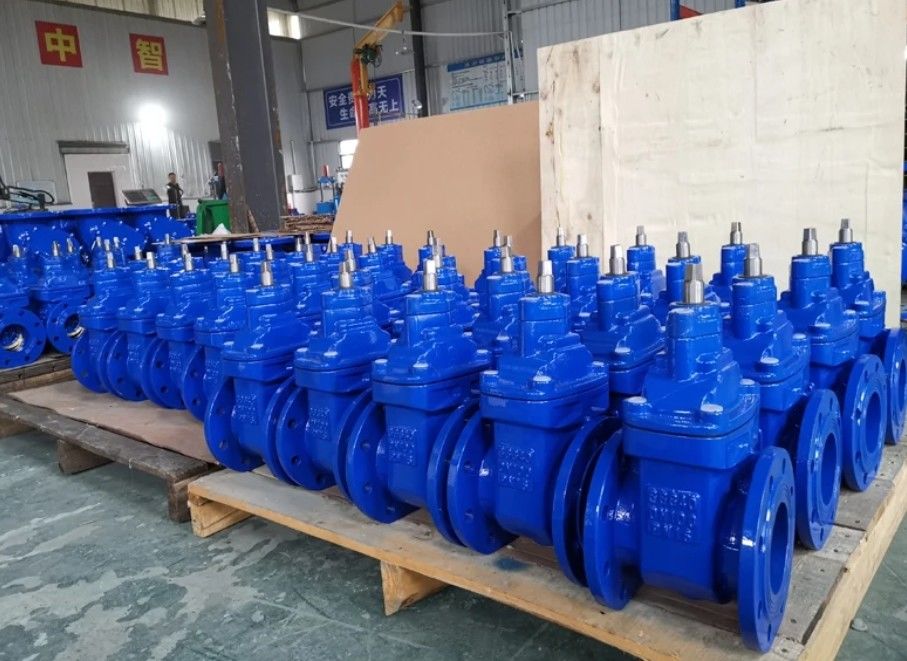

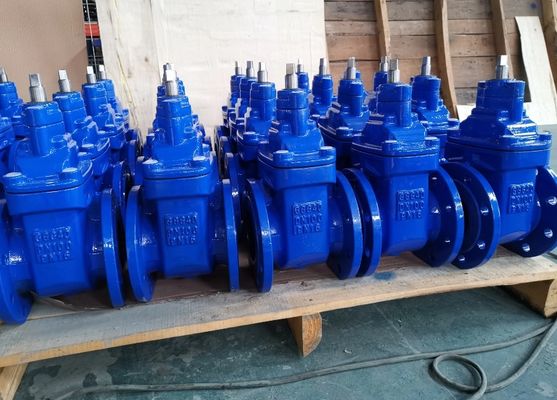

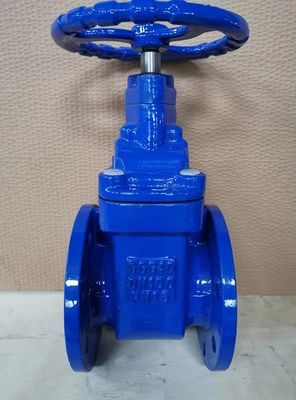

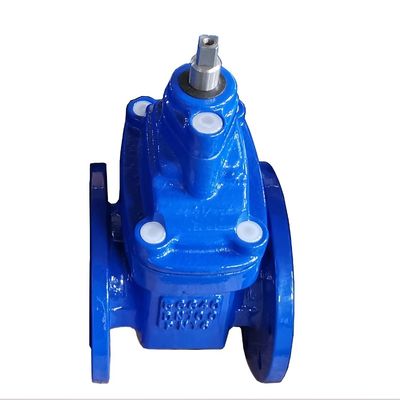

Product show
