| Place of Origin: | China |
| Brand Name: | PVPT |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | EXW FOB CFR CIF |
| Packaging Details: | wooden case, pallet or as per customer request |
| Delivery Time: | 30 days after receiving the down payment |
| Payment Terms: | L/C, T/T, Western Union |
| Pressure: | 10K |
|---|

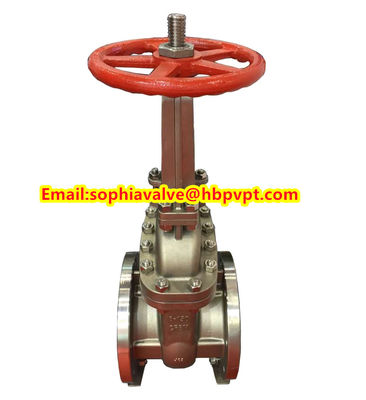

JIS SCS13 10K stainless steel gate valve
Specifications
1.Production Size:2”-12” DN50-DN300mm
2.Pressure range:10k 20K
Standard:
1.Design Standard:JIS B2031
2.Face to FaceJIS B2031
3.Flange Standard:JIS B2239
4.Testing Standard:KS B 2304
Main parts and materials
1.Body:SCPH2
2.Bonnet: SCPH2
3.Stem:2Cr13/SUS304/SUS316/Carbon Steel
4.Stem Nut:brass
5.Wedge Ring:Bronze B62/Brass
6.Disc: SCPH2
7.Bonnet Gasket:Graphite
8.Packing:Graphite
9.Hand wheel:FCD450

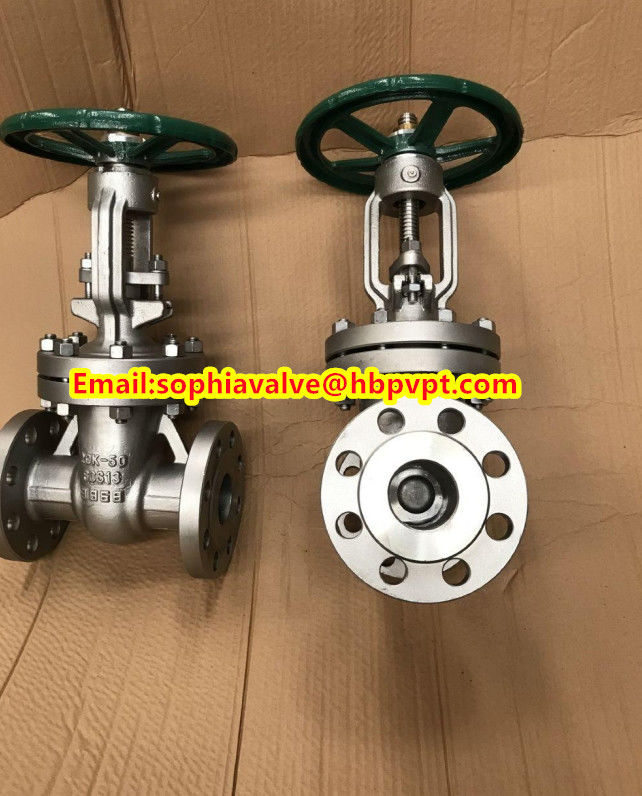

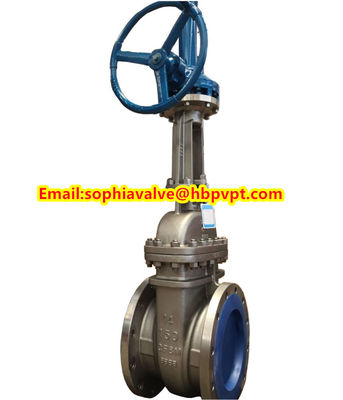

Product show
