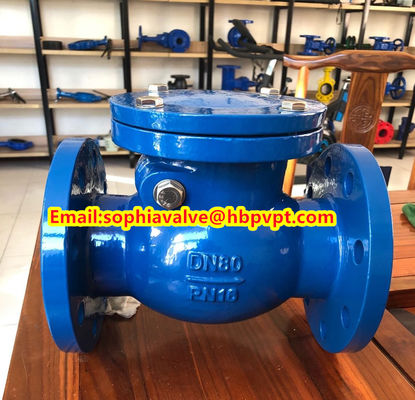

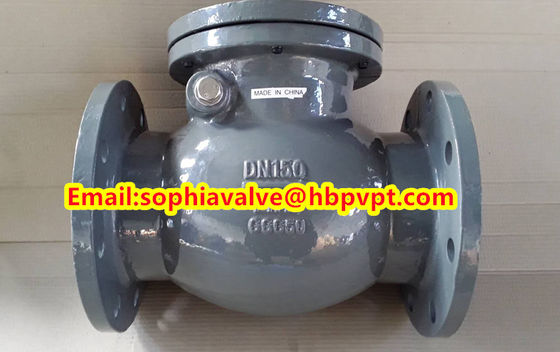

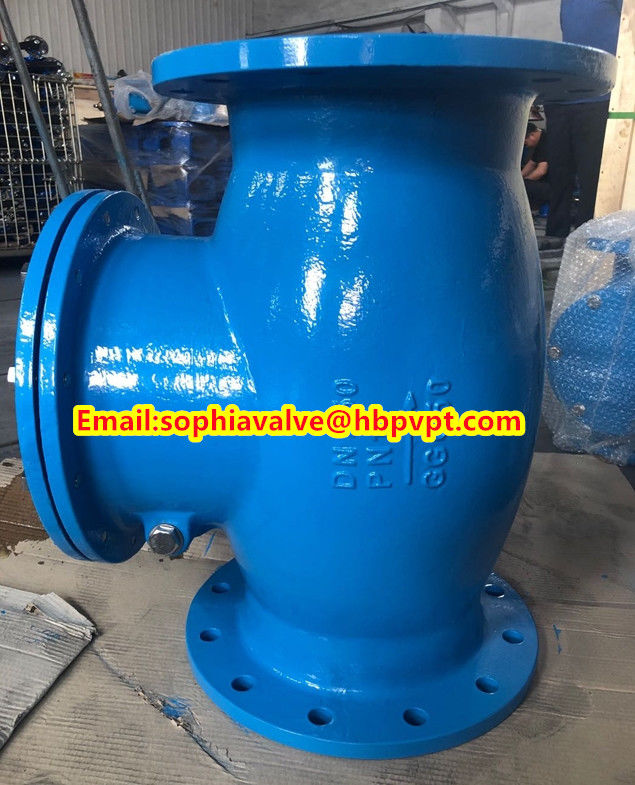

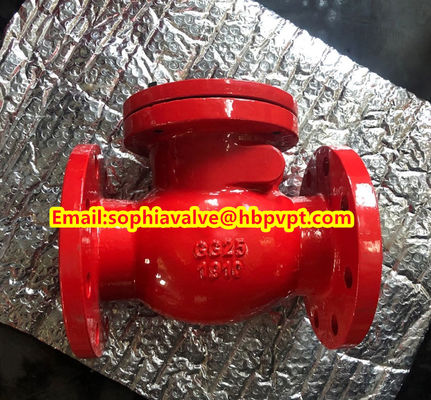

DIN3356 PN16 GGG50 cast iron swing check valve
Specifications
1.Production Size:2”-24” DN50-DN600mm
2.Pressure :PN10,PN16
Standard:
1.Design Standard:DIN3356
2.Face to Face:DIN3202 F6
3.Flange Standard:EN 1092-2
4.Testing Standard:ISO 5208
Main material of parts:
1.Body:EN-GJL-250
2.Bonnet:EN-GJL-250
3.Stem:2Cr13/SS304/SS316/Carbon Steel
4.Stem Nut:brass
5.Disc:EN-GJL-250
6.Seat:Bronze,Brass
7.Hanger:EN-GJS-5007
8.Hanger pin:Stainless Steel
9.Cover Gasket:Graphite
Product show
