| Place of Origin: | China |
| Brand Name: | PVPT |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | EXW FOB CFR CIF |
| Packaging Details: | wooden case, pallet or as per customer request |
| Delivery Time: | 30 days after receiving the down payment |
| Payment Terms: | L/C, T/T, Western Union |
cast iron metal seal GG25 flanged check valve

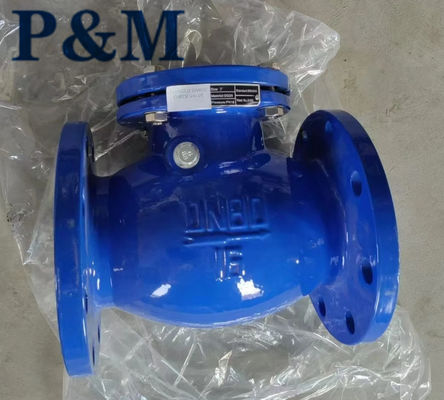

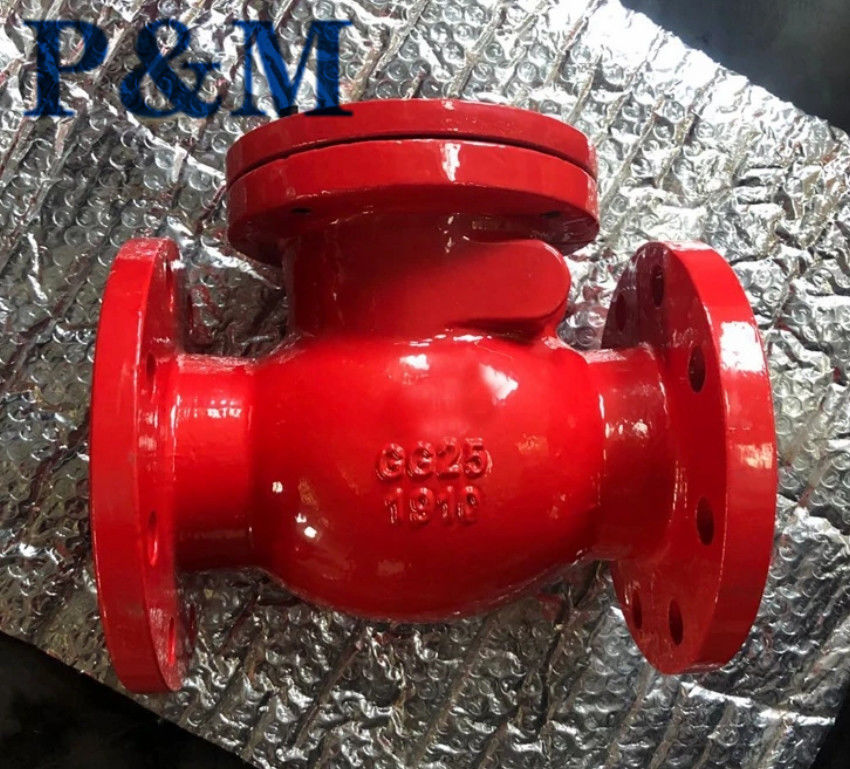

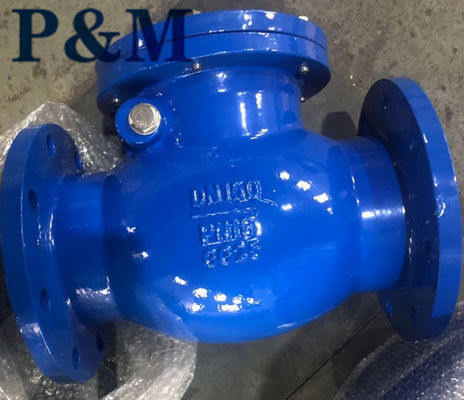

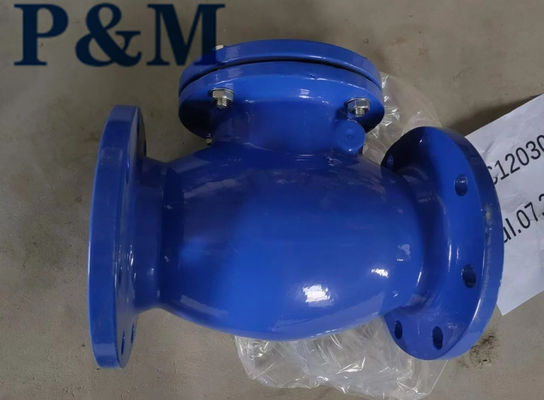

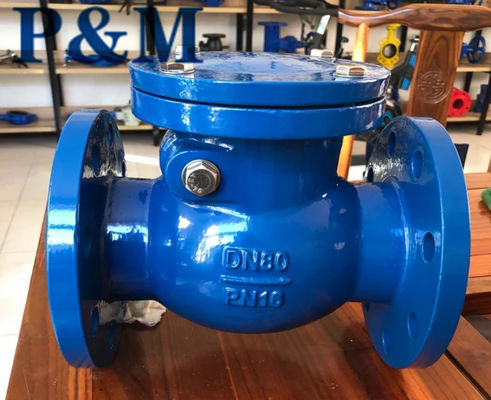

Product show
Product specifications
1.Production Size:2”-24” DN50-DN600mm
2.Pressure :PN10,PN16
Flanged Check Valve Standard:
1.Design Standard:DIN3356
2.Face to Face:DIN3202 F6
3.Flange Standard:EN 1092-2 BS4504
4.Testing Standard:ISO 5208
Flanged Check Valve main material of parts:
1.Body:EN-GJL-250
2.Bonnet:EN-GJL-250
3.Stem:2Cr13/SS304/SS316/Carbon Steel
4.Stem Nut:brass
5.Disc:EN-GJL-250
6.Seat:Bronze,Brass
7.Hanger:EN-GJS-5007
8.Hanger pin:Stainless Steel
9.Cover Gasket:Graphite
