| Place of Origin: | China |
| Brand Name: | PVPT |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | EXW FOB CFR CIF |
| Packaging Details: | wooden case, pallet or as per customer request |
| Delivery Time: | 30 days after receiving the down payment |
| Payment Terms: | L/C, T/T, Western Union |
| Pressure: | PN16 | Body Material: | GGG50 |
|---|
DIN PN16 GGG50 cast iron socket gate valve
Specifications
1.Production Size:2"~12"
2.Pressure:PN16
Standard:
1.Design Standard:DIN3352
2.Face to Face:DIN3202 F5
3.Flange Standard:EN1092
4.Testing Standard:EN12226
Material of parts:
1.Body:GGG50
2.Bonnet:GGG50
3.Stem:2Cr13/SS304/SS316/Carbon Steel
4.Stem Ring:PTFE
5.Disc:GGG50
6.Seat:EPDM/NBR
7.Gasket:EPDM
8.Locting Ring:Brass

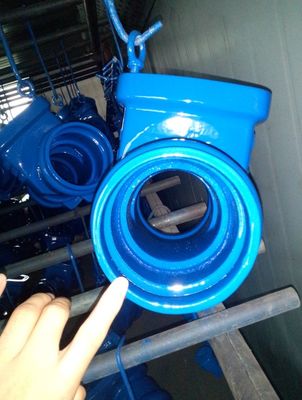

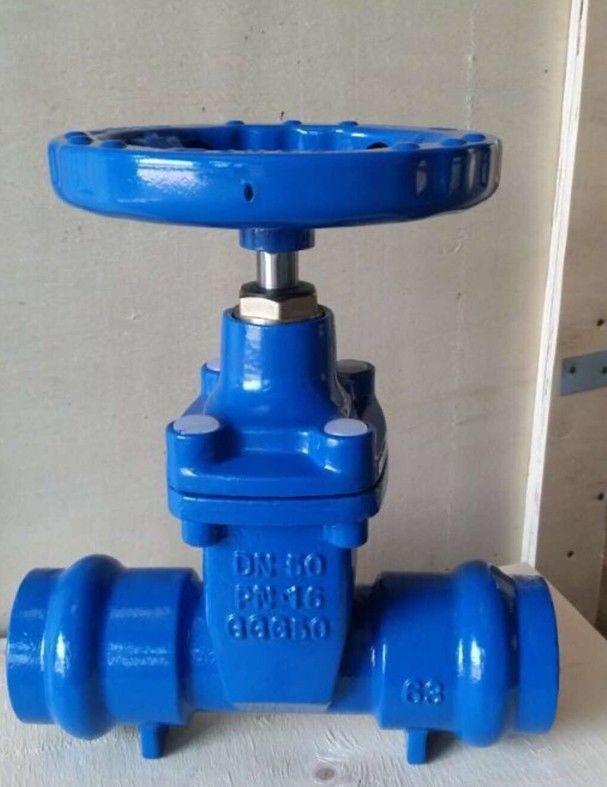

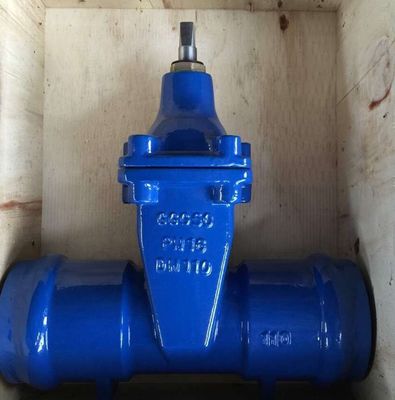

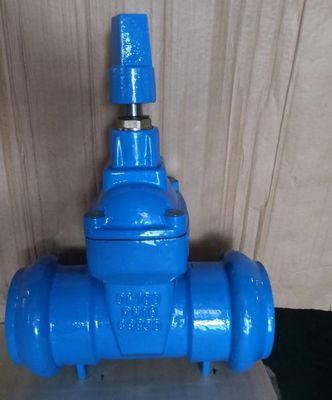

Product show
Contact Person: Ms. Sophia Liu
Tel: +86 15931062270
