Face to face F4 resilient seal gate valve made in China
Specifications
DIN standard resilient seal Gate Valve range:
1.Size:DN50-DN1600mm
2.Pressure range:PN10,PN16,PN25
DIN standard resilient seal Gate Valve Standard:
1.Design Standard:DIN3352
2.Face to Face:DIN3202 F4
3.Flange Standard:EN 1092
4.Testing Standard:EN12226
DIN standard resilient seal Gate Valve Main Material of parts:
1.Body:GGG45/GGG50
2.Bonnet:GGG45/GGG50
3.Stem:2Cr13/SS304/SS316/Carbon Steel
4.Stem Nut:brass
5.Disc:GGG45/GGG50
6.Seat:EPDM/NBR/PTFE
7.Handwheel:GGG45/GGG50

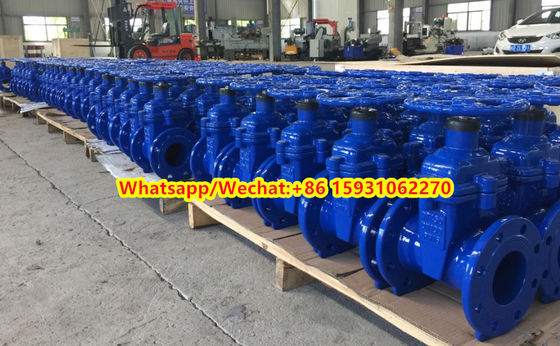

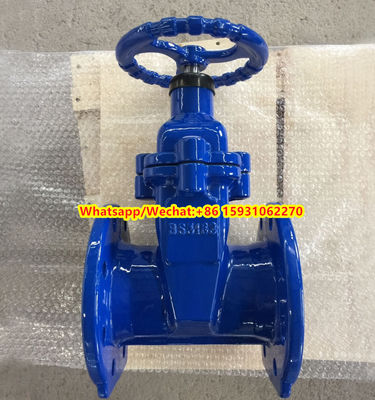

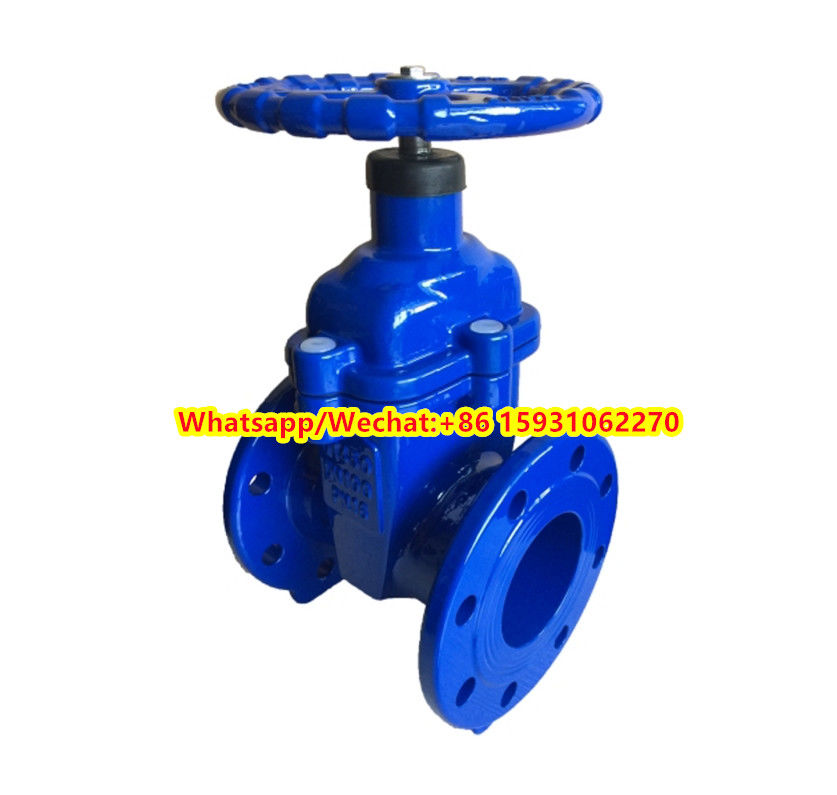

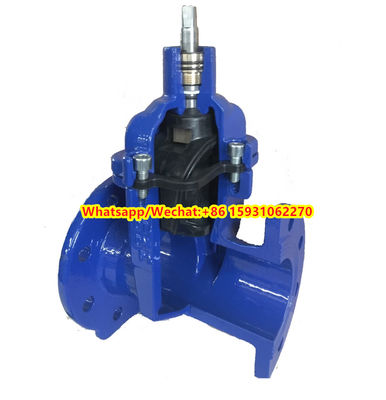

Product show
