| Place of Origin: | China |
| Brand Name: | PVPT |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | EXW FOB CFR CIF |
| Packaging Details: | wooden case, pallet or as per customer request |
| Delivery Time: | 30 days after receiving the down payment |
| Payment Terms: | L/C, T/T, Western Union |

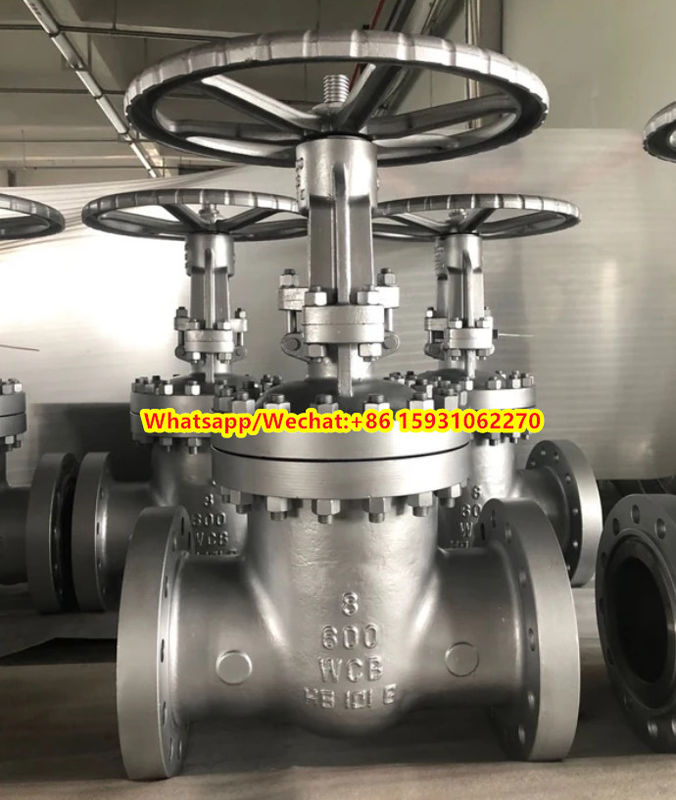

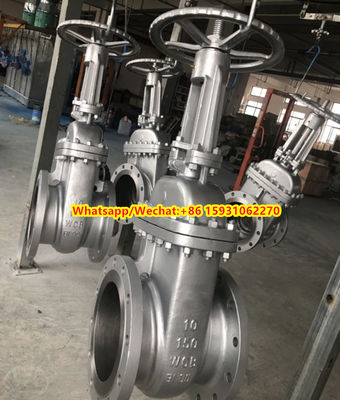

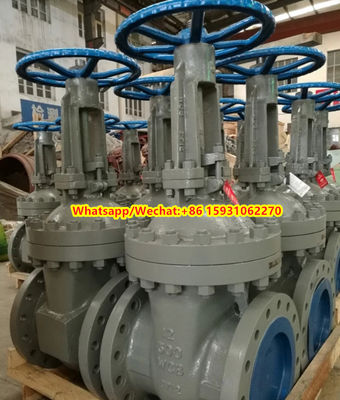

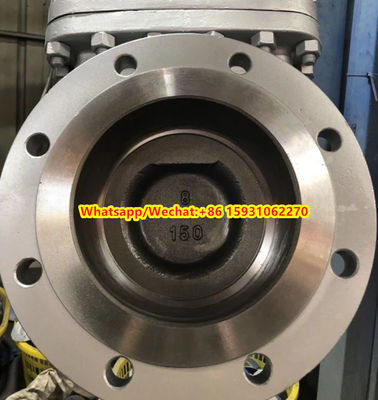

2025 new product WCB rising stem gate valve flanged gate valve
Specifications
1.Size :1"~24".(DN25~DN600)
2.Pressure:150LB,300LB,600LB,900LB,1500LB,2500LB
3.Design standard:API600,API6D
4.Face to face:ASME B16.34
5.Flange standard:ASME B16.10
6.Test standard:ASME B16.25
Main materials of parts:
1.Body:ASTM A216 WCB,A351 CF8,A351 CF8M
2.Bonnet: ASTM A216 WCB,A351 CF8,A351 CF8M
3.Stem:2Cr13,SS304,SS316,Carbon Steel
4.Stem nut:brass,Ductile iron
5.Disc:ASTM A216 WCB
6.Seat:13Cr13,Stellite
7.Handwheel:GGG45/GGG50
Product show
