| Place of Origin: | China |
| Brand Name: | PVPT |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | EXW FOB CFR CIF |
| Packaging Details: | wooden case, pallet or as per customer request |
| Delivery Time: | 30 days after receiving the down payment |
| Payment Terms: | L/C, T/T, Western Union |
| Size: | 4'' | Pressure: | 125LB |
|---|---|---|---|
| Material: | A126B |
4'' A126B 125LB cast iron gate valve
Specifications
1.Size :2”-40” DN50-DN1000mm
2.Pressure :125LB,150LB
3.Design standard:MSS SP-70
4.Face to face:ANSI B16.10
5.Flange standard:ANSI B16.5
6.Testing standard:MSS SP-70,API 598
Main materials of parts:
1.Body:ASTM A126B
2.Bonnet:ASTM A126B
3.Stem:2Cr13/SS304/SS316/Carbon Steel
4.Stem nut:brass
5.Seat:Bronze B62/Brass

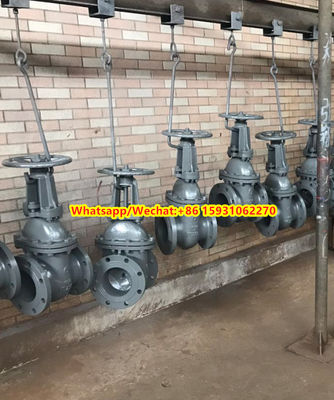

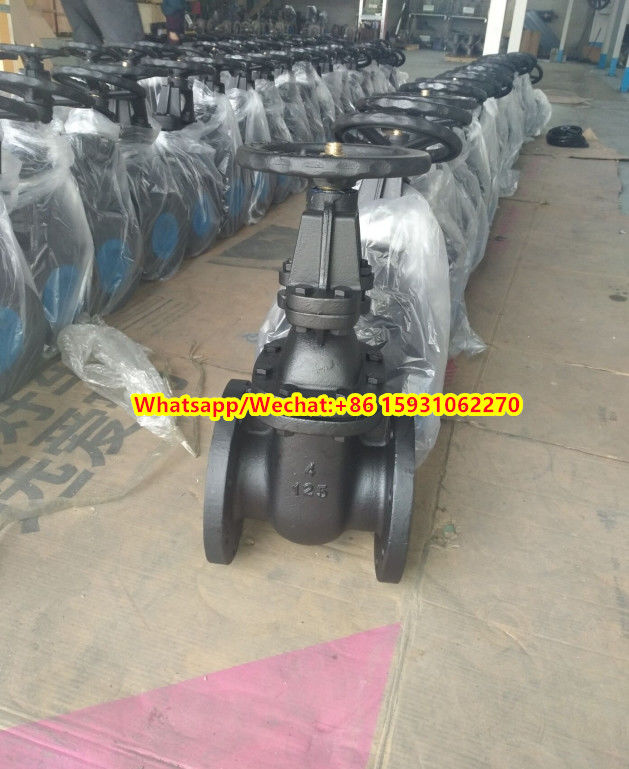

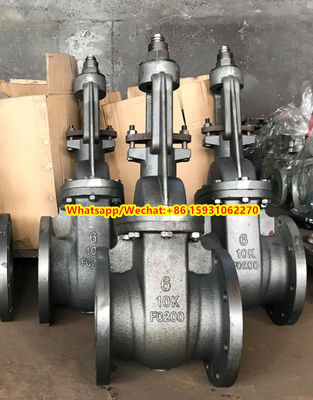

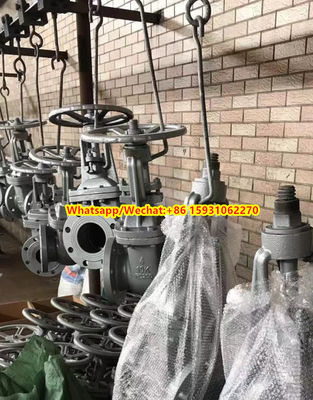

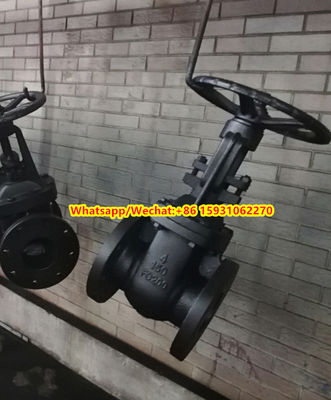

Product show
