| Place of Origin: | China |
| Brand Name: | PVPT |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Packaging Details: | wooden cases, pallets or as per customer request |
| Delivery Time: | 30 days after receiving down payment |
| Payment Terms: | L/C, T/T, Western Union |
| Pressure: | PN10/16 | Design Standard: | BS1563 |
|---|
BS1563 PN10/16 non-rising stem flanged gate valve
Specifications
non-rising stem flanged gate valve Standard:
1.Production Size:2”-40” DN50-DN1000mm
2.Pressure range:PN10,PN16
3.Design Standard:BS1563,BS5150
4.Face to Face:BS5150
5.Flange Standard:EN 1092-2
6.Testing Standard:ISO 5208
non-rising stem flanged gate valve main material of parts:
1.Body:EN-GJS-500-7
2.Bonnet:EN-GJS-500-7
3.Stem:2Cr13/SS304/SS316/Carbon Steel
4.Stem Nut:brass
5.Disc:EN-GJS-500-7
6.Seat:NBR,EPDM,PTFE
7.Bonnet Gasket:Graphite
8.Packing:NBR,EPDM
9.Hand wheel:EN-GJS-500-7

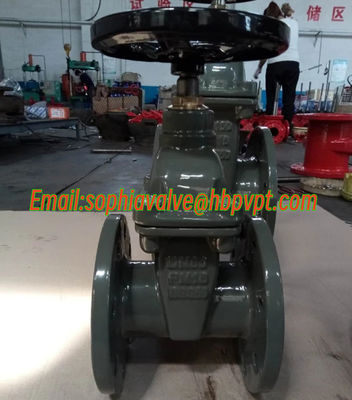

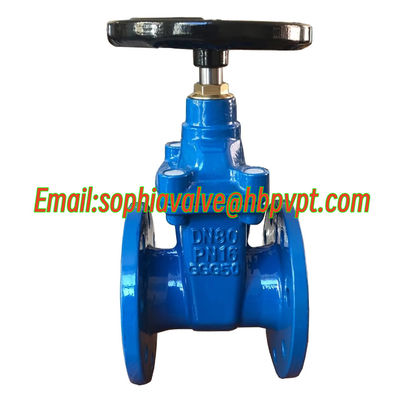

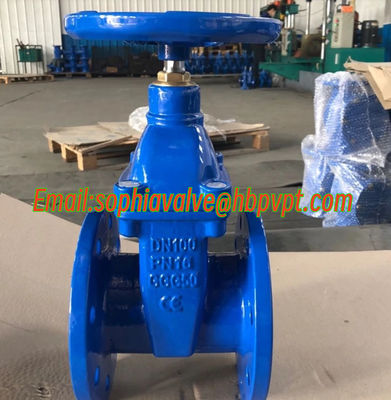

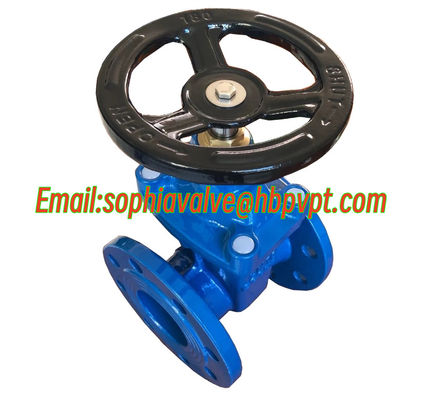

Product show
