| Place of Origin: | China |
| Brand Name: | PVPT |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | EXW FOB CFR CIF |
| Packaging Details: | wooden cases, pallets or as per customer request |
| Delivery Time: | 30 days after receiving down payment |
| Payment Terms: | L/C, T/T, Western Union |
| Pressure: | 150 300 600LB |
|---|
ANSI 150/300/600LB swing check valve with flanged
Besides American standard swing check valve, we can maufacure DIN standard swing check valves.
If you want to know more about our products, pls email Sophia
Specifications
1.Production Size:2"~24".DN40~DN600
2.Pressure:150LB,300LB,600LB
ANSI 150/300/600LB swing check valve with flanged standard:
1.Design Standard:BS 1868
2.Face to Face:ANSI B16.10
3.Flange Standard:ANSI B16.5
4.Testing Standard:API 598
ANSI 150/300/600LB swing check valve with flanged Material of parts:
1.Body:ASTM A216B
2.Bonnet: ASTM A216B
3.Stem:2Cr13,SS304,SS316,Carbon Steel
4.Nut:brass
5.Hanger Pin:Stainless steel
6.Hanger:ASTM A216B
7.Disc:ASTM A126B
8.Seat:2Cr13,SS304,STL

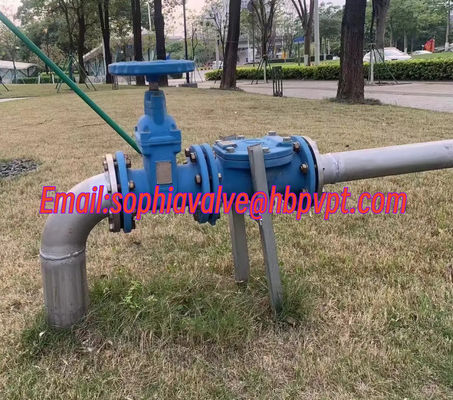

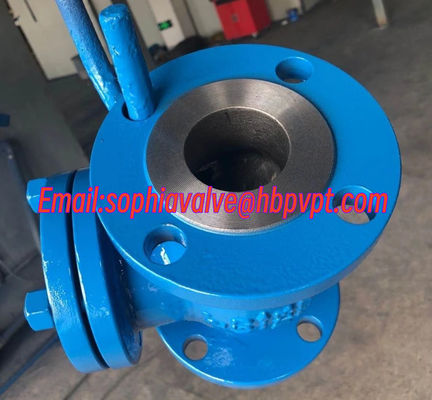

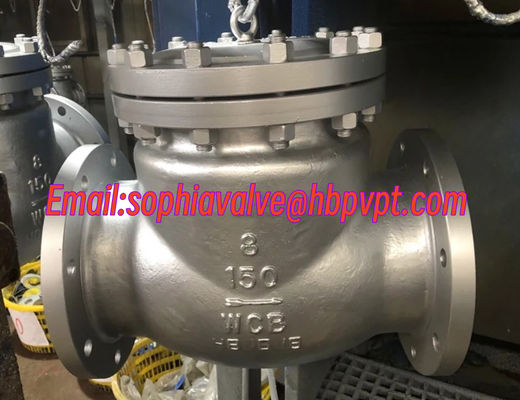

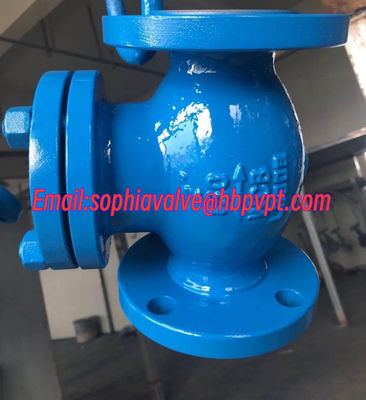

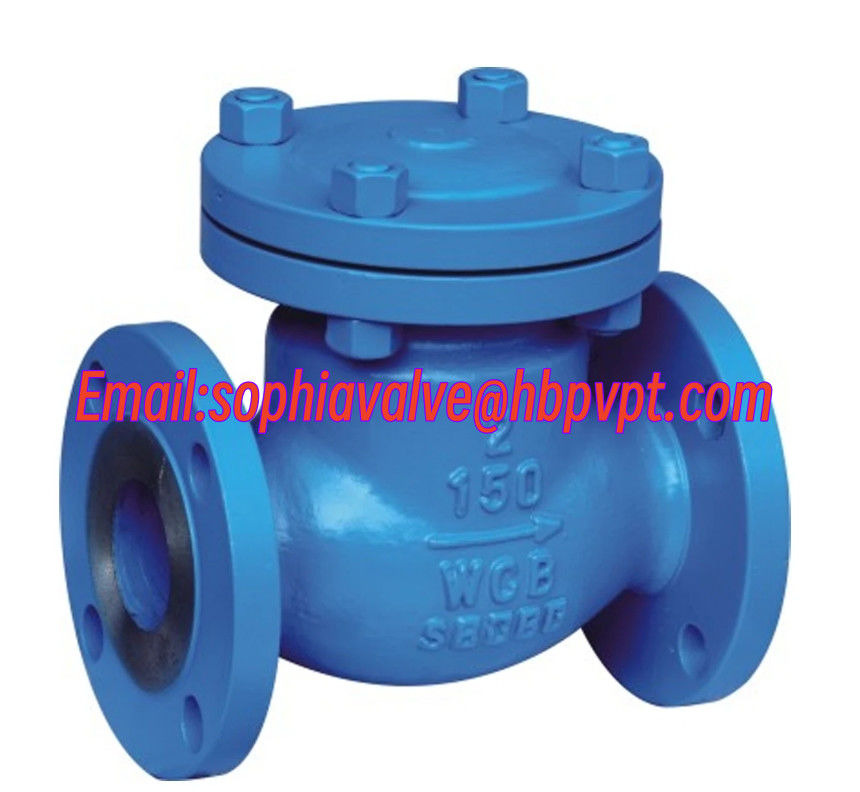

Product show
