| Place of Origin: | China |
| Brand Name: | PVPT |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | EXW FOB CFR CIF |
| Packaging Details: | wooden cases, pallets or as per customer request |
| Delivery Time: | 30 days after receiving down payment |
| Payment Terms: | L/C, T/T, Western Union |
| Pressure: | 5K 10K |
|---|
JIS 5K 10K lever operation ductile iron butterfly valve
According to the connection type,butterfly valves can be divided into the flange and the wafer.
JIS 5K 10K lever operation ductile iron butterfly valve Size
1.Production Size:1 1/2"~40".DN40~DN1000
JIS 5K 10K lever operation ductile iron butterfly valve standard:
1.Design Standard:KS B2813
2.Face to Face:KS B2306
3.Flange Standard:KS B1511
4.Testing Standard:KS B2304
JIS 5K 10K lever operation ductile iron butterfly valve Material of parts:
1.Body:FC20,FC25,FCD40,FCD50
2.Stem:2Cr13/SUS304/SUS316/Carbon Steel
3.Disc: FCD40,FCD50,SUS304,SUS316
4.Gasket:NBR,PTFE,EPDM,Teflon
5.Seat:NBR,EPDM,PTFE,RPTFE
6.Packing:NBR,PTFE,EPDM,Teflon
7.Handle: FCD40,FCD50/ malleable iron

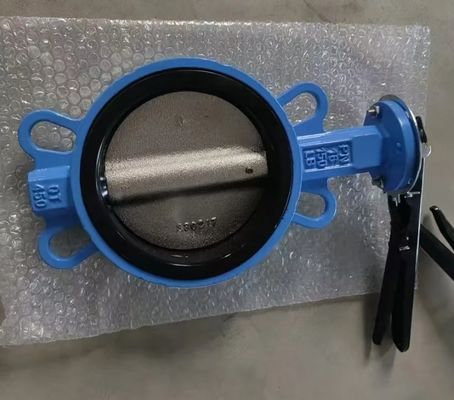

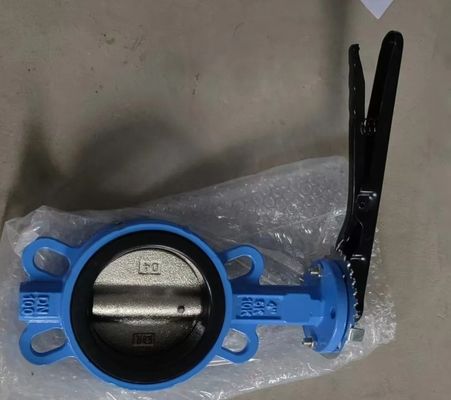

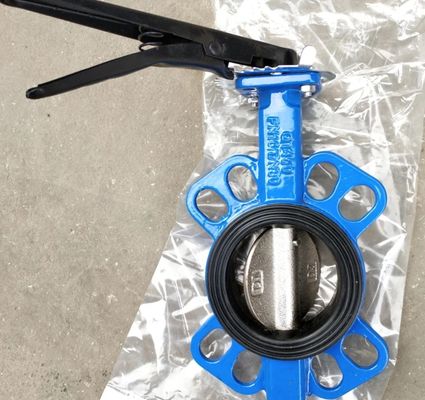

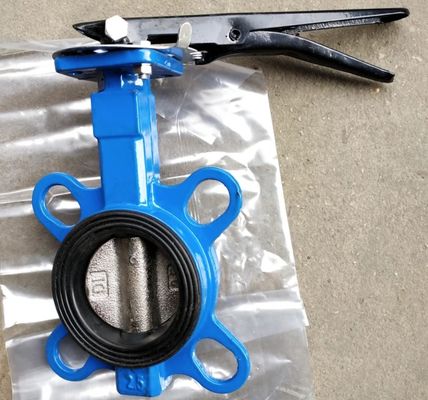

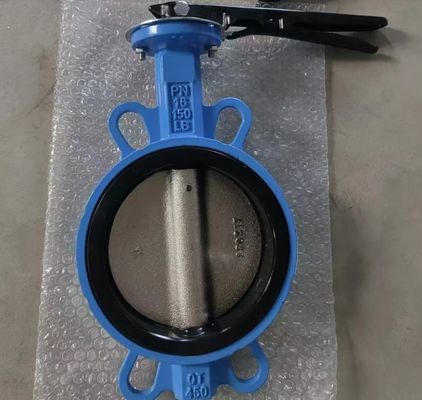

Product show
