| Place of Origin: | China |
| Brand Name: | PVPT |
| Model Number: | D71X |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | EXW FOB CFR CIF |
| Packaging Details: | wooden cases, pallets or as per customer request |
| Delivery Time: | 30 days after receiving down payment |
| Payment Terms: | L/C, T/T, Western Union |
| Size: | DN100 | Pressure: | 5K 10K |
|---|

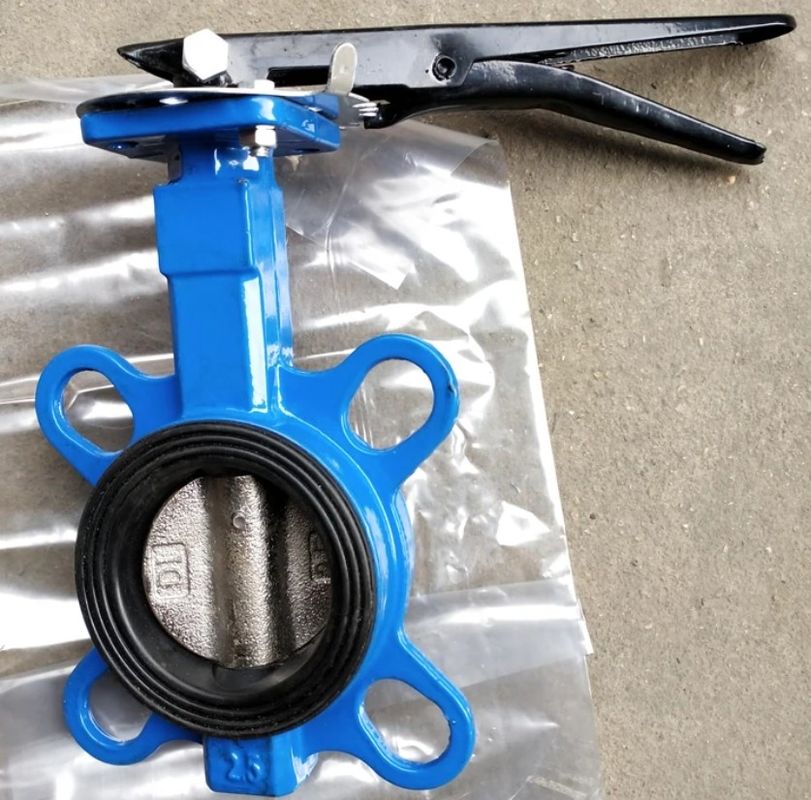

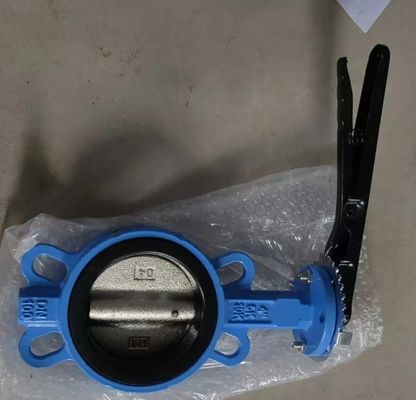

D71X DN100 5K 10K resilient seal cast iron wafer type butterfly valve
According to the connection difference, there are flanged butterfly valves and wafer type butterfly valves.
These butterfly valves are manufactured according to JIS standard.
cast iron wafer type butterfly valve range:
1.Production Size:1 1/2"~40".DN40~DN1000
2.Pressure:JIS 5K,JIS 10K,JIS 16K
cast iron wafer type butterfly valve standard:
1.Design Standard:KS B2813
2.Face to Face:KS B2306
3.Flange Standard:KS B1511
4.Testing Standard:KS B2304
cast iron wafer type butterfly valve Material of parts:
1.Body:FC20,FC25,FCD40,FCD50
2.Stem:2Cr13/SUS304/SUS316/Carbon Steel
3.Disc: FCD40,FCD50,SUS304,SUS316
4.Gasket:NBR,PTFE,EPDM,Teflon
5.Seat:NBR,EPDM,PTFE,RPTFE
6.Packing:NBR,PTFE,EPDM,Teflon
7.Handle: FCD40,FCD50/ malleable iron

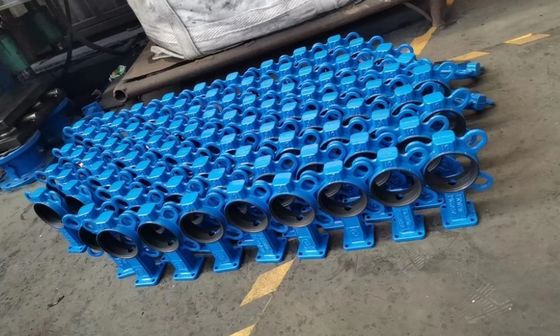

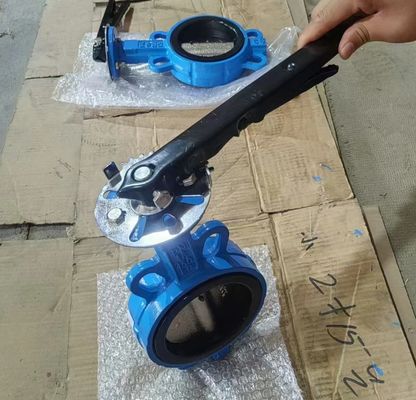

Product show
