| Place of Origin: | China |
| Brand Name: | PVPT |
| Model Number: | Q41F |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | EXW FOB CFR CIF |
| Packaging Details: | wooden cases, pallets or as per customer request |
| Delivery Time: | 30 days after receiving down payment |
| Payment Terms: | L/C, T/T, Western Union |
| Body Material: | CF8 | Pressure: | 10K |
|---|
Q41F Stainless steel CF8 2-PC JIS10K ball valve
Ball valves can be divided into one-pc, 2-pc and 3-pc type.
The opening and closing (ball) is driven by the stem and revolves around the axis .
Specifications
1.Production Size:1/2"~10".DN15~DN250
2.Pressure:10K
2-PC JIS10K ball valve standard
1.Design Standard:JIS B2001
2.Face to Face:JIS B2002
3.Flange Standard:JIS B2212
4.Testing Standard:JIS B2003
2-PC JIS10K ball valve main material of parts:
1.Body:SCS13A/SCS14A
2.Washer:PTFE
3.Stem:2Cr13/SS304/SS316/Carbon Steel
4.Ball:SUS304,SUS316
5.Gasket:PTFE
6.Seat:PTFE,RPTFE
7.Stem Packing:PTFE
8.Handle:Carbon Steel

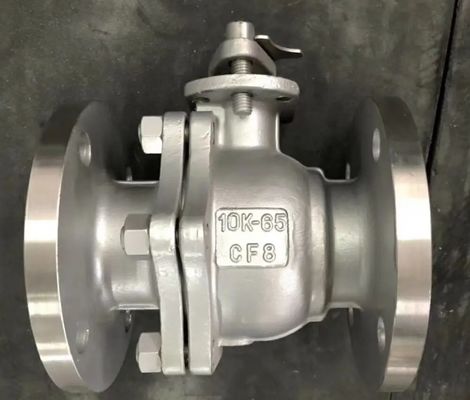

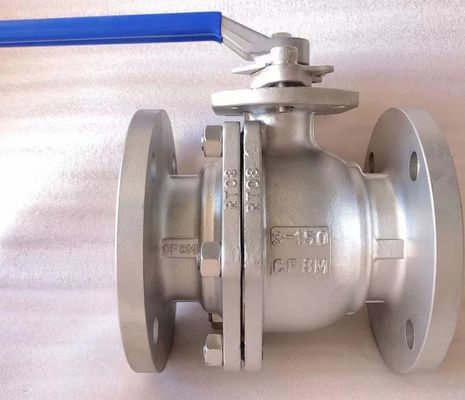

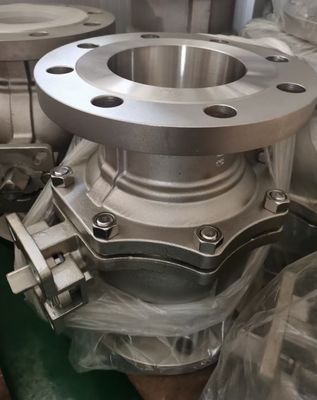

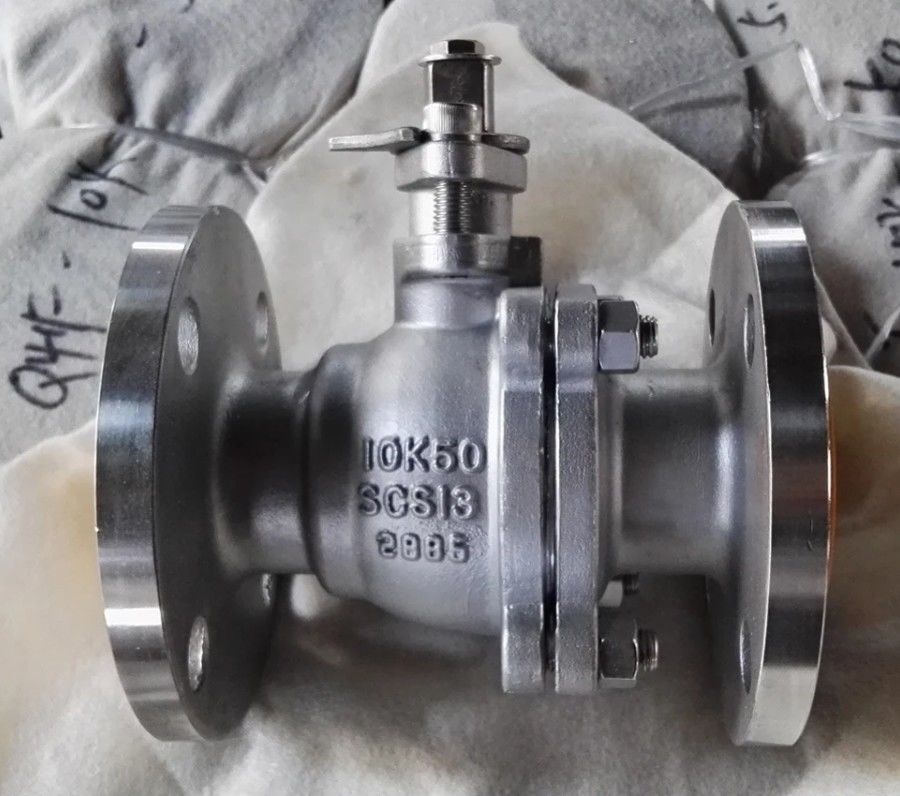

Product show
