| Place of Origin: | China |
| Brand Name: | PVPT |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | EXW FOB CFR CIF |
| Packaging Details: | wooden cases, pallets or as per customer request |
| Delivery Time: | 30 days after receiving down payment |
| Payment Terms: | L/C, T/T, Western Union |
| Design Standard: | JIS B2031 | Body Material: | FC200 |
|---|
JIS B2031 FC200 cast iron PTFE seal ball valve exporter from China
Ball valve is widely used in petroleum refining, long-distance pipeline, chemical industry, paper, pharmaceutical, water conservancy, electric power, municipal, steel and other industries.
The opening and closing (ball) is driven by the stem and revolves around the axis .
Specifications
JIS B2031 Cast Iron Ball Valve range:
1.Production Size:1/2"~10".DN15~DN250
2.Pressure:10K
JIS B2031 Cast Iron Ball Valve standard
1.Design Standard:JIS B2031
2.Face to Face:JIS B2002 DN15-DN100(6) DN125-DN200(39)
3.Flange Standard:JIS B2212
4.Testing Standard:JIS B2003
JIS B2031 Cast Iron Ball Valve main material of parts:
1.Body:FC200/FCD-S
2.Bonnet:FC200/FCD-S
3.Stem:2Cr13/SUS304/SUS316/Carbon Steel
4.Ball:SUS304,SUS316
5.Gasket:PTFE
6.Seat:PTFE,RPTFE
7.Stem Packing:PTFE
8.Handle:FCD450

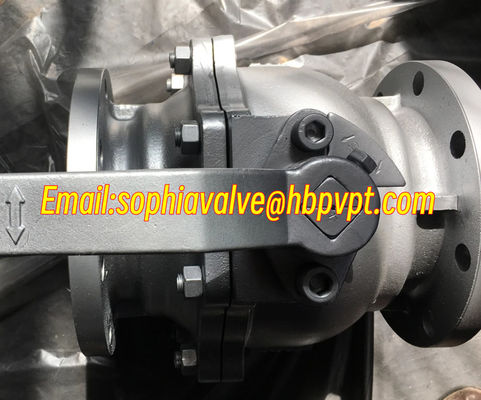

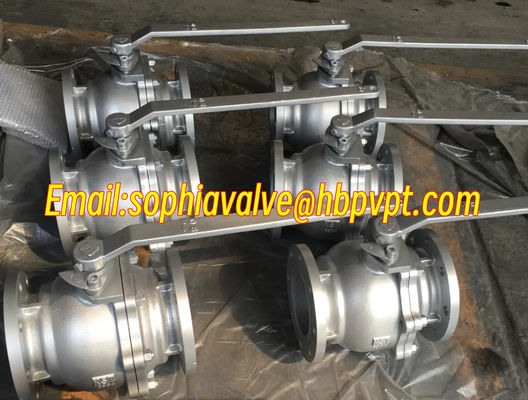

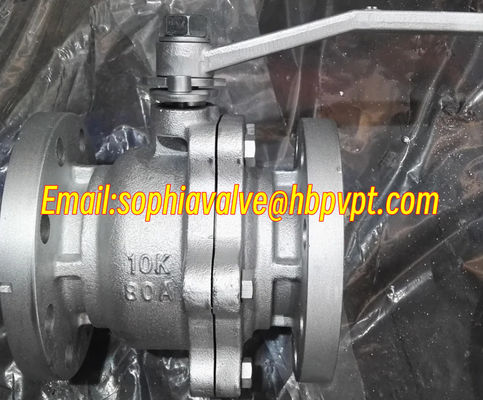

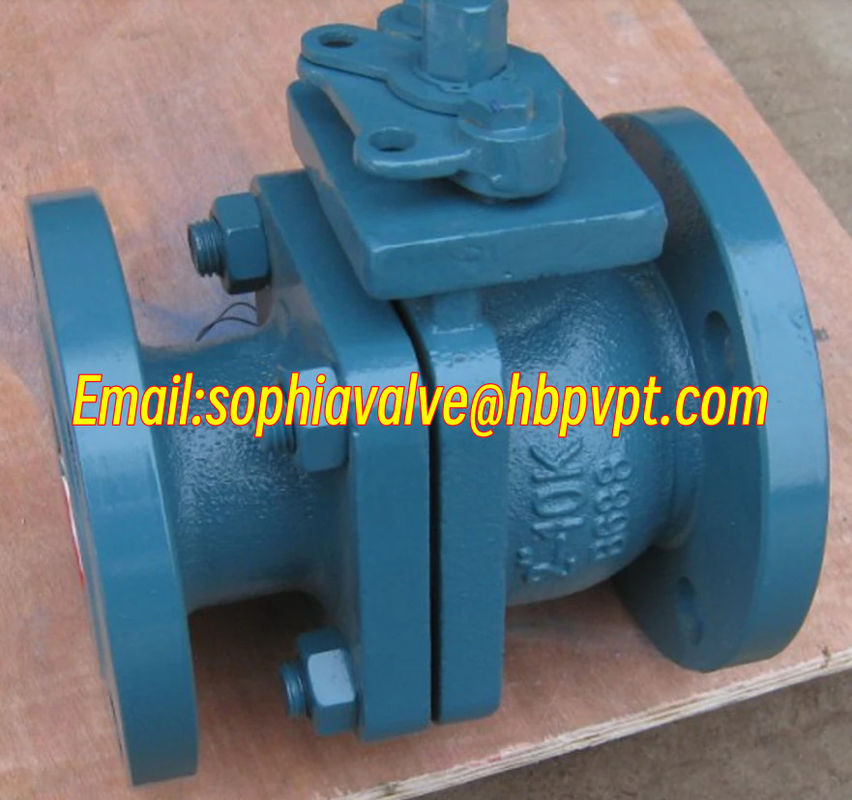

Product show
