| Place of Origin: | China |
| Brand Name: | PVPT |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Packaging Details: | wooden cases, pallets or as per customer request |
| Delivery Time: | 30 days after receiving down payment |
| Payment Terms: | L/C, T/T, Western Union |
| Body Material: | GG25 | Pressure: | PN16 |
|---|---|---|---|
| Manufacture Standard: | DIN 3356 |
GG25 PN16 DIN bellows globe valve with competitive prices made in China
The bellows globe valve comply with DIN3356 standard.
Our valves sell well at home and abroad.
If any requirement, pls don't hesitate to contact me, thanks.
DIN bellows globe valve can be used to control the flow of various types of fluid, such as air, water, steam, various corrosive media, mud, oil, liquid metal and radioactive medium.
DIN Globe Valve range:
1.Production Size:1/2"~10".DN15~DN250
2.Pressure:PN16
DIN Globe Valve standard:
1.Design Standard:DIN 3356
2.Face to Face:DIN 3202 F1
3.Flange Standard:DIN 2533 PN16
4.Testing Standard:ISO 5208
DIN Globe Valve Material of parts:
1.Body:GG25
2.Bonnet:GG25
3.Stem:CS/2Cr13,SS304,SS316,Carbon Steel
4.Stem Nut:brass,Ductile iron
5.Disc:C.S/GG25
6.Seat:ASTM B62 C83600,2Cr13,Brass
7.Hand wheel:ASTM A536 65-45-12
8.Packing:Graphite

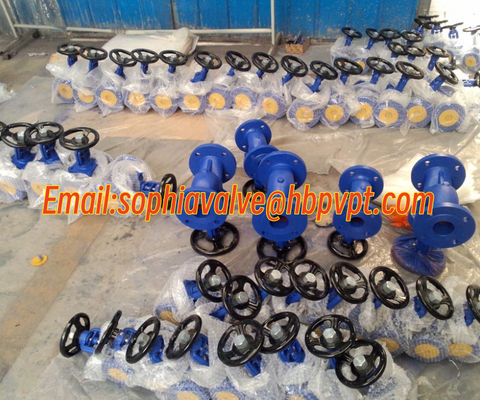

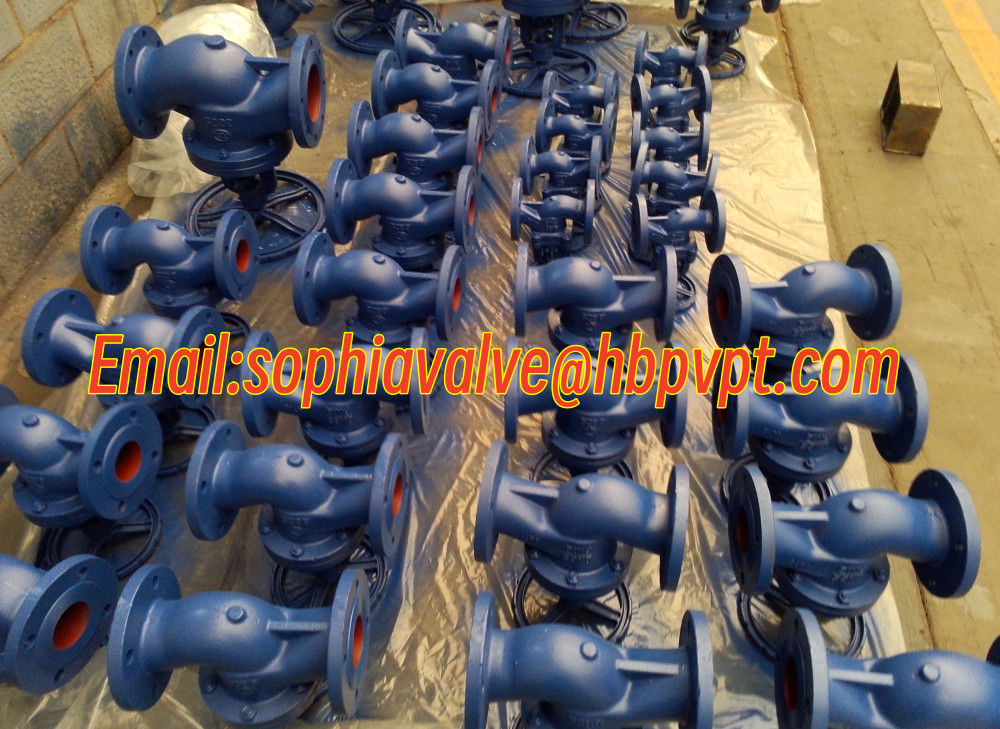

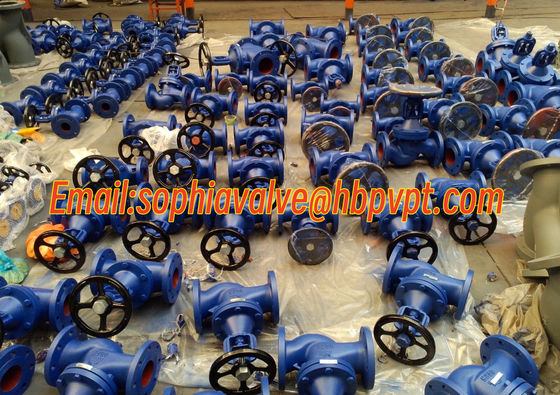

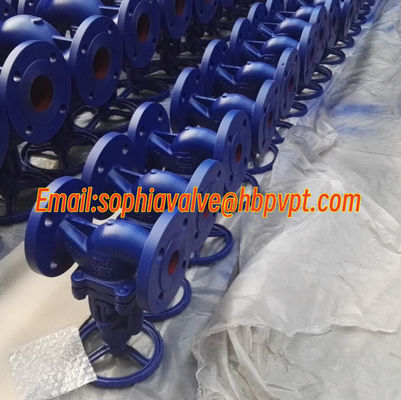

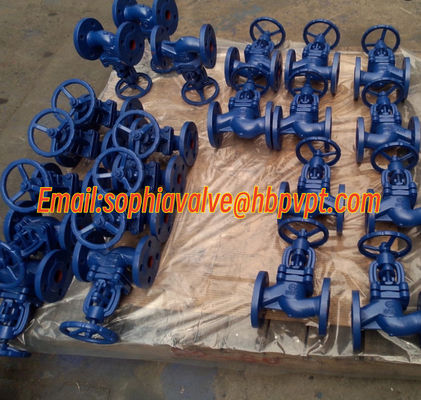

Product show
