| Place of Origin: | China |
| Brand Name: | PVPT |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | EXW FOB CFR CIF |
| Packaging Details: | wooden cases, pallets or as per customer request |
| Delivery Time: | 30 days after receiving down payment |
| Payment Terms: | L/C, T/T, Western Union |
| Size: | DN50 DN100 DN200 | Body Material: | GS-C25 |
|---|---|---|---|
| Pressure: | PN16 PN40 |
DN50 DN100 DN200 GS-C25 PN16 PN40 bellows globe valve with blue color
The application medium of bellows globe valve is water, oil, gas etc.
Specifications for bellows globe valve
1.Production Size: DN50 DN100 DN200
2.Pressure: PN16/40
globe valve Standard:
1.Design Standard: DIN 3356.
2.Face to Face: DIN 3202 F1.
3.Flange Standard: DIN 2533 PN16.
4.Testing Standard: ISO 5208.
globe valve Material of Parts:
1.Body: GS-CS25.
2.Bonnet: GS-CS25.
3.Stem: 2Cr13, SS304, SS316, carbon steel.
4.Stem Nut: brass, ductile iron.
5.Bellows: SS304.
6.Disc: GS-CS25.
7.Seat: ASTM B62 C83600, 2Cr13, Brass.
8.Hand wheel: ASTM A536 65-45-12.
9.Packing: Graphite.
Product show

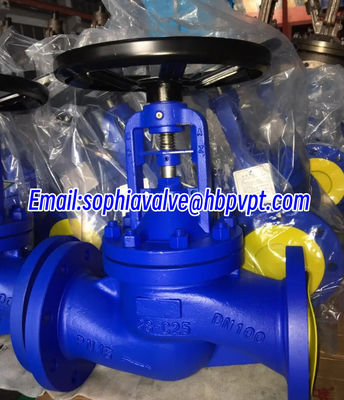

Size:DN50, Body material:GS-C25, Pressure:PN40

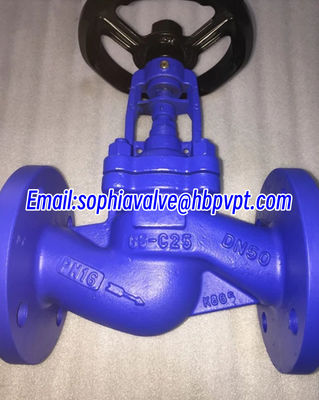

Size:DN50, Body material:GS-C25, Pressure:PN16

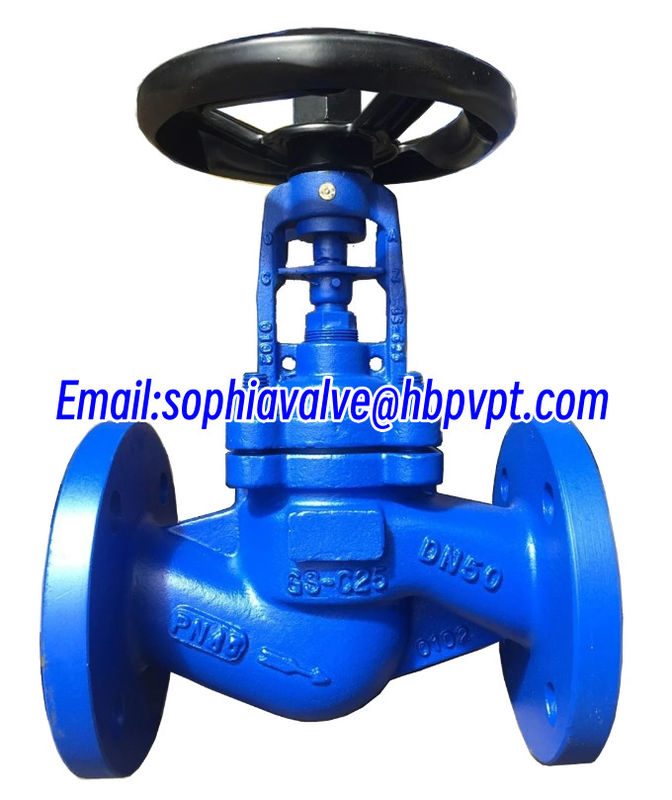

Size:DN50, Body material:GS-C25, Pressure:PN40

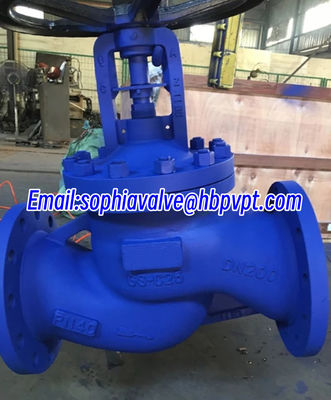

Size:DN200, Body material:GS-C25, Pressure:PN40

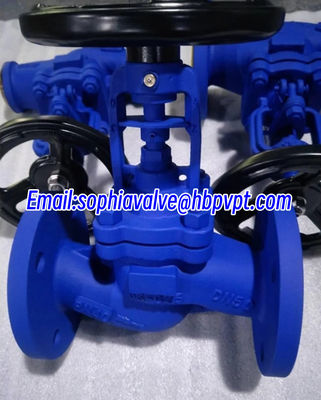

Size:DN100, Body material:GS-C25, Pressure:PN16
