| Place of Origin: | China |
| Brand Name: | PVPT |
| Minimum Order Quantity: | 10 pcs |
|---|---|
| Price: | EXW FOB CFR CIF |
| Packaging Details: | wooden case, pallet or as per customer request |
| Delivery Time: | 30 days after receiving the down payment |
| Payment Terms: | L/C, T/T |
| Body: | GS-C25 | Pressure: | PN40 |
|---|
DIN globe valve GS-C25 PN40 handwheel operated
Product specification:
| 1.Size: 1/2”-12” DN15-DN300mm |
| 2.Pressure:PN10,PN16,PN25,PN40 |
| 3.Design standard:DIN EN13709:2003 |
| 4.Face to face:DIN EN558-1:1995 |
| 5.Flange standard:DIN EN1092-1:2002 |
| 6.Test standard:DIN EN12266:2003 |
Main materials of parts:
| Body | GS-C25 |
| Bonnet | GS-C25 |
| Stem | 2Cr13/SS304/SS316/Carbon Steel |
| Stem nut | Ductile Iron/Brass |
| Seat | 13Cr/SS304 |
| Disc | GS-C25 |

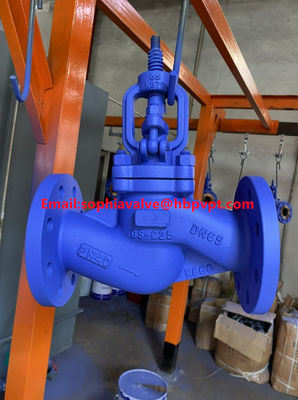

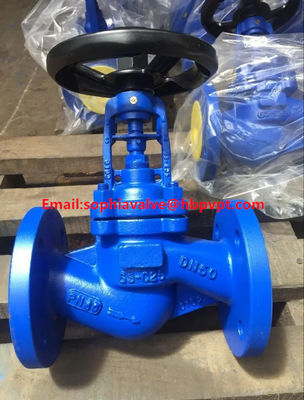

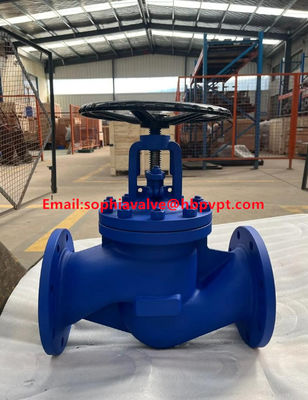

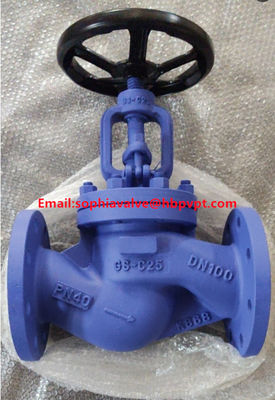

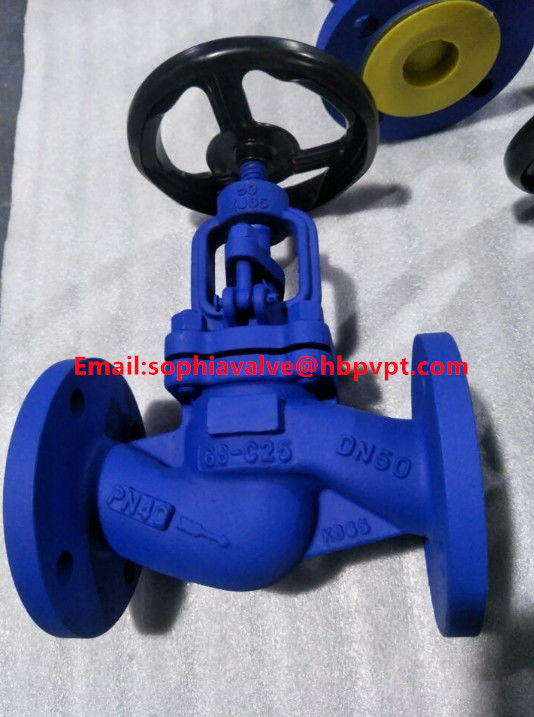

Product show
