DIN3357 GG25 cast iron ball valve
Specifications
1.Production Size: 2"~8". DN50~DN200
2.Pressure: PN16
Standard
1.Design Standard: DIN 3357, EN12516.
2.Face to Face: DIN 3202, EN558-1, DN15-DN150(F4), DN200(F5).
3.Flange Standard: DIN2533, EN1092-2.
4.Testing Standard: EN12266, DIN3230, ISO5208.
Materials of parts
1.Body: GG25, GGG40.
2.Bonnet: GG25, GGG40.
3.Stem: 2Cr13/SS304/SS316/carbon steel.
4.Ball: SS304, SS316.
5.Gasket: PTFE.
6.Seat: PTFE, RPTFE
7.Stem Packing: PTFE.
8.Handle: ASTM A536 65-45-12.

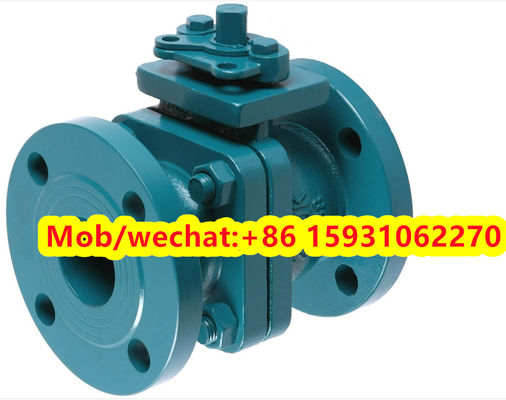

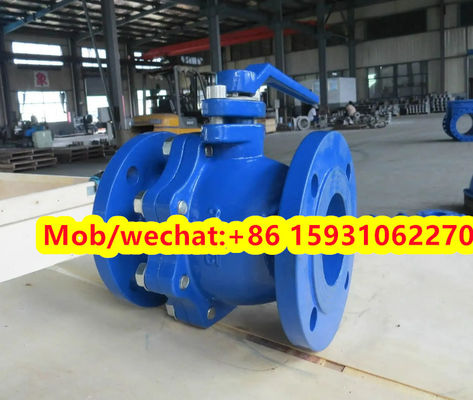

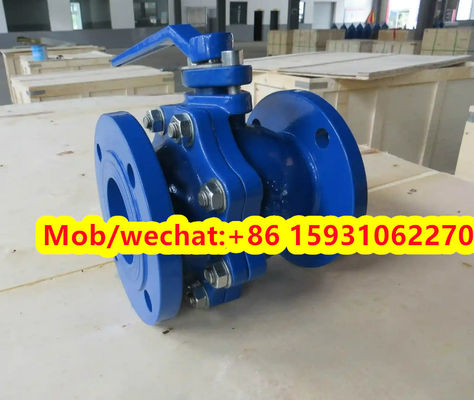

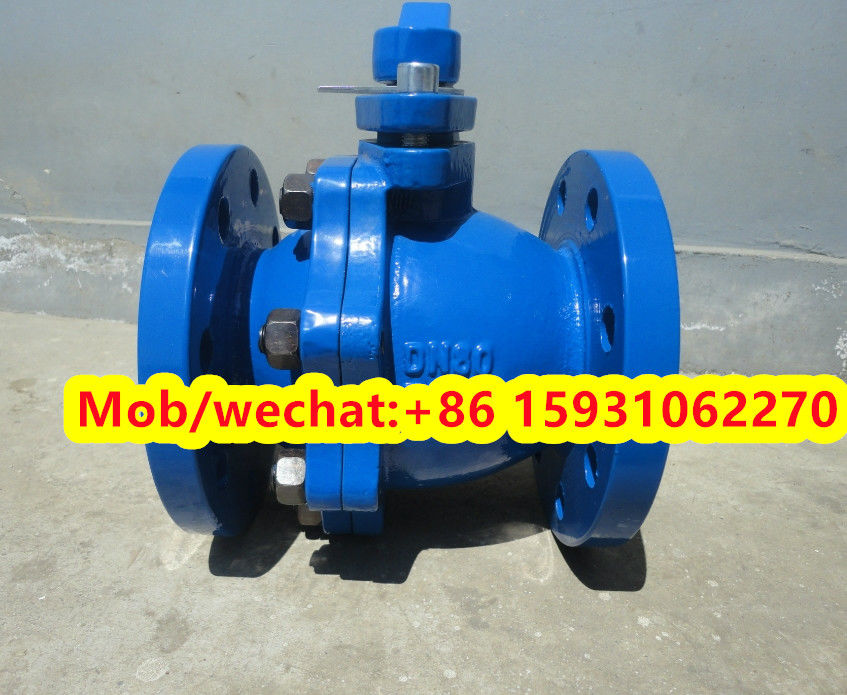

Product show
