| Place of Origin: | China |
| Brand Name: | PVPT |
| Minimum Order Quantity: | 10 pcs |
|---|---|
| Price: | EXW FOB CFR CIF |
| Packaging Details: | wooden case, pallet or as per customer request |
| Delivery Time: | 30 days after receiving the down payment |
| Payment Terms: | L/C, T/T |
| Size: | DN80 | Pressure: | PN16 |
|---|---|---|---|
| Body: | GG25 |
DN80 PN16 GG25 DIN globe valve
Product specifications
| Size | DN80 | |
| Pressure | PN16 | |
| Design standard | DIN EN13709:2003 | |
| Face to face | DIN EN558-1:1995 | |
| Flange standard | DIN EN1092-1:2002 | |
| Testing standard | DIN EN12266:2003 | |
| Materials of parts | ||
| Body | GS-C25 | |
| Bonnet | GS-C25 | |
| Stem | 2Cr13/SS304/SS316/Carbon Steel | |
| Stem nut | Ductile Iron/Brass | |
| Seat | 13Cr/SS304 | |
| Disc | GS-C25 | |
| Gasket | S.S+Graphite | |
| Packing | Graphite | |
| Bellows | SS304/SS316 | |
| 波纹管盖 | SS304/SS316 | |
| Handwheel | Cast Iron | |

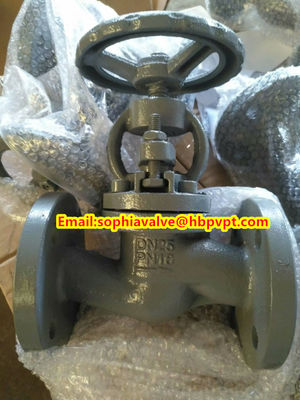

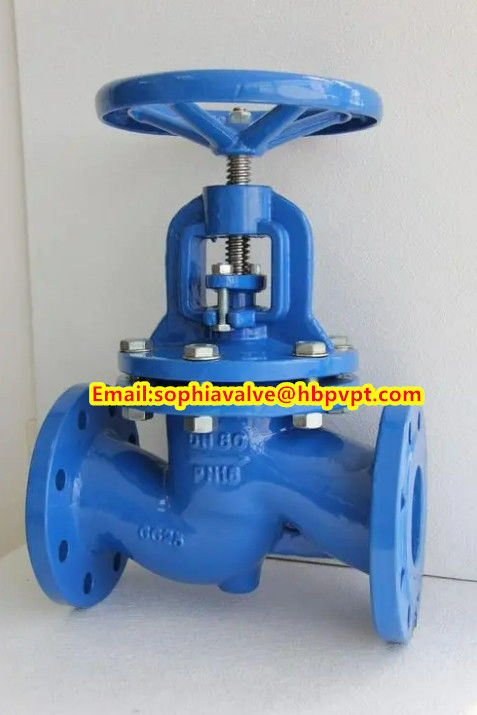

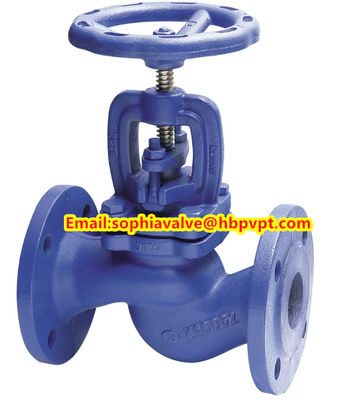

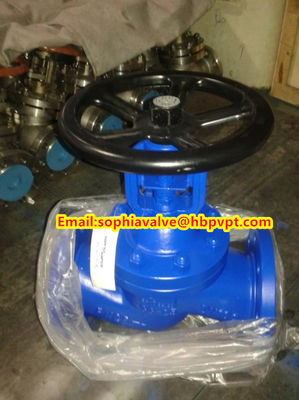

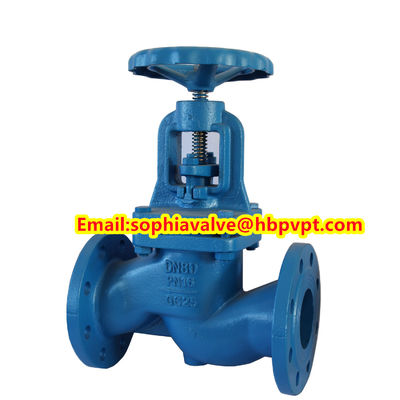

Product pictures
