| Place of Origin: | China |
| Brand Name: | PVPT |
| Minimum Order Quantity: | 10 pcs |
|---|---|
| Price: | EXW FOB CFR CIF |
| Packaging Details: | wooden case, pallet or as per customer request |
| Delivery Time: | 30 days after receiving the down payment |
| Payment Terms: | L/C, T/T |
150LB CF8M Stainless steel flange end globe valve
Range:
1.Production Size: 1/2"~24".DN15~DN600.
2.Pressure: 150LB, 300LB, 600LB, 900LB.
Standard:
1.Design Standard: API600,API6D,BS1873.
2.Face to Face: ASME B16.34.
3.Flange Standard: ASME B16.5.
4.Testing Standard: API 598.
Material of Parts:
1.Body: CF3, CF3M, CF8, CF8M.
2.Bonnet: CF3, CF3M, CF8, CF8M.
3.Stem: 2Cr13, SS304, SS316, carbon steel.
4.Stem Nut: brass, ductile iron.
5.Disc: CF3, CF3M, CF8, CF8M.
6.Seat: CF3, CF3M, CF8, CF8M.
7.Handwheel: ASTM A536 65-45-12.
8.Bonnet Nut: ASTM A194 2H.
9.Bonnet Bolt: ASTM A193 B7.
10.Packing: Graphite.

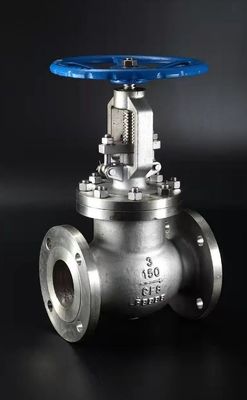

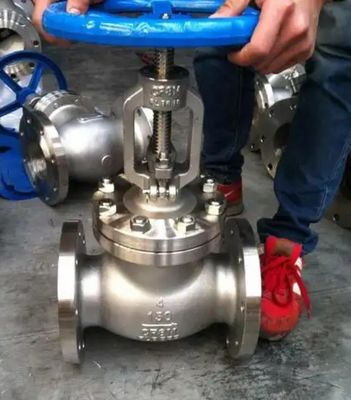

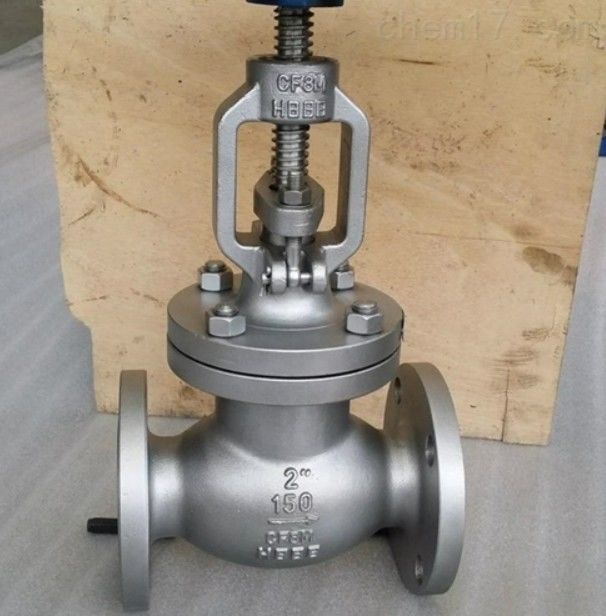

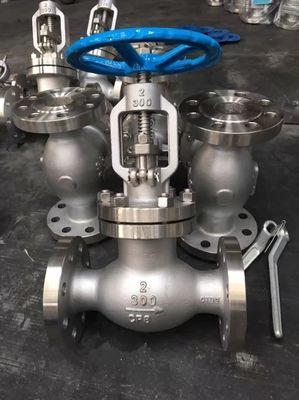

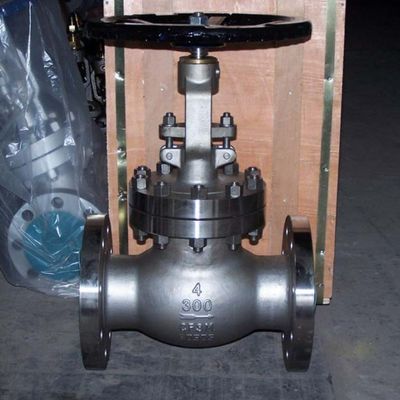

Product pictures
