| Place of Origin: | China |
| Brand Name: | PVPT |
| Minimum Order Quantity: | 10 pcs |
|---|---|
| Price: | EXW FOB CFR CIF |
| Packaging Details: | wooden case, pallet or as per customer request |
| Delivery Time: | 30 days after receiving the down payment |
| Payment Terms: | L/C, T/T |

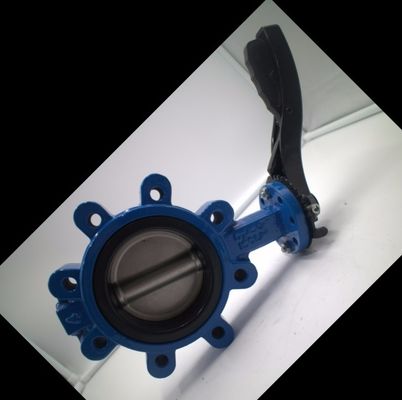

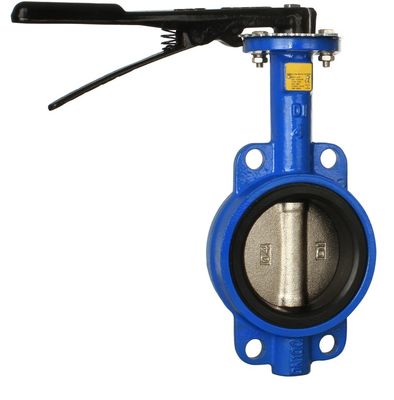

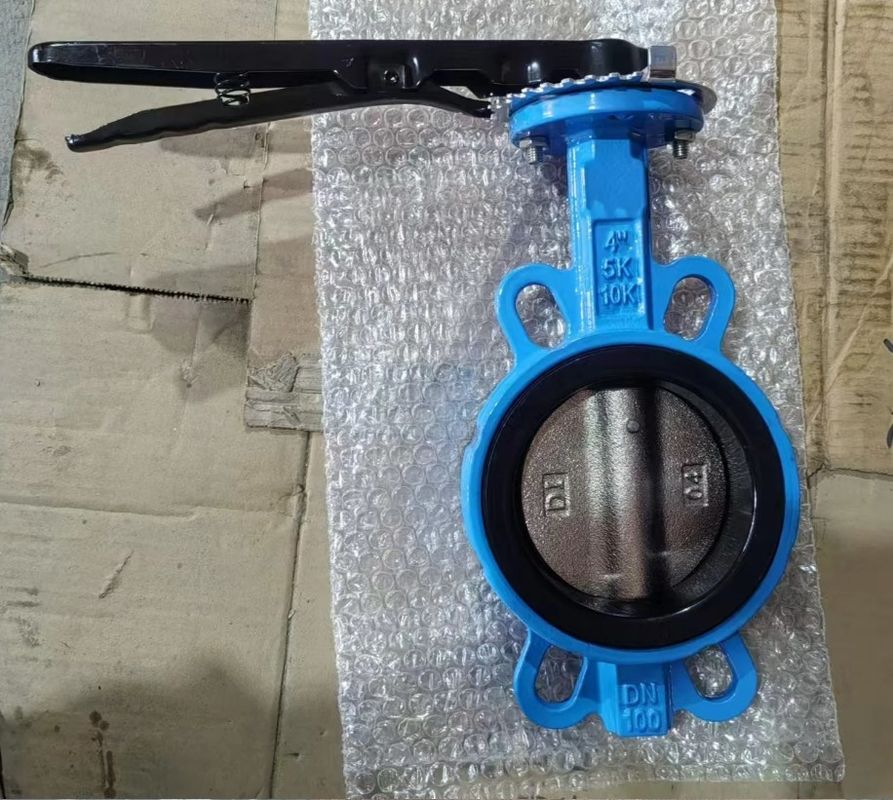

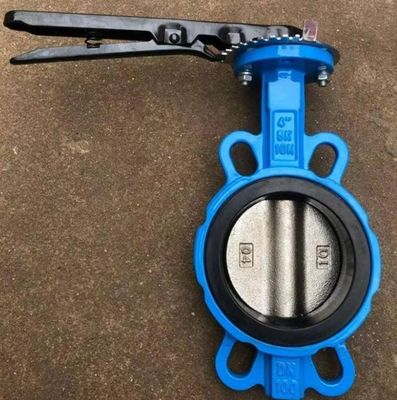

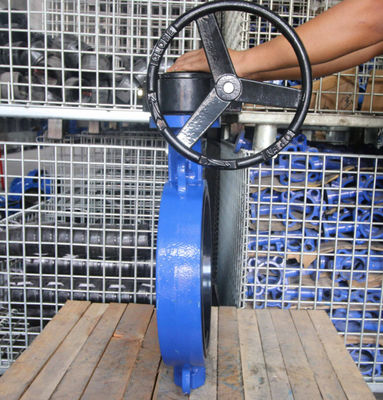

JIS 5K 10K cast iron butterfly valve
Specifications
1.Production Size:1 1/2"~40".DN40~DN1000
2.Pressure:JIS 5K,JIS 10K,JIS 16K
JIS butterfly Valve standard:
1.Design Standard:KS B2813
2.Face to Face:KS B2306
3.Flange Standard:KS B1511
4.Testing Standard:KS B2304
JIS butterfly Valve Material of parts:
1.Body:FC20,FC25,FCD40,FCD50
2.Stem:2Cr13/SUS304/SUS316/Carbon Steel
3.Disc: FCD40,FCD50,SUS304,SUS316
4.Gasket:NBR,PTFE,EPDM,Teflon
5.Seat:NBR,EPDM,PTFE,RPTFE
6.Packing:NBR,PTFE,EPDM,Teflon
7.Handle: FCD40,FCD50/ malleable iron
Product show
