| Place of Origin: | China |
| Brand Name: | PVPT |
| Minimum Order Quantity: | 10 pcs |
|---|---|
| Price: | EXW FOB CFR CIF |
| Packaging Details: | wooden case, pallet or as per customer request |
| Delivery Time: | 30 days after receiving the down payment |
| Payment Terms: | L/C, T/T, Western Union |
| Body: | FC200 | Pressure: | 10K |
|---|

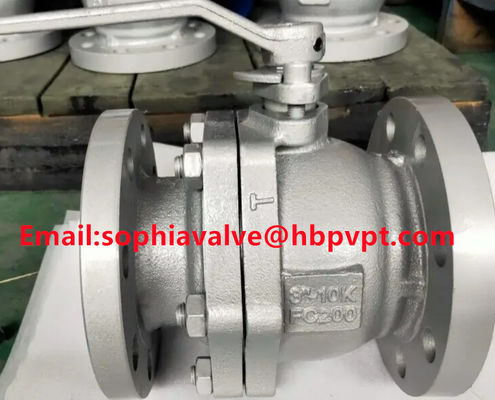

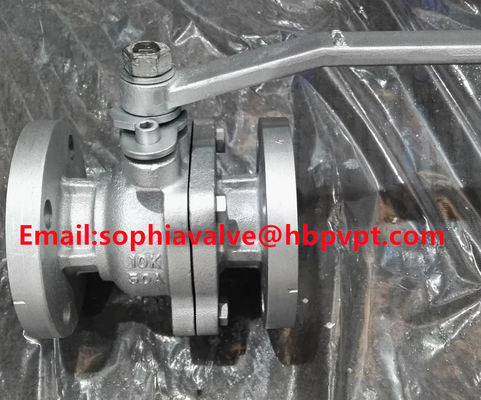

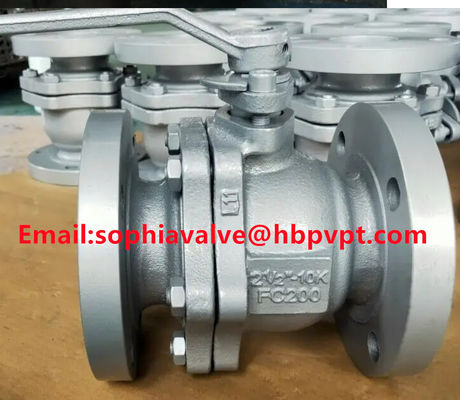

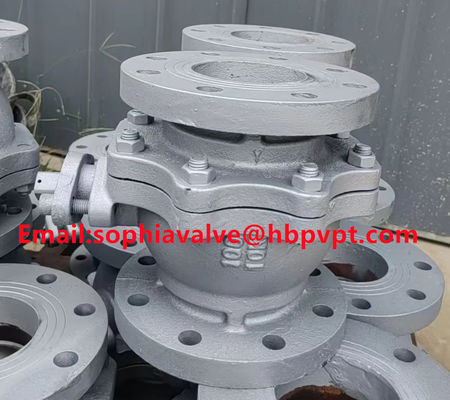

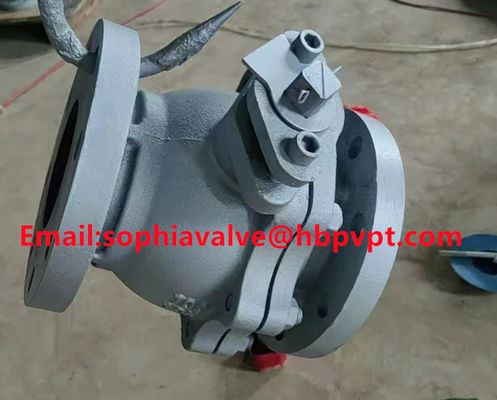

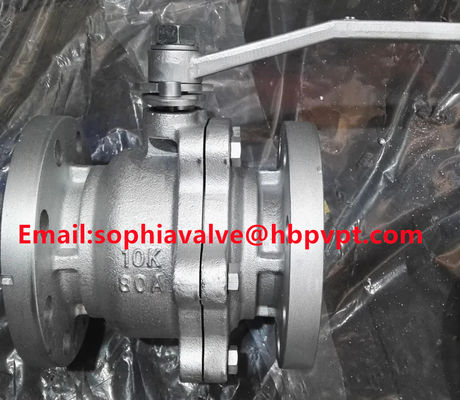

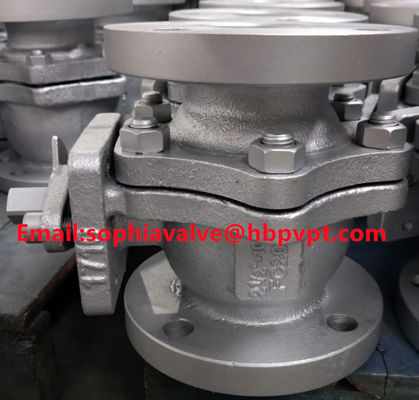

FC200 JIS standard 10k cast iron ball valve
Specifications
1.Production Size:1/2"~10".DN15~DN250
2.Pressure:10K
Standard
1.Design Standard:JIS B2031
2.Face to Face:JIS B2002 DN15-DN100(6) DN125-DN200(39)
3.Flange Standard:JIS B2212
4.Testing Standard:JIS B2003
Main material of parts:
1.Body:FC200/FCD-S
2.Bonnet:FC200/FCD-S
3.Stem:2Cr13/SUS304/SUS316/Carbon Steel
4.Ball:SUS304,SUS316
5.Gasket:PTFE
6.Seat:PTFE,RPTFE
7.Stem Packing:PTFE
8.Handle:FCD450
Product show
