| Place of Origin: | China |
| Brand Name: | PVPT |
| Minimum Order Quantity: | 10 pcs |
|---|---|
| Price: | EXW FOB CFR CIF |
| Packaging Details: | wooden case, pallet or as per customer request |
| Delivery Time: | 30 days after receiving the down payment |
| Payment Terms: | L/C, T/T, Western Union |
| Material: | Cast Iron | Design Standard: | DIN3357 |
|---|
DIN3357 floating ball valve cast iron flanged ball valve
Specifications
| Size | DN50-DN250 | |
| Pressure | PN10/16 | |
| Design standard | DIN 3357 | |
| Face to face | DIN 3202,EN558-1 DN15-150(F4),DN200(F5) | |
| Flange standard | EN 1092-2 | |
| Test standard | EN12266,ISO 5208 | |
| Main materials of parts | ||
| Body | GG25/GGG50/EN-GJL-250 | |
| Bonnet | GG25/GGG50/EN-GJL-250 | |
| Stem | 2Cr13/SS304/SS316/Carbon Steel | |
| Seat | PTFE | |
| Disc | SS304/SS316 | |

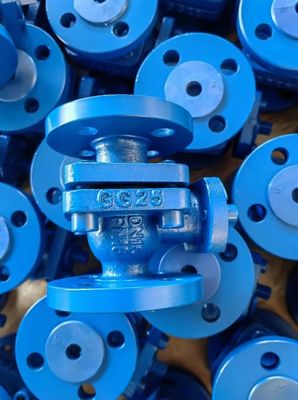

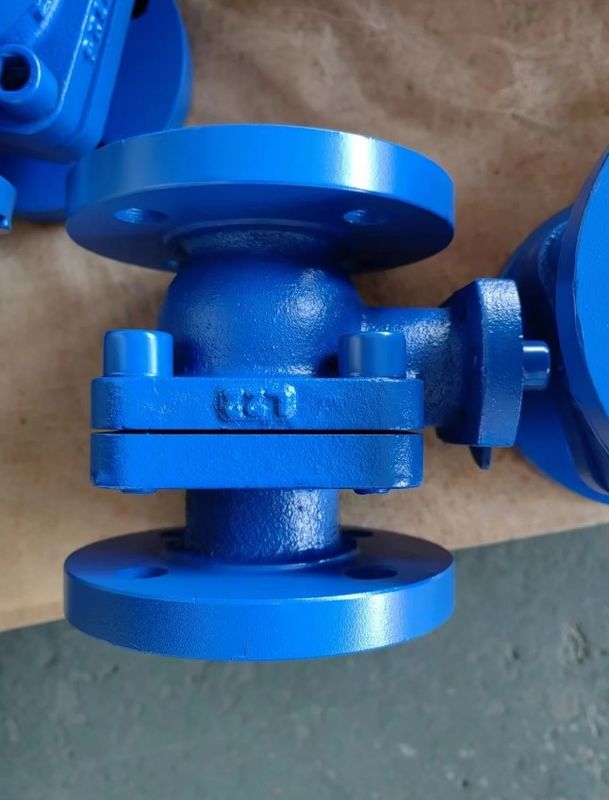

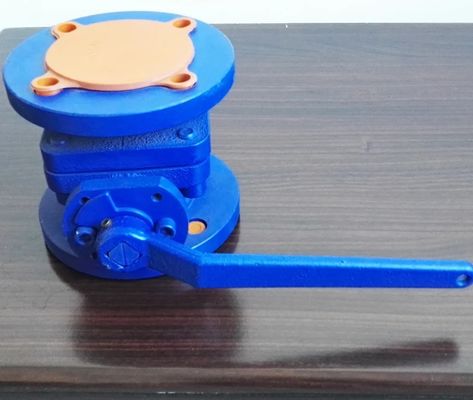

Product show
