| Place of Origin: | Xingtai, China |
| Brand Name: | PVPT |
| Minimum Order Quantity: | 10 pcs |
|---|---|
| Price: | EXW FOB CFR CIF |
| Packaging Details: | wooden case, pallet or as per customer request |
| Delivery Time: | 30 days after receiving the down payment |
| Payment Terms: | L/C, T/T, Western Union |
| Design And Manufacture Standard: | DIN3354 | Pressure: | PN10/PN16 |
|---|---|---|---|
| Body Material: | GG20 |
China GG20 cast iron DIN standard butterfly valve
Specifications
1.Production Size:1 1/2"~40".DN40~DN1000
2.Pressure:PN10,PN16
Standard:
1.Design Standard:DIN 3354
2.Face to Face:DIN2501
3.Flange Standard:DIN3202
4.Testing Standard:EN12226
Material of parts:
1.Body:GG20
2.Stem:2Cr13/SS304/SS316/Carbon Steel
3.Disc:Ductile Iron,SS304,SS316
4.Gasket:NBR,PTFE,EPDM,Teflon
5.Seat:NBR,EPDM,PTFE,RPTFE
6.Packing:NBR,PTFE,EPDM,Teflon
7.Handle:ASTM A536 65-45-12/ malleable iron

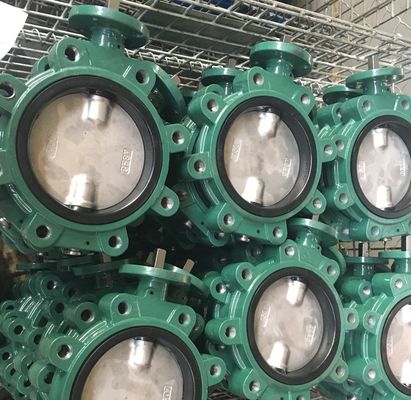

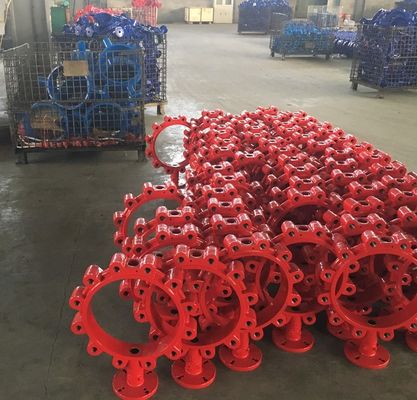

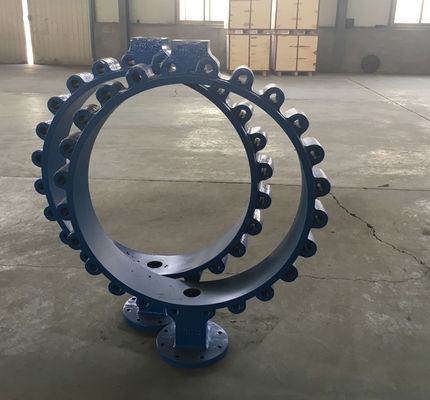

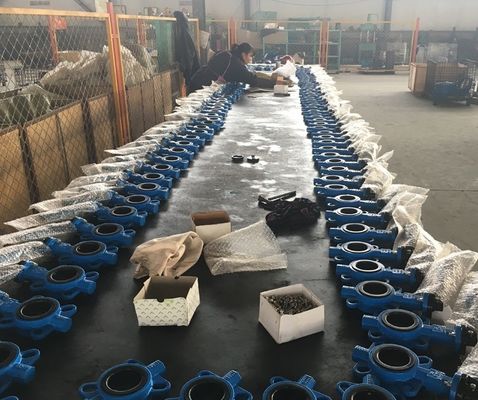

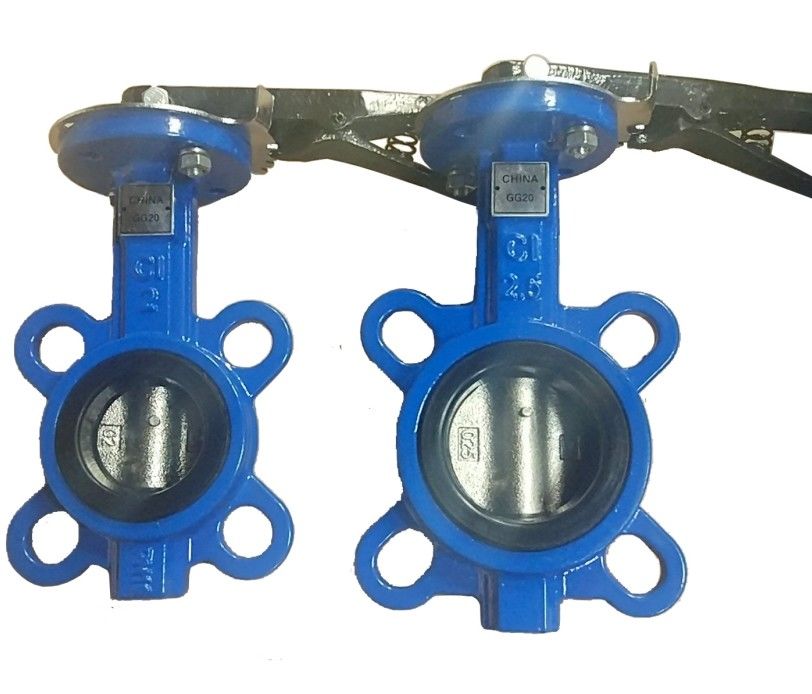

Product show
