| Place of Origin: | Xingtai, China |
| Brand Name: | PVPT |
| Minimum Order Quantity: | 10 pcs |
|---|---|
| Price: | EXW FOB CFR CIF |
| Packaging Details: | wooden case, pallet or as per customer request |
| Delivery Time: | 30 days after receiving the down payment |
| Payment Terms: | L/C, T/T, Western Union |
| Pressure: | PN16 | Body: | GG25 |
|---|
DIN bellows globe valve PN16 body GG25
Specifications
1.Production Size:1/2"~10".DN15~DN250
2.Pressure:PN10/16
DIN Bellows Globe Valve
Standard:
1.Design Standard:DIN 3356
2.Face to Face:DIN 3202 F1
3.Flange Standard:DIN 2533 PN16
4.Testing Standard:ISO 5208
DIN bellows Globe Valve
Material of parts:
1.Body:GG25/GGG50
2.Bonnet:GG25/GGG50
3.Stem:CS/2Cr13,SS304,SS316,Carbon Steel
4.Stem Nut:brass,Ductile iron
5.Disc:C.S/GG25
6.Seat:ASTM B62 C83600,2Cr13,Brass
7.Hand wheel:ASTM A536 65-45-12
8.Packing:Graphite

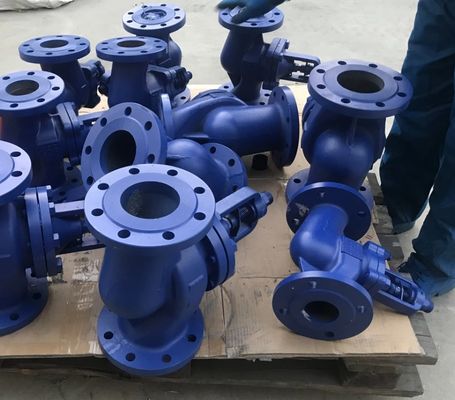

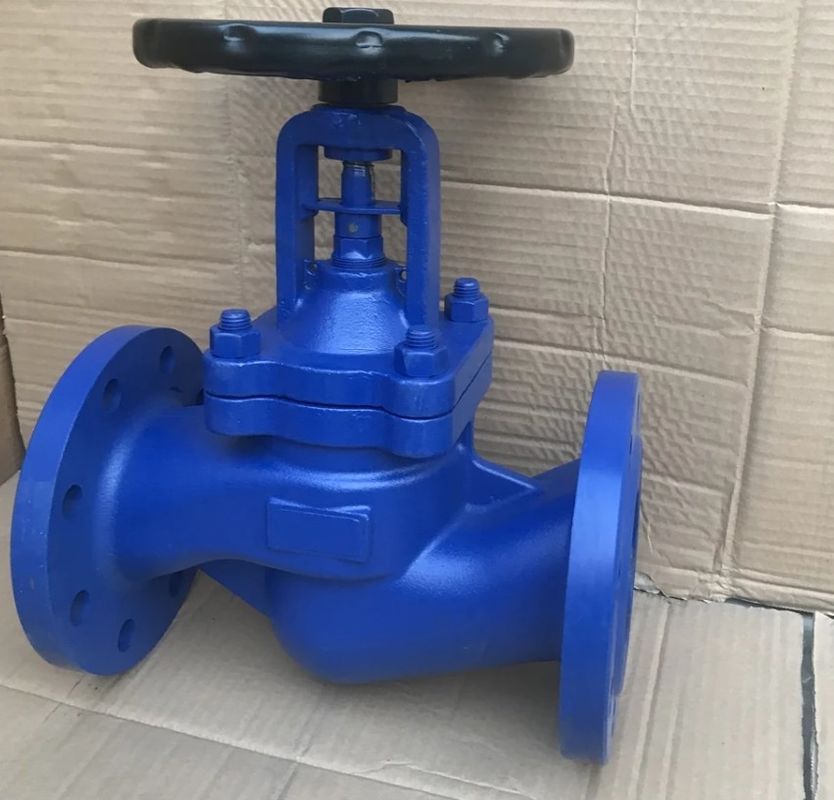

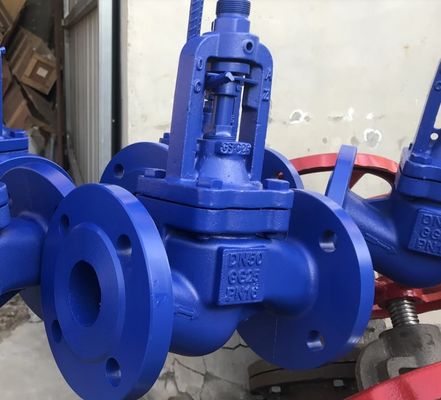

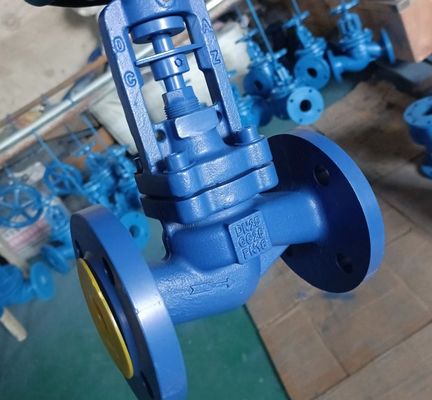

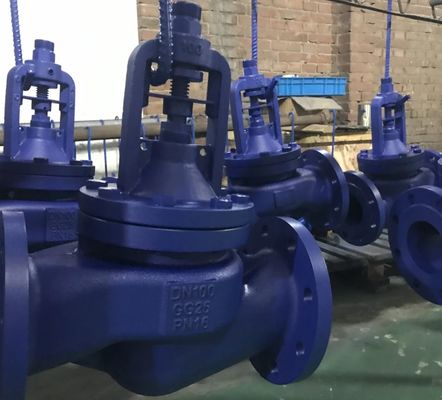

Product show
Pls note:
Our factory manufacture various types of valves, if any inquiry for valves, pls don’t hesitate to contact Sophia via Email:sophiavalve(at)hbpvpt.com
